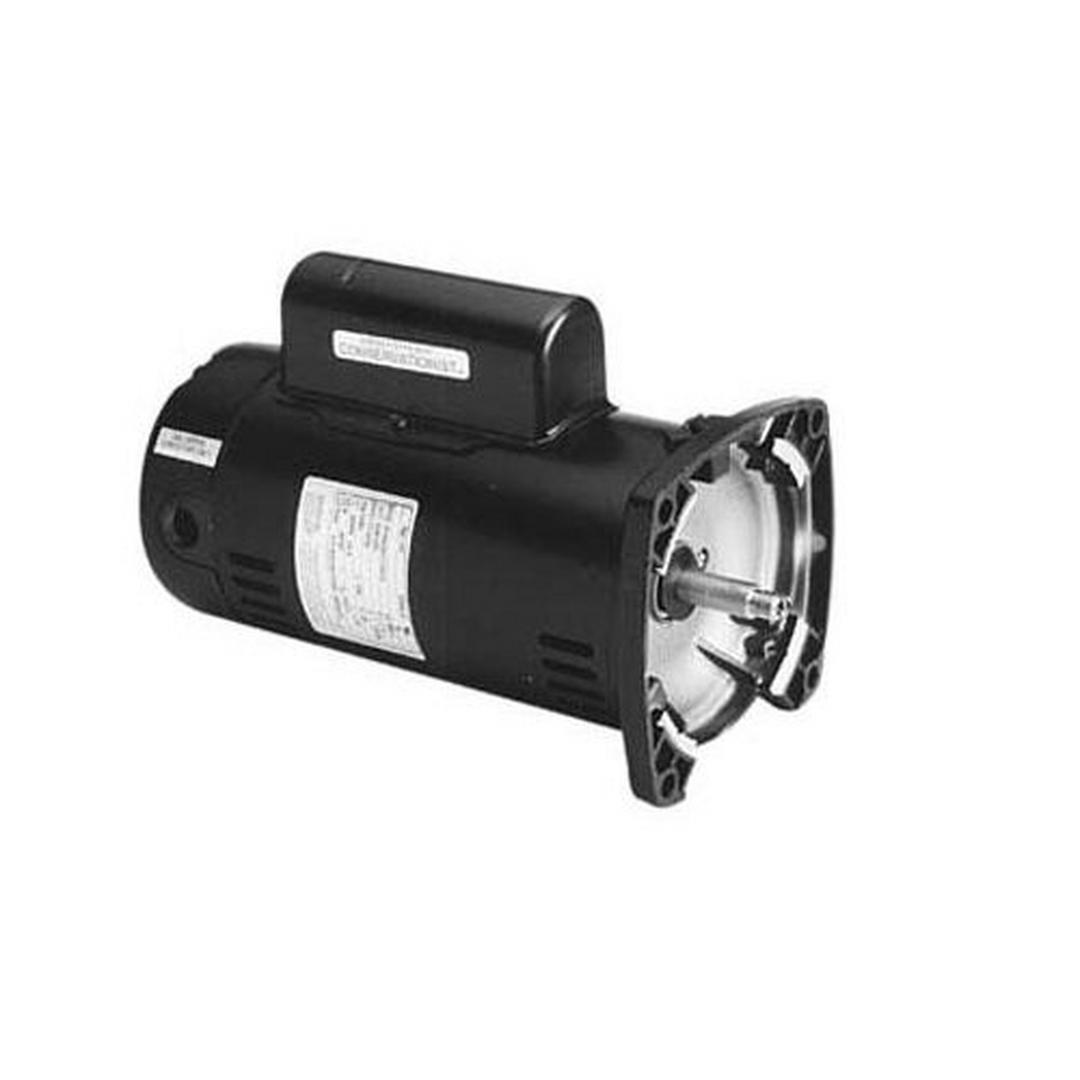

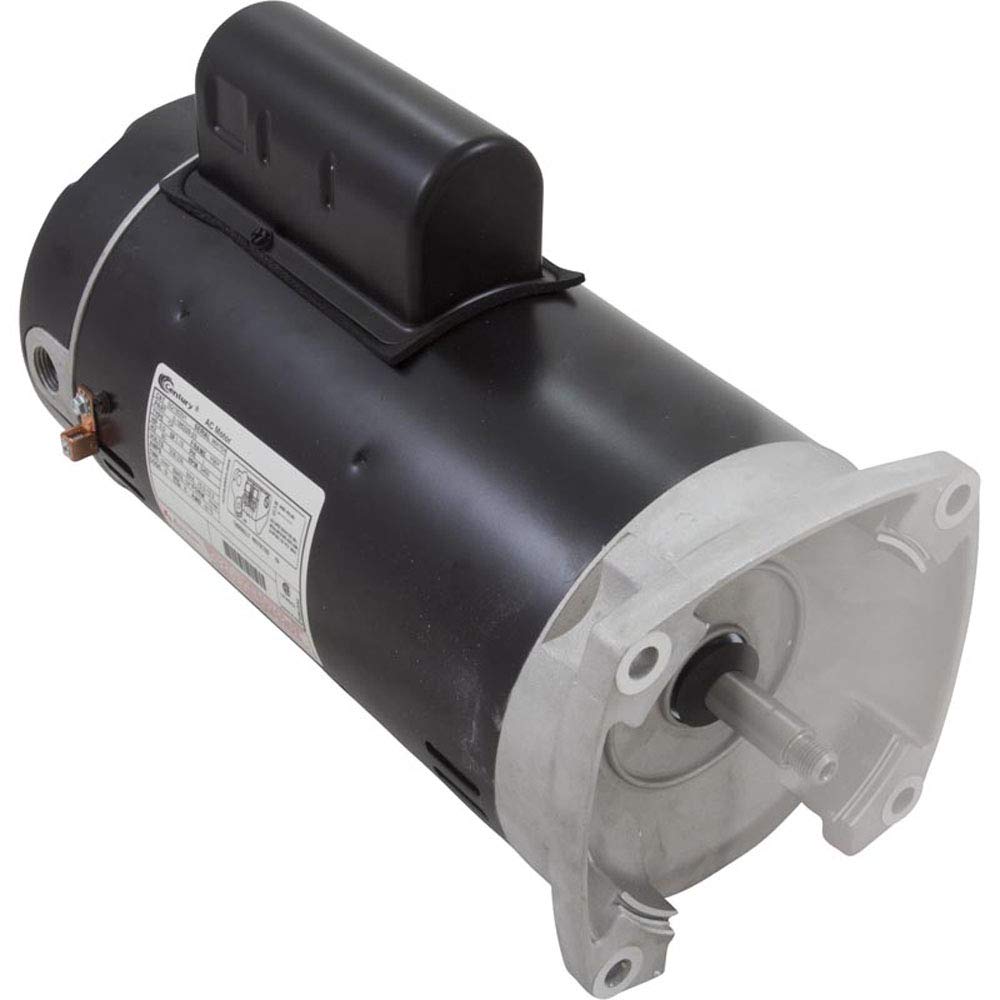

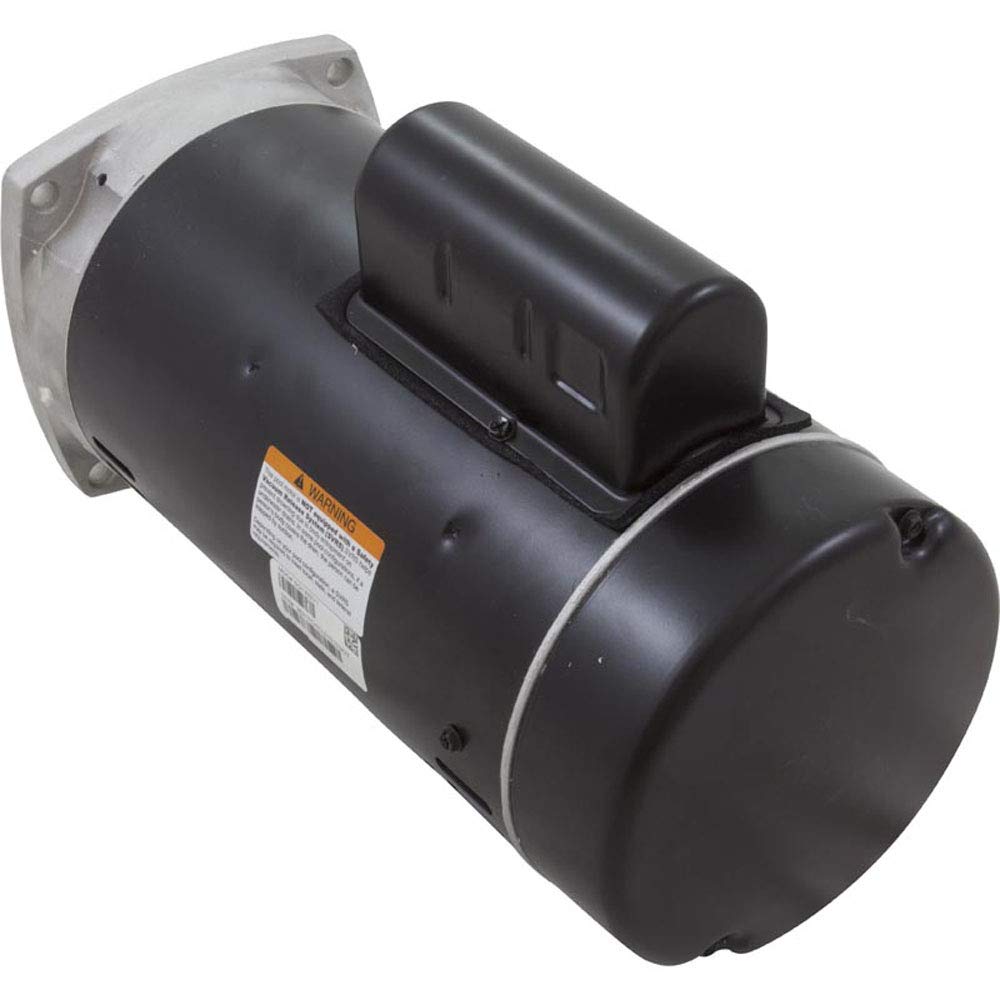

Ao Smith SQ1302V1 3 HP Motor 230V (56Y Frame Square Flange) SQ1302

Product Description

The AO Smith SQ1302V1 is a 3 HP full-rated electric motor for 230 V operation designed for square-flange pool pump and filter applications. It is a single-phase, single-speed motor rated 3450 RPM with a 56Y frame, capacitor start, open drip proof enclosure, sealed ball bearings, and a 303 stainless steel threaded shaft. The motor includes automatic thermal protection and is rated for 50 C ambient.

• 3 HP full-rated motor, 230 V, single phase, 3450 RPM, 56Y square flange frame
• Capacitor start design, open drip proof enclosure, automatic thermal protection, Class B insulation
• 303 stainless steel threaded shaft, sealed ball bearings, counterclockwise rotation at pump end

Product Highlights

3 HP 230 V, 3450 RPM, 56Y square flange, capacitor start, ODP, sealed bearings

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: SQ1302V1
• Country of Origin: United States

Technical Specifications

• Brand: AO Smith
• Manufacturer Part Number (MPN): SQ1302V1
• Model: SQ1302V1
• Product Type: Electric motor / pump motor
• Horsepower: 3 HP
• Rated Voltage: 230 V
• Phase: Single phase
• Frequency: 60 Hz
• Frame: 56Y

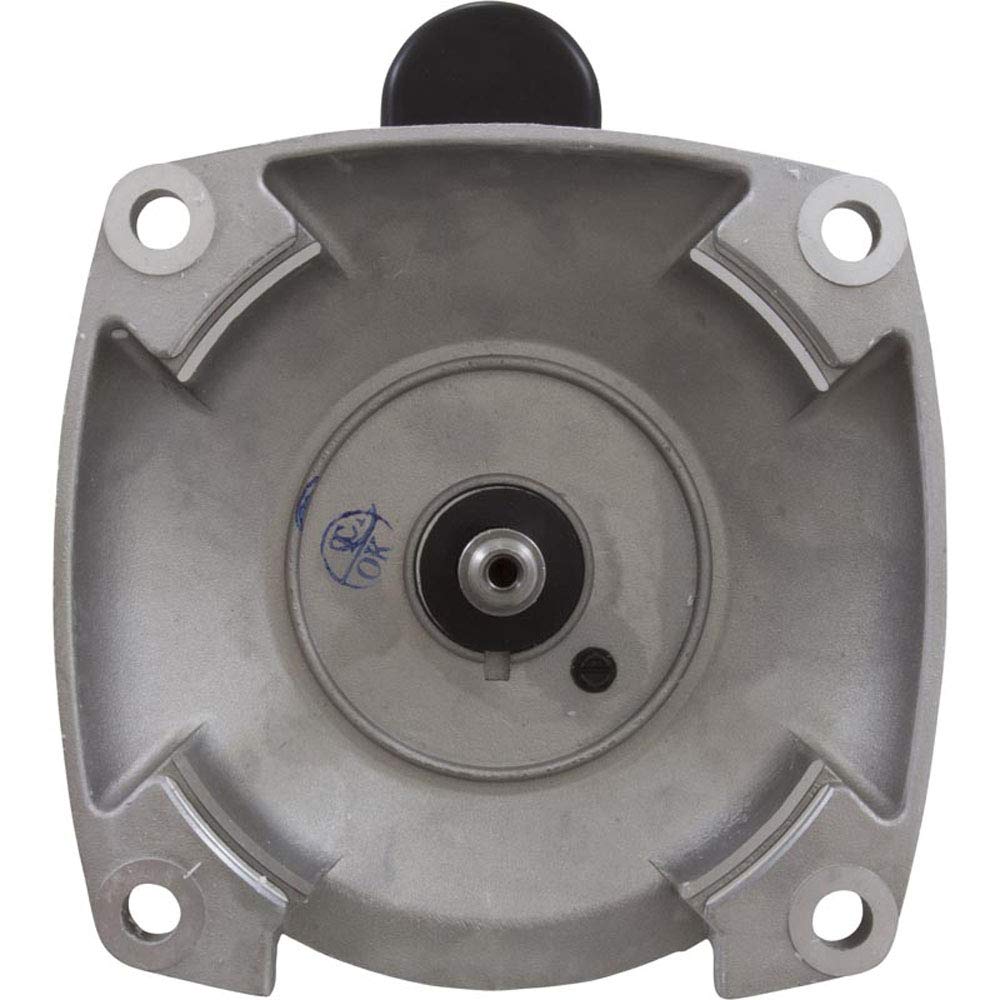

• Flange Type: Square flange
• Mounting Type: Square flange (56Y)
• Speed (RPM): 3450 RPM
• Speed Setting: Single speed
• Service Factor: 1.15
• Rated Amperage: 15.4 A
• Start Type: Capacitor start
• Enclosure: Open drip proof (ODP)
• Shaft: Threaded 303 stainless steel shaft
• Shaft Rotation: Counterclockwise (pump end)
• Bearings: Sealed ball bearings
• Thermal Protection: Automatic thermal protection (auto protector)
• Insulation Class: Class B
• Maximum Ambient Temperature: 50 C
• Certifications: UL1081
• Compatible Use: Pool pump / pool filter motor
