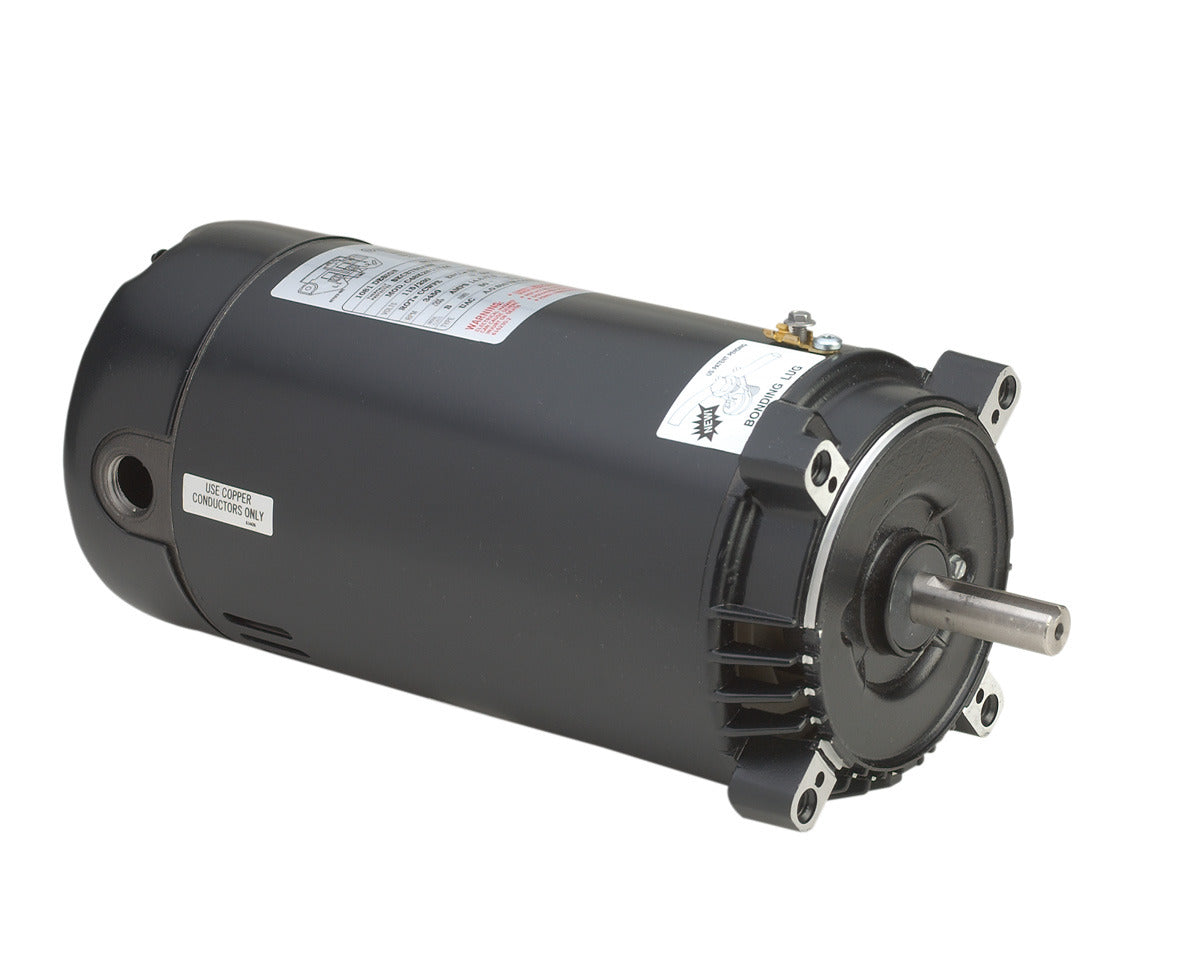

Century SK1102 Pool and Spa Motor 1 HP 56C Frame

Product Description

The Century SK1102 Pool and Spa Motor is a powerful and reliable choice for pool and spa applications. With 1 horsepower and a 56C frame, it ensures efficient operation.

• Capacitor-Start
• Efficient and durable design
• Compatible with various voltage settings

Product Highlights

This Century SK1102 motor is ideal for pumping and filtration in pools and spas. It features a single-phase, open dripproof enclosure and can operate at both 115V and 230V. The motor is made from rolled steel for enhanced durability and thermal protection ensures safe operation.

Product Information

Standard Information

• Brand: Century
• MPN: SK1102
• Type: UAC
• Model: C48L2N131

Technical Specifications

• Horsepower: 1 HP
• Frame: 56C
• Voltage: 115/230V
• Amperage: 8.5/17.0
• RPM: 3450
• Thermal Protection: Auto
• Insulation Class: B
• Max Ambient Temperature: 50 Degrees C
• Enclosure: Open Dripproof (ODP)
• Rotation: Counter Clockwise Shaft End (CCWSE)
• Body Diameter: 5.7 inches
• Length Less Shaft: 13 9/16 inches
• Shaft Length: 2 1/16 inches
• Overall Length: 14 3/16 inches
• Shaft Diameter: 5/8 inches
• Shaft Material: Stainless Steel
• Mounting Type: Face
• Material: Rolled Steel
• Phase: Single
• Service Factor: 1.5
• Standards: CSA, UL
