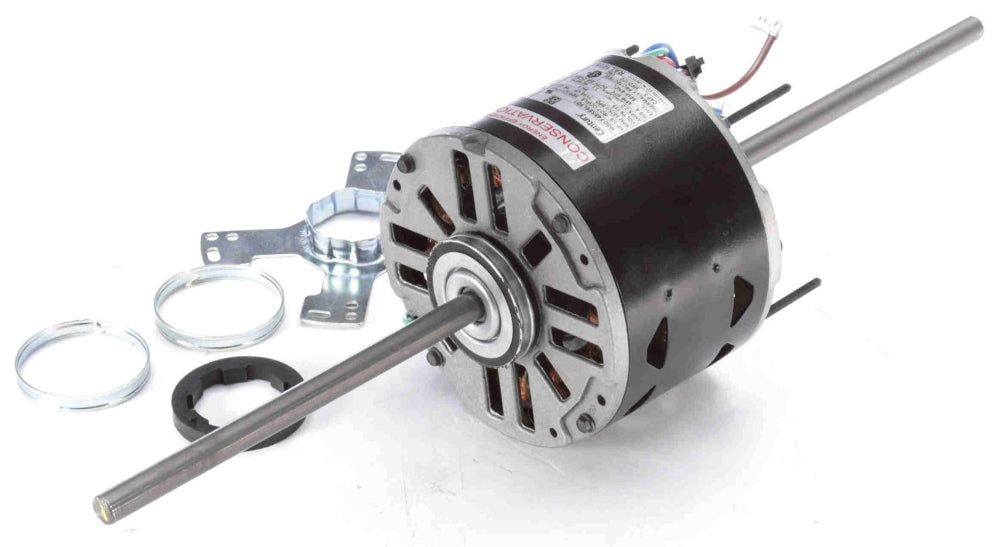

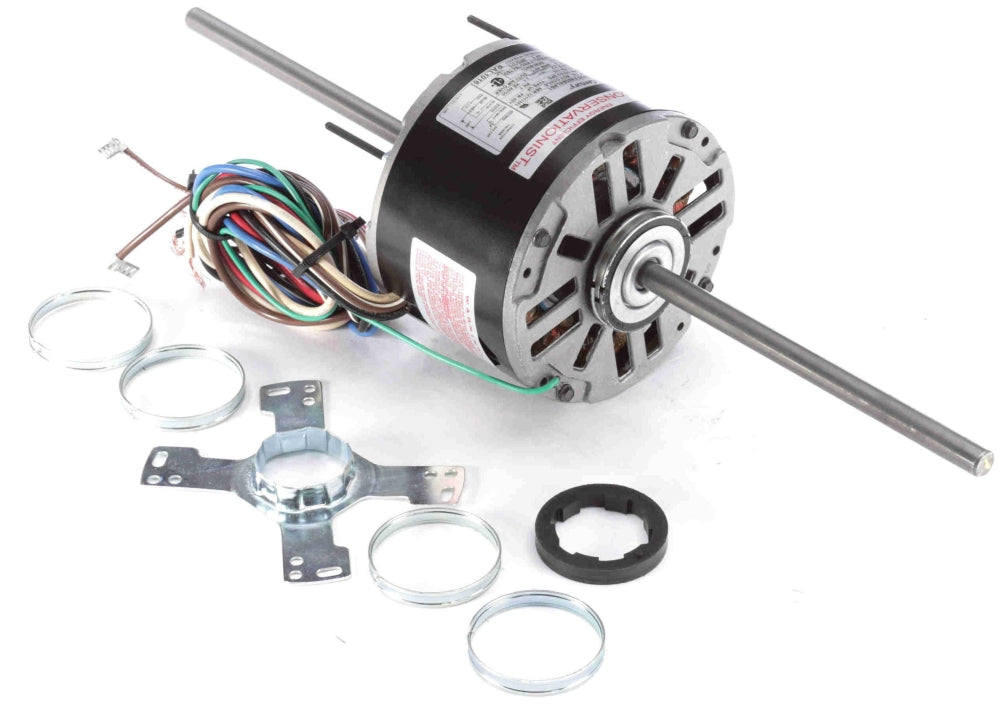

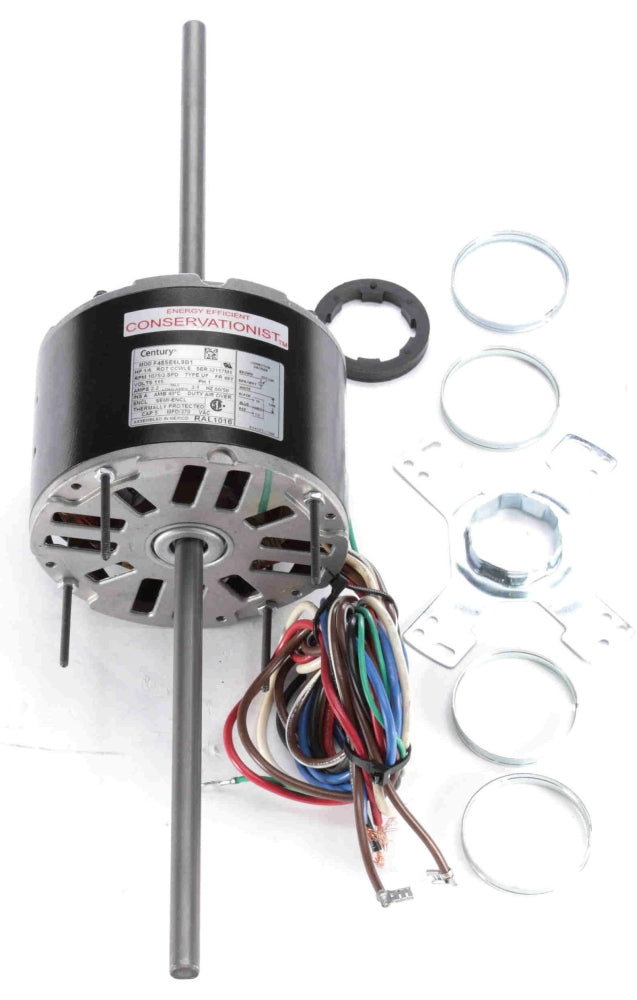

AO Smith RAL1016 1/6 HP 115 VAC 50/60 Hz Blower Motor

Product Description

The AO Smith RAL1016 is a blower motor designed for HVAC systems. This motor operates at 1/6 horsepower and is suitable for air conditioning units and fan coils. It is compatible with both 115 Volt AC and 1-phase applications. The motor runs efficiently at a speed of 1075 RPM and features three speeds for versatile operation.

• Power rating of 1/6 HP
• Operates on 115 Volt AC
• Compact dimensions of five and five-eighths inches by twenty inches

Product Highlights

This blower motor is constructed with a rolled steel frame and includes a permanent split capacitor for reliable performance.

Product Information

Standard Information

• Manufacturer: AO Smith
• Part Number: RAL1016

Technical Specifications

• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 50/60 Hertz
• Motor FLA: 2.2 Amp
• Number of Speeds: 3
• Speed Rating: 1075 RPM
• NEMA Frame Size: 48Y
• Insulation Class: A
• Weight: 12 pounds
