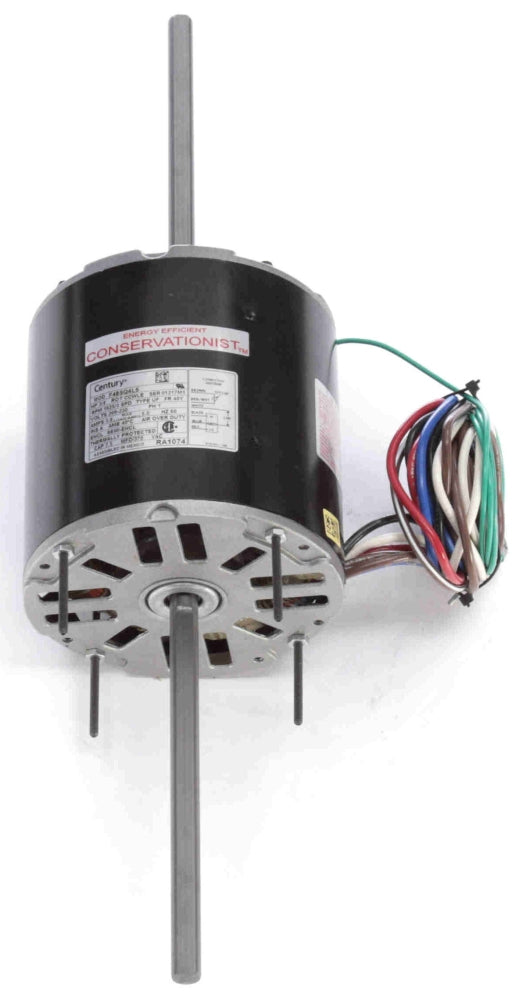

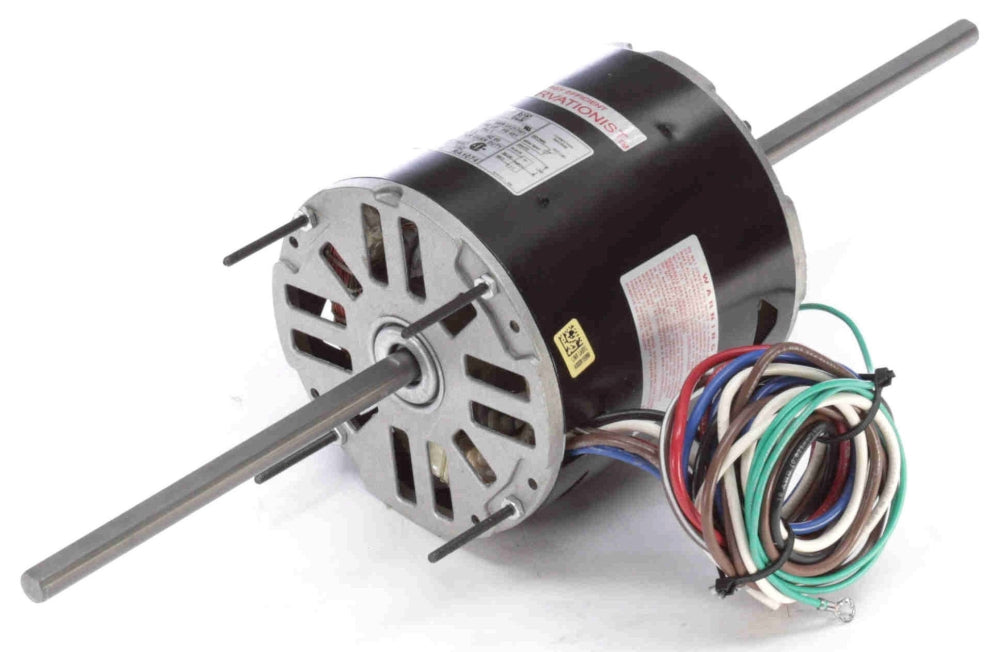

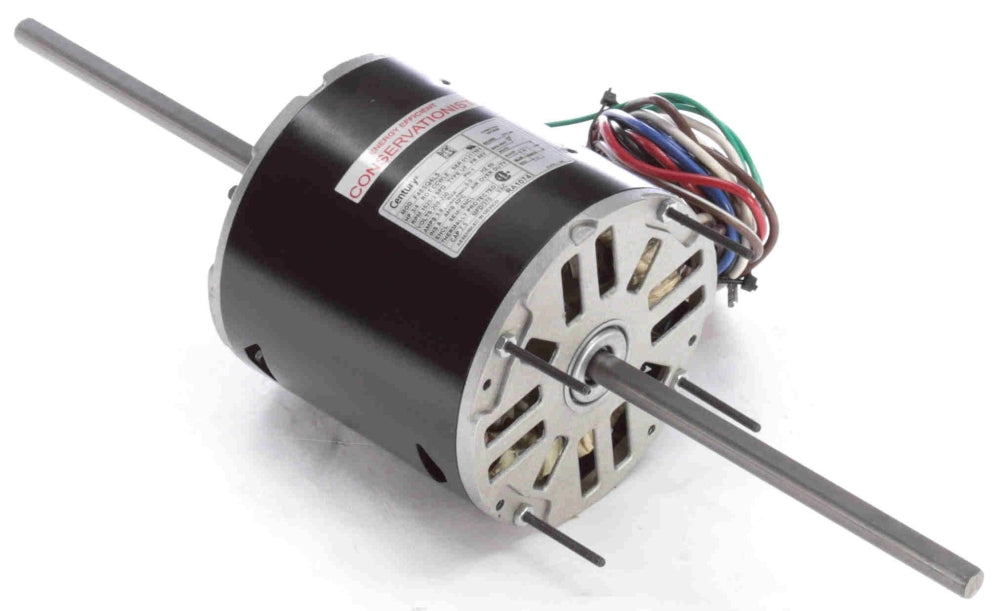

AO Smith RA1074 3/4 HP, 208 to 230 VAC 60 Hz 1-Phase 3-Speed Blower Motor

Product Description

The AO Smith RA1074 is a versatile blower motor designed for various applications. This motor operates at three-quarters horsepower, with a voltage range of 208 to 230 volts. It is suitable for use in fan coil and room air conditioning systems. The motor features a counterclockwise lead end rotation and is designed for continuous duty.

• Power Rating: 3/4 HP
• Voltage: 208 to 230 VAC
• Speed: 1625 RPM

Product Highlights

Efficiently powers HVAC systems and operates at three different speeds.

Product Information

Standard Information

• Manufacturer: AO Smith
• MPN: RA1074

Technical Specifications

• Power Rating: 3/4 HP
• Voltage Rating: 208 to 230 VAC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 3.8 Amp
• Number of Speeds: 3
• Speed Rating: 1625 RPM
• NEMA Frame Size: 48Y
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Resilient Ring, Extended Stud
• Weight: 20 Pound
• Application: Room Air Conditioner, Fan Coil, Blower
• Approval: UL, CSA
• Shaft Type: Double Flat
• Orientation: Horizontal
• Starting Method: Induction Run
• Ambient Temperature Rating: 40 Deg C
• Includes: 35 Inch Lead, Mounting Accessory, 7.5 Microfarad 370 Volt Capacitor
