AO Smith RA1054 Fan Coil Blower Motor 1/2 HP 208 to 230 VAC

Product Description

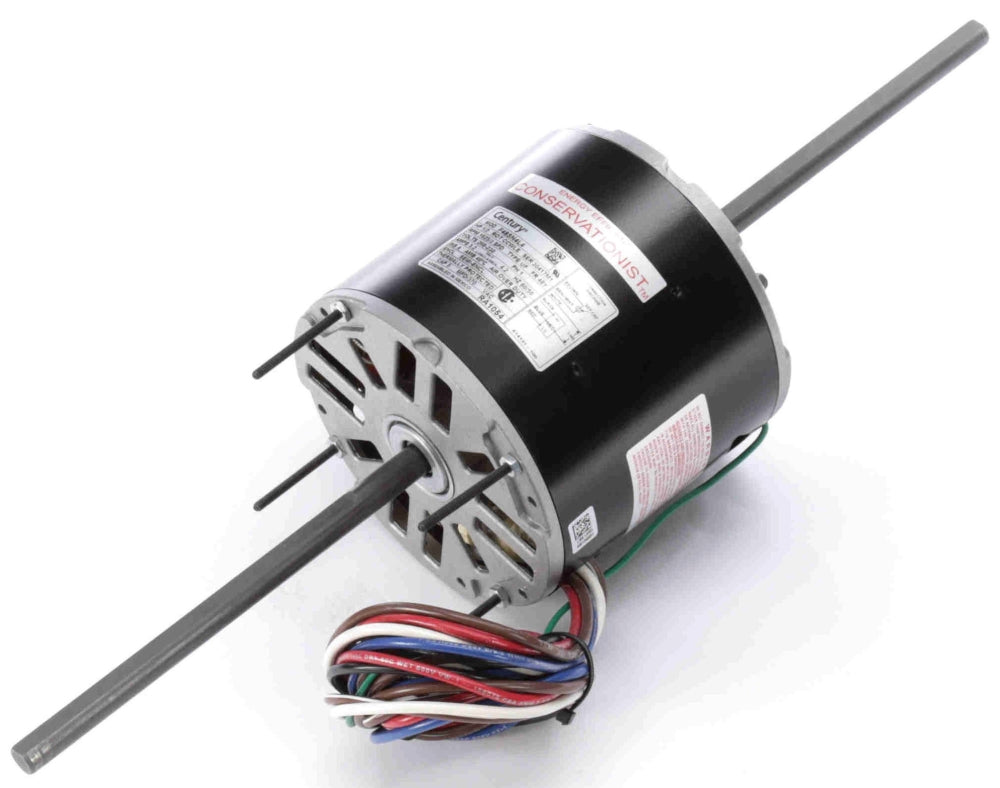

AO Smith RA1054 is a fan coil blower motor designed for air conditioning and blower applications. This motor operates at one half horsepower and is compatible with 208 to 230 volts AC, making it suitable for various HVAC systems.

• Rated for 1/2 HP
• Operates at 1625 RPM with 3 speeds
• Includes mounting accessories

Product Highlights

The RA1054 motor features a durable rolled steel frame and operates efficiently with a permanent split capacitor. It is designed for horizontal rotation and includes sleeve bearings for smooth operation.

Product Information

Standard Information

• Brand: AO Smith
• MPN: RA1054

Technical Specifications

• Power Rating: 1/2 HP
• Voltage: 208 to 230 Volt AC
• Frequency: 50/60 Hertz
• Motor FLA: 3.2 Amp
• Number of Speeds: 3
• Speed Rating: 1625 RPM
• Service Factor: 1
• NEMA Frame Size: 48Y
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Resilient Ring, Extended Stud
• Weight: 17 Pound
• Application: Room Air Conditioner, Fan Coil, Blower
• Approval: UL, CSA
• Shaft Type: Double Flat
• Rotation Type: Counter Clockwise Lead End
• Ambient Temperature Rating: 40 Deg C
• Includes: 35 Inch Lead, Mounting Accessory, 5 Microfarad 370 Volt Capacitor
