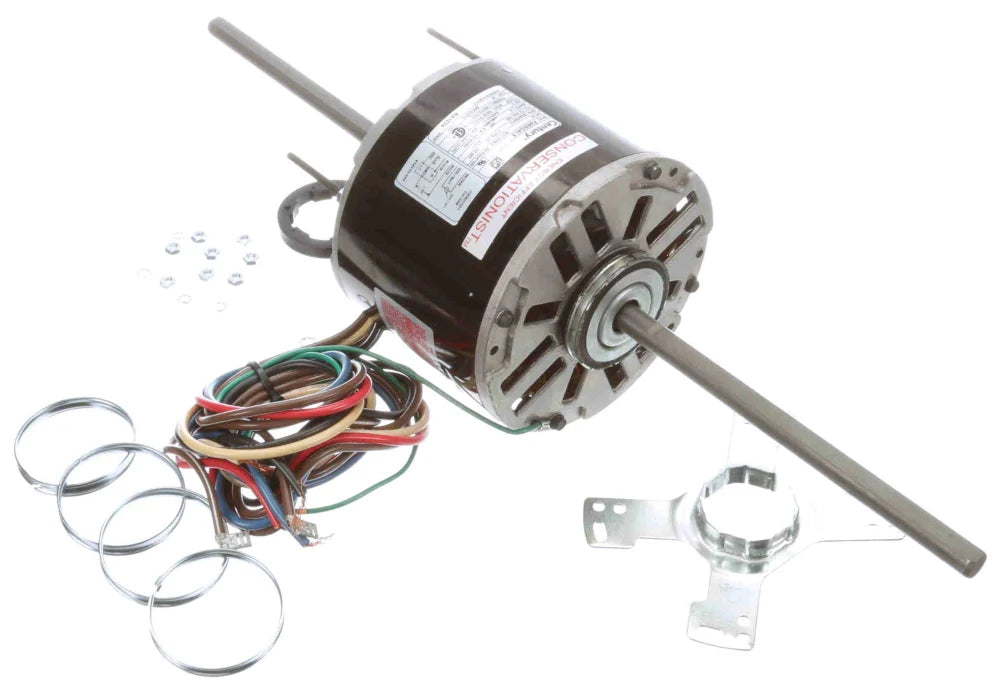

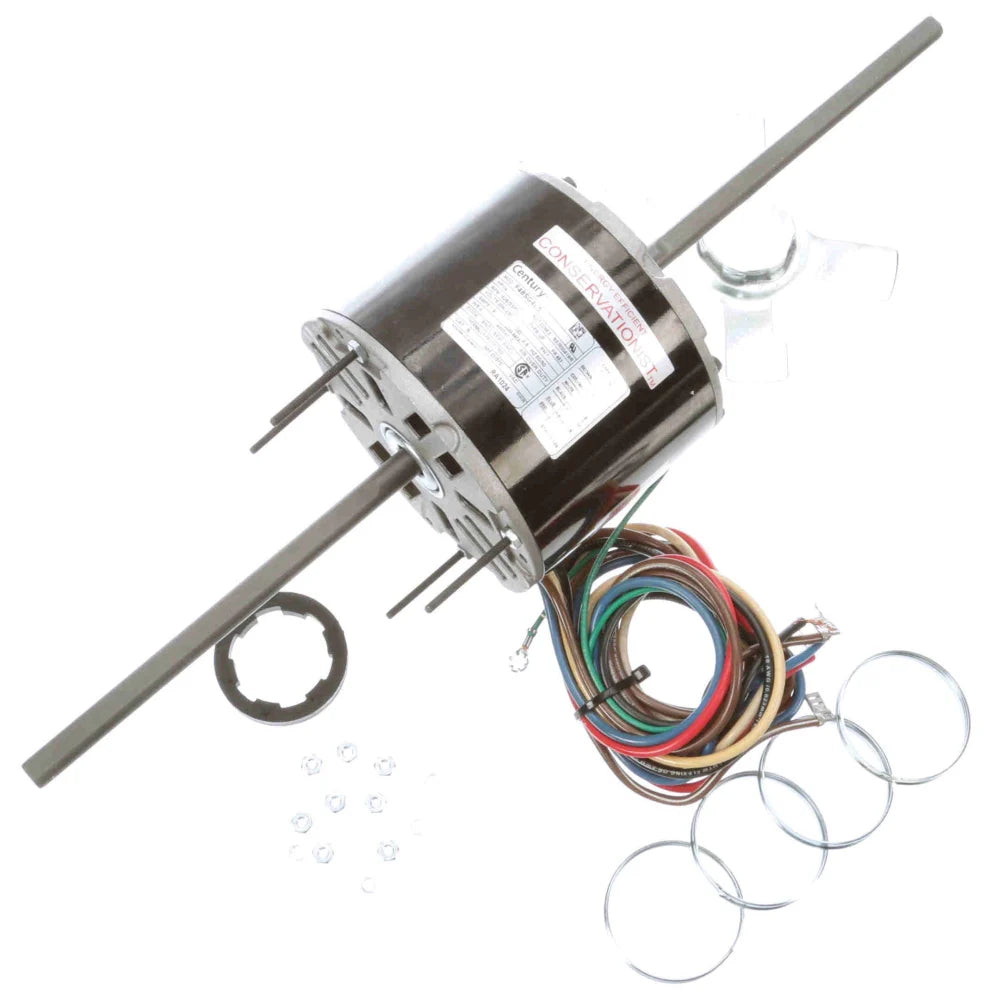

AO Smith RA1024 1/4 HP Blower Motor 208 to 230 VAC

Product Description

The AO Smith RA1024 is a blower motor designed for various HVAC applications. This motor operates at one-quarter horsepower and supports voltage ratings of 208 to 230 volts AC in single-phase systems. It has a frequency rating of fifty to sixty hertz and delivers a speed rating of sixteen hundred twenty-five RPM.

• Power rating of one-quarter horsepower
• Three-speed operation
• Includes mounting accessories

Product Highlights

The RA1024 is suitable for applications including room air conditioners and fan coils. It features a semi-enclosed design and is made from rolled steel for durability.

Product Information

Standard Information

• Manufacturer: AO Smith
• Category: HVAC > Motors > Blower Motors

Technical Specifications

• Power Rating: 1/4 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 50/60 Hertz
• Motor FLA: 1.9 Amp
• Number of Speeds: 3
• Speed Rating: 1625 RPM
• NEMA Frame Size: 48Y
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting Type: Resilient Ring, Extended Stud
• Weight: 13 pounds
• Approvals: UL, CSA
• Rotation Type: Counter Clockwise Lead End
