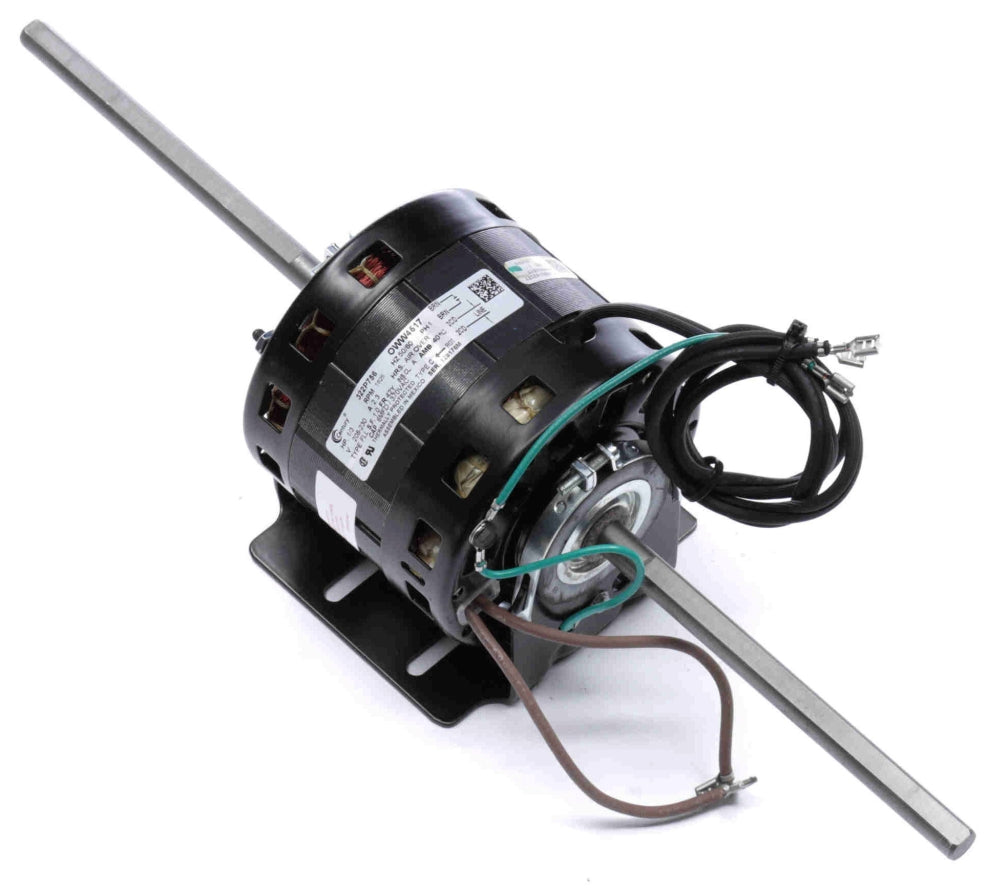

AO Smith OWW4517 Fan Coil Blower Motor 1/3 HP 208 to 230 VAC

Product Description

The AO Smith OWW4517 is a fan coil blower motor with a power rating of one-third horsepower. This motor operates at voltage ratings of 208 to 230 volt AC and is single-phase with a frequency of fifty hertz. It draws a full load current of 2.3 amps and ensures reliable performance with its four-pole design, achieving a speed of 1625 RPM.

• Power rating of 1/3 HP
• Fluidly operates at 208 to 230 VAC
• Includes a resilient base mount for stability

Product Highlights

This motor is suitable for various applications, including fan coil and dual-wheel blowers. It features an open air-over enclosure type with Class A insulation. The NEMA 42Y frame is made from rolled steel and supports a double flat shaft design, ensuring sturdy performance.

Product Information

Standard Information

• Manufacturer: AO Smith
• UPC: 786674028679

Technical Specifications

• Power Rating: 1/3 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 50 Hertz
• Motor FLA: 2.3 Amp
• Speed Rating: 1625 RPM
• NEMA Frame Size: 42Y
• Insulation Class: A
• Weight: 14 Pound
• Application: Fan Coil, Dual Wheel Blower
• Type: Permanent Split Capacitor
• Mounting: Resilient Base
• Shaft Type: Double Flat
• Bearings: Sleeve (Drive End/Opposite Drive End)
