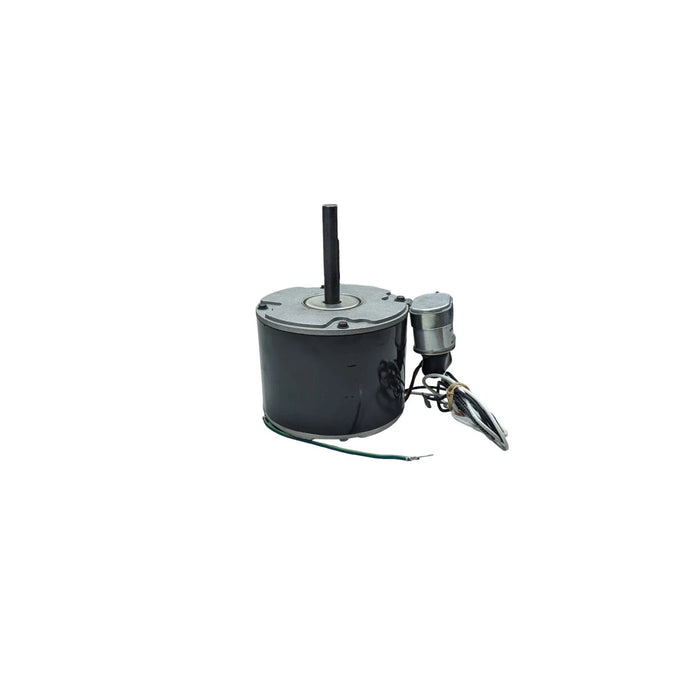

AO Smith OTR4513 1/8 HP 208 to 240 VAC 60 Hz 1-Phase 0.8 to 0.9 A 4-Pole 1550 RPM Condenser Motor

Product Description

The AO Smith OTR4513 is an HVAC/R motor with a power rating of 1/8 horsepower, designed to operate on 208 to 240 volts in a single-phase system. It features a speed of 1550 RPM and a current load between 0.8 to 0.9 amps. This motor is ideal for various air conditioning and refrigeration applications.

• Automatic thermally protected
• Permanent split capacitor for easy start-up
• NEMA 42Y frame size for standard mounting

Product Highlights

The AO Smith OTR4513 is built to meet the demands of HVAC applications with features like a totally enclosed design, which protects the motor from dust and moisture.

Product Information

Standard Information

• Manufacturer: AO Smith
• Status: Discontinued

Technical Specifications

• Power Rating: 1/8 HP
• Voltage Rating: 208 to 240 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 0.8 to 0.9 Amp
• Speed Rating: 1550 RPM
• Service Factor: 1
• NEMA Frame Size: 42Y
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Extended Stud
• Weight: 8 Pound
• Approval: UL, CSA
