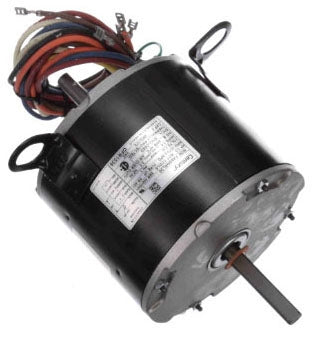

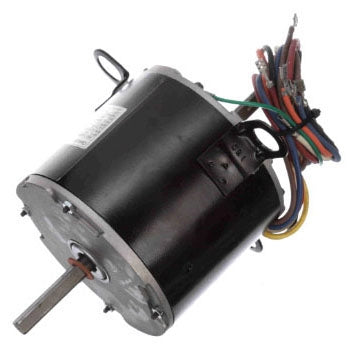

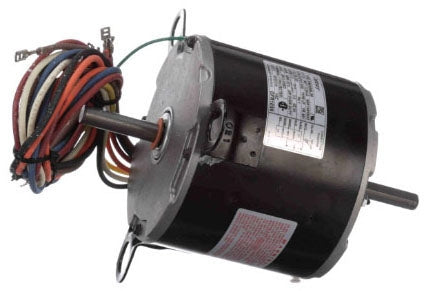

AO Smith OFR1036 Condenser Motor 230V 1.8A 1075RPM Lug Mount

Product Description

Maximize the efficiency of your HVAC systems with the AO Smith OFR1036 Condenser Motor. This robust component is designed for reliable performance under demanding conditions.

• Engineered for durability with a totally enclosed, air-over motor enclosure.
• Features a 1/3 HP power rating and operates at 230 Volt AC, suitable for many HVAC setups.
• Comes with a 5-speed setting and achieves a speed of 1075 RPM, ideal for various cooling applications.

Product Highlights

The AO Smith OFR1036 boasts a rolled steel frame and Class B insulation, ensuring a long service life and safe operation.

Product Information

Standard Information

• Mounting: Lug
• Approval: UL, CSA certified

Technical Specifications

• Power Rating: 1/3 HP
• Voltage Rating: 230 Volt AC, 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.8 Amp
• Number of Speeds: 5
• Speed Rating: 1075 RPM
• Service Factor: 1
• NEMA Frame Size: 48Y
• Insulation Class: Class B
• Frame Material: Rolled Steel
