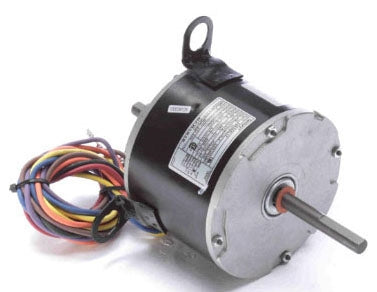

AO Smith OFR1016 1/6 HP 230 V Condenser Motor

Product Description

The AO Smith OFR1016 is a 1/6 horsepower condenser motor that operates at a voltage of 230 volts. This motor features a current of 0.8 amps and has five different speed settings, with a speed rating of 1075 RPM. It has a diameter of five and five-eighths inches, making it suitable for various HVAC applications. It is designed for lug mounting and operates in a counter-clockwise direction from the lead end.

• Power Rating: 1/6 HP
• Voltage Rating: 230 V
• NEMA Frame Size: 48FR

Product Highlights

This motor is ideal for replacing old or malfunctioning units in HVAC systems. Its compact size and robust design ensure reliability and efficiency.

Product Information

Standard Information

• Manufacturer: AO Smith
• Category: HVAC > Motors > Condenser Motors

Technical Specifications

• Model Number: OFR1016
• Power Rating: 1/6 HP
• Voltage Rating: 230 Volt
• Motor FLA: 0.8 Amp
• Number of Speeds: 5
• Speed Rating: 1075 RPM
• NEMA Frame Size: 48FR
• Mounting Type: Lug
• Rotation Type: Counter Clockwise Lead End
• Diameter: 5-5/8 Inches
• Shaft Size: 2-1/2 Inches x 1/2 Inch x 3-3/8 Inches
