AO Smith OFC1024 Century Room Air Conditioner Motor

Product Description

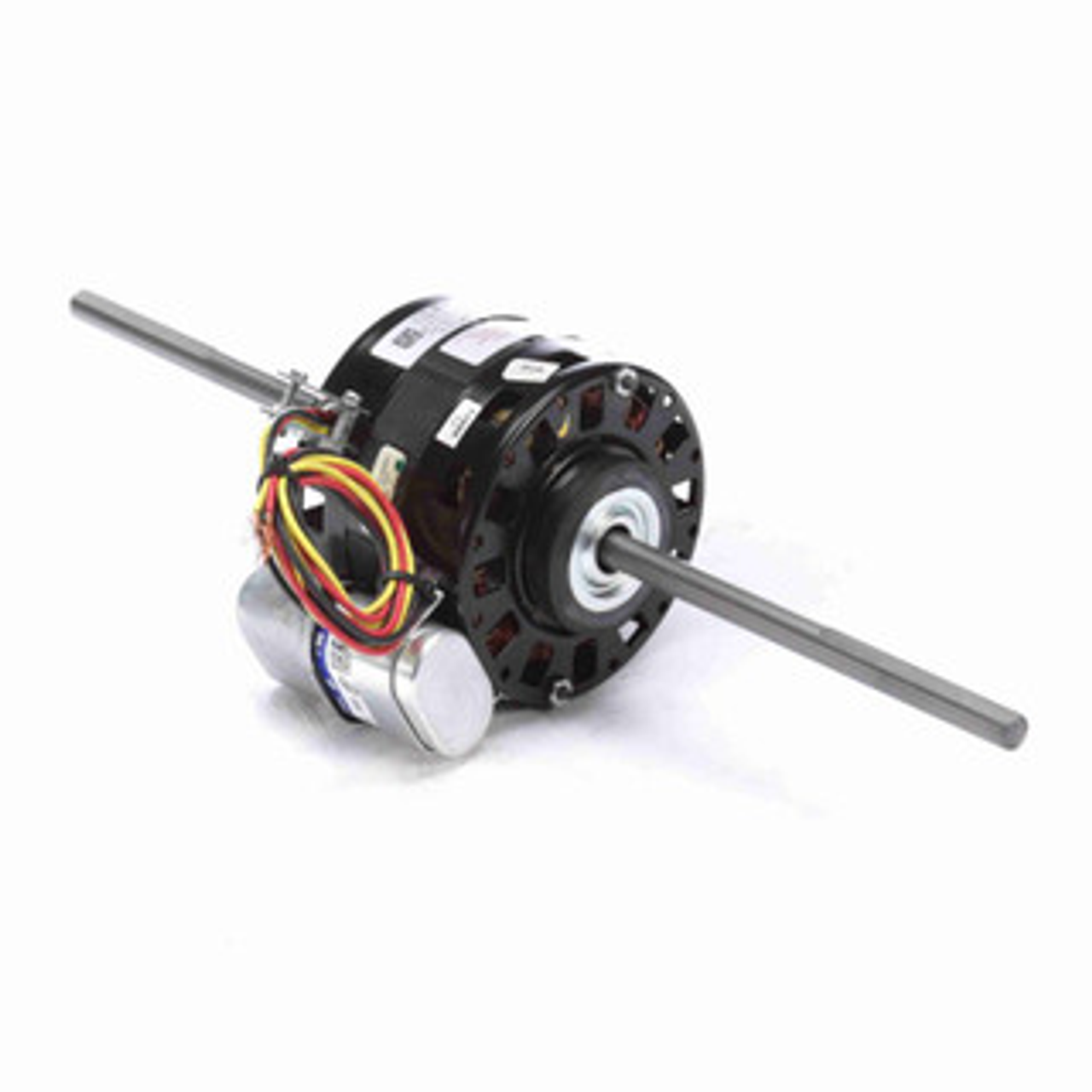

The AO Smith OFC1024 is a Century split capacitor fan coil motor designed for direct replacement in Trane fan coil units. This motor operates at one fourth horsepower with an input voltage of two hundred eight to two hundred thirty volts AC and at a speed of one thousand six hundred twenty-five RPM. The motor features a double shaft design and automatic overload protection to ensure safety and longevity.

• Permanent split capacitor
• Single-phase operation
• Resilient mounting location

Product Highlights

Ideal for HVAC installation, the AO Smith OFC1024 provides reliable performance and efficient operation in various fan coil applications.

Product Information

Standard Information

• Brand: Century
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: OFC1024
• Horsepower: 1/4 HP
• Rated RPM: 1625 RPM
• Voltage: 208-230 V
• Full Load Amps: 1.8 fla
• Frame: 42
• Rotation: CCWLE
• Shaft Diameter: 0.5 inches
• Shaft Length: 7-11/16 x 1/2 x 7-11/16 inches
• Length Less Shaft: 3-9/16 inches
• Enclosure Type: Open/Drip Proof
• Motor Type: Permanent Split Capacitor
• Bearing Type: Sleeve
• Hertz: 60 Hz
• Service Factor: 1
• Certifications: UL and CSA
