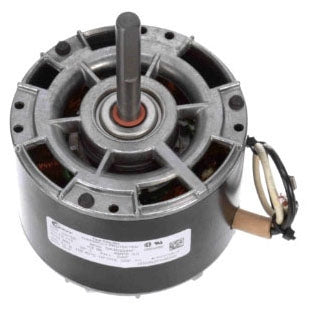

AO Smith OBR40066 1/15 HP 115 VAC 60 Hz 1-Phase Blower Motor

Product Description

The AO Smith OBR40066 is a blower motor with a power rating of one-fifteenth horsepower. It operates on 115 volts AC at sixty hertz and is designed for one-phase systems. This motor shows a full load amp rating of three amps and is characterized by a six-pole configuration. It achieves a speed rating of three thousand four hundred fifty RPM and features a round belly band mount.

• Power Rating: 1/15 HP
• Voltage Rating: 115 VAC, 60 Hz
• Frame Material: Rolled Steel

Product Highlights

This blower motor is ideal for HVAC applications requiring durable and reliable performance. It is suitable for both residential and commercial installations as it can efficiently circulate air.

Product Information

Standard Information

• Manufacturer: AO Smith
• UPC: 786674027146

Technical Specifications

• Service Factor: 1
• NEMA Frame Size: 42Y
• Insulation Class: B
• Weight: 6 Pounds
• Approval: UL, CSA
• Enclosure Type: Semi Enclosed, Open Air-Over
• Speed Rating: 3450 RPM
• Mounting Type: Round Belly Band
