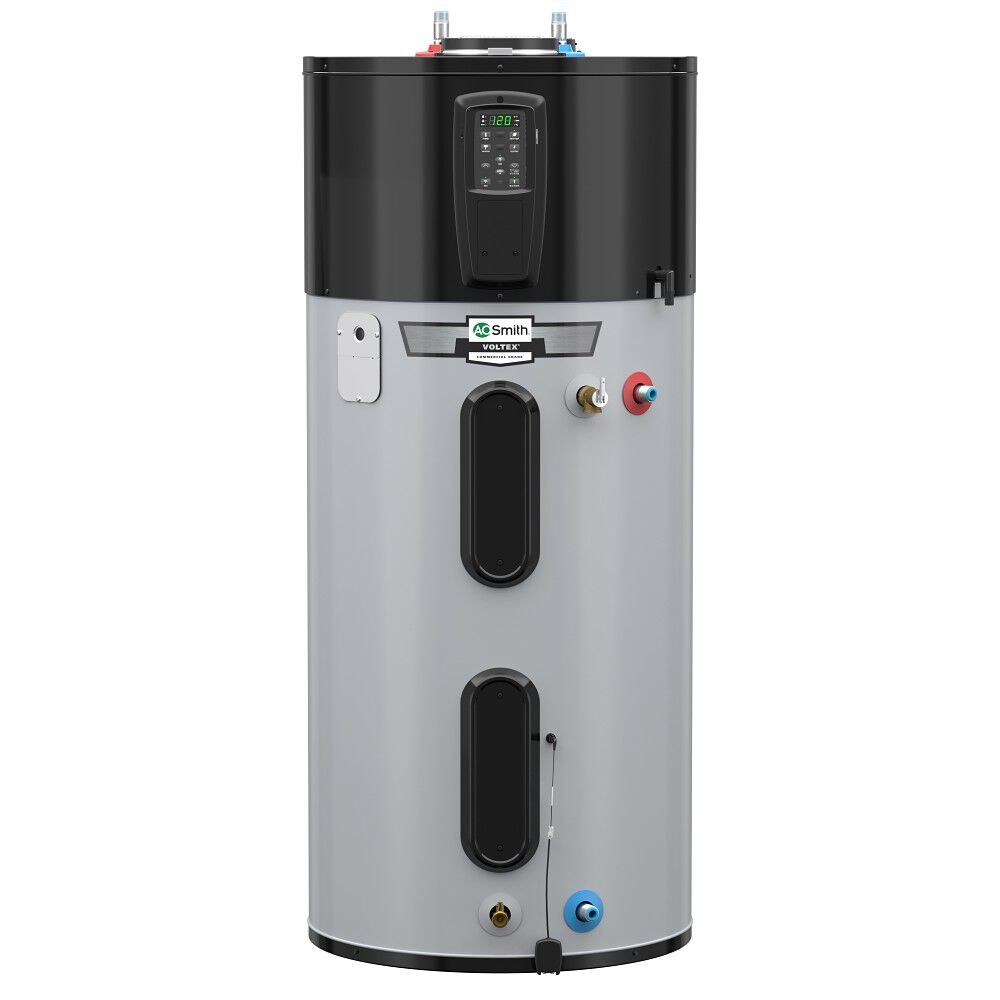

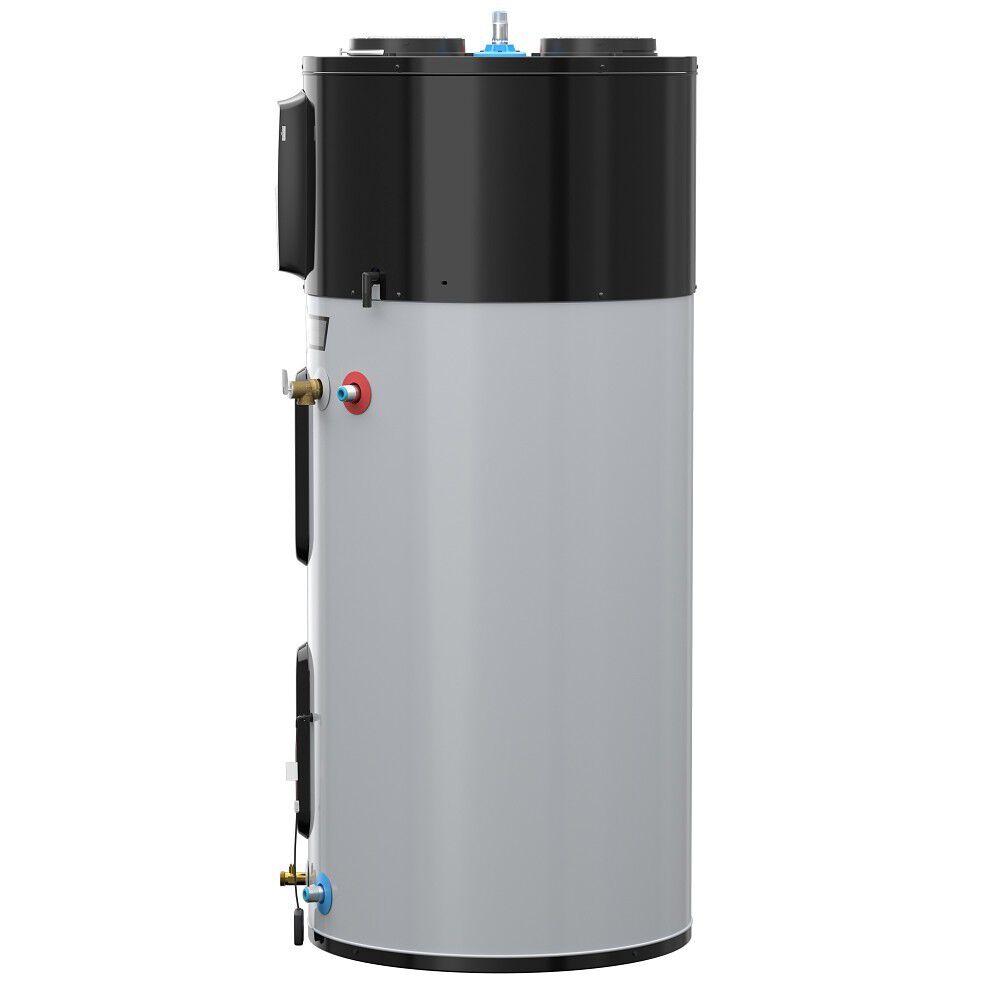

Ao Smith HPTS 66 ProLine XE Voltex AL 66-Gallon Smart Hybrid Electric Heat Pump Water Heater

Product Description

The AO SMITH HPTS 66 ProLine XE Voltex AL Smart Hybrid Electric heat pump water heater is a cost-effective, energy-efficient option. Featuring a 66-gallon tank and a 3.70 Uniform Energy Factor (UEF), this heat pump technology generates heat instead of using heating elements. It includes a user-friendly display, vacation mode, and a heavy-duty anode. It also has two heating elements for quick recovery during high demand.

• Delivers 82-gallon first hour rating
• Save up to $600 per year or $6,000 over 10 years in energy costs compared to standard electric water heaters
• ENERGY STAR certified, 4X more efficient than a standard electric water heater of similar gallon capacity

Product Highlights

This ProLine XE water heater features commercial-grade tank protection, including a stainless steel CoreGard anode rod and Blue Diamond glass lining.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: HPTS 66 202172000 210
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 66 Gallons
• Rated Storage Volume: 67 Gallons
• UEF: 3.7
• Power Source: ELECTRIC
• T&P Relief Valve: Yes
• Water Connection Location: BOTH
• Water Connection Size: 0.75"
• First Hour Rating: 82 Gallons
• ASME Certified: No
• NEEA Certified: Yes
• Amperes: 23.6

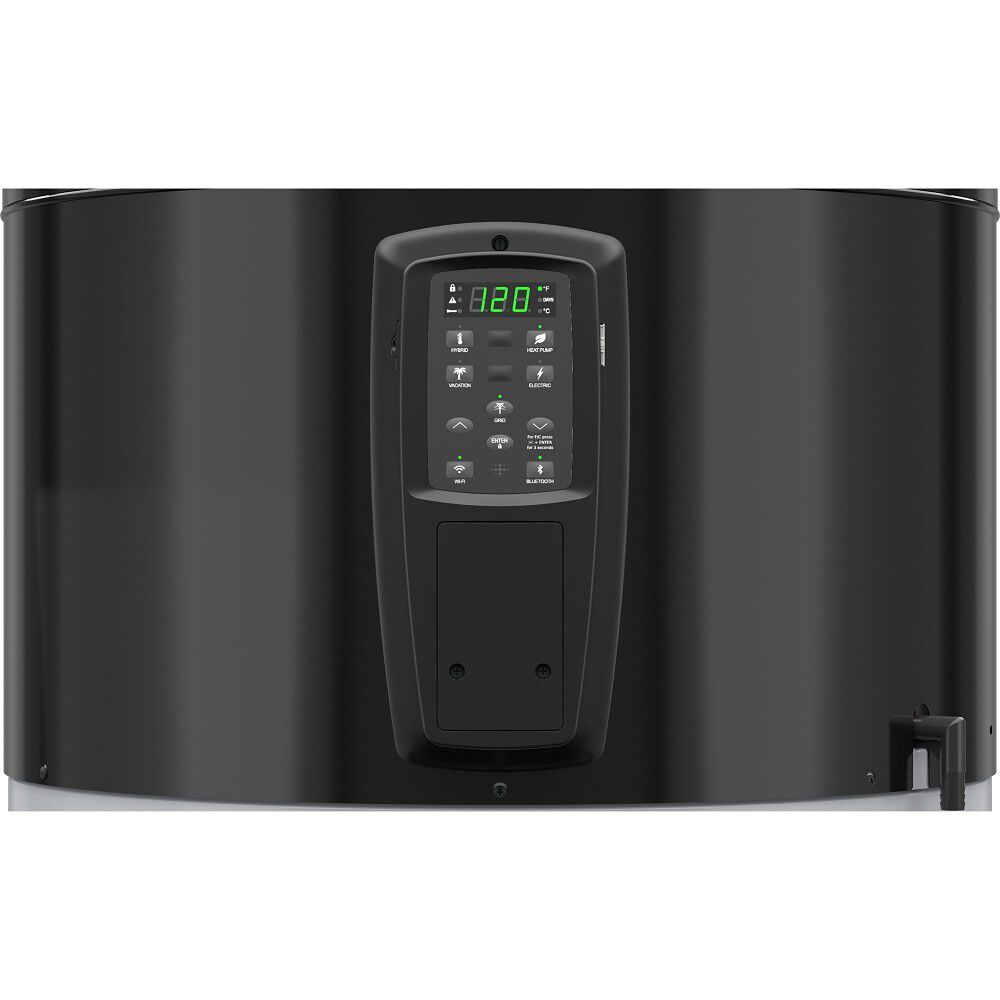

• Digital Display: Yes
• ENERGY STAR Certified: Yes
• Height to T&P: 38.50
• Installation Type: INDOOR
• Max Wattage: 4,500
• Number of Elements: 2
• Application: RESIDENTIAL
• Side Loop: No
• Voltage: 208 - 240
• Type: Water Heater
• Height: 63.18"
• Diameter: 26.5 in."
• Width: 26.5"
