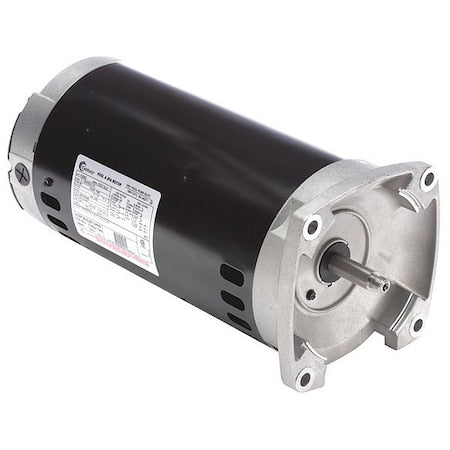

Century H995 Motor 5.0 HP 208-230/460V 56Y Frame 3 Phase

Product Description

The Century H995 Motor provides a reliable solution for pool and spa pump applications. Designed for durability and efficiency, this motor is ideal for various water circulation needs.

• 5.0 HP motor
• 208-230/460V power
• 56Y Frame

Product Highlights

Century's H995 motor is a 5.0 HP, 3-phase motor, designed for use in pool and spa pumps. Operating at 208-230/460V, this motor ensures efficient water circulation.

Product Information

Standard Information

• Brand: Century
• MPN: H995
• UPC: 786674025180
• Category: Motors

Technical Specifications

• HP: 5
• Voltage: 208-230/460V AC
• Frame: 56Y
• Phase: Three
• RPM Range: 3,001-3,600
• Shaft Dia.: 5/8 in
• Shaft Length: 15/16 in
• Motor Bearings: Ball
• Motor Design: 3-Phase
• Motor Enclosure Design: Open Dripproof
• Motor Frame Material: Steel
• Motor Application: Pump
• Ins. Class: B
• Full Load Amps: 13.4-13.4/6.7
• Motor Efficiency Group: Standard Efficient
• Duty Cycle: Continuous
• Finish: Black
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Material: Stainless Steel
• Overall Length: 14 7/8 in
• Length Less Shaft: 14 in
• Height: 6 1/2 in
• Shaft Material: Stainless Steel
• Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
• Nameplate RPM: 3,450
• No. of Speeds: 1
• Motor Mounting Type: Face
• Motor Mounting Position: Horizontal
• Motor Flange Material: Aluminum
• Motor Service Factor: 1
