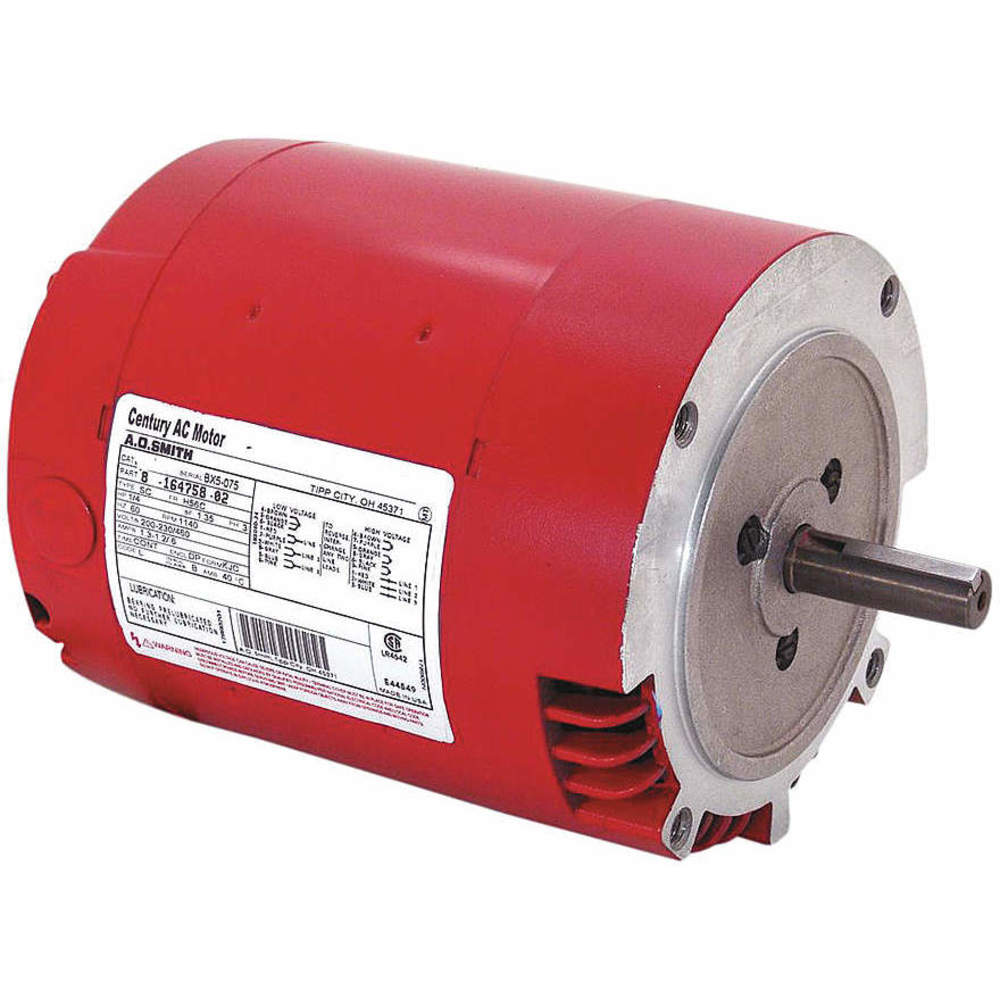

Ao Smith H1042L Century Electric Motor 3/4 hp replacement mfr. no. H1042

Product Description

The AO SMITH H1042L Century Electric Motor is a 3/4 hp, 1725 RPM motor designed for water circulator applications. It features a Nema/iec Face and is compatible with in-line circulating pumps. The motor has a three phase and operates at 208-230/460V AC.

• Motor Sub Application: Water Circulator
• Motor Mounting Type: Face
• Full Load Amps: 2.7A

Product Highlights

This motor is ideal for pump applications requiring a reliable and efficient power source.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: H1042L
• Country of Origin: MX

Technical Specifications

• MPN: H1042L
• SKU: PART-H1042L
• Condition: New
• Item: Water Circulator Motor
• Bearing Type: Ball
• Body Dia.: 6 1/2"
• Bolt Circle Dia.: 5 7/8"
• Compatible With Pump Type: In Line Circulating Pumps
• Conduit Box Position: F1
• Duty Cycle: Continuous
• Finish: Red
• Frame: 56CZ
• Frame Material: Rolled Steel
• Frequency: 60 Hz
• Full Load Amps: 2.7A
• Height: 6 7/16"
• Hp: 3/4 hp
• Insulation Class: Class B
• Length Less Shaft: 8"
• Max. Ambient Temp.: 50 C
• Maximum Ambient Temperature: 122 F
• Maximum Rpm: 1725 RPM
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Enclosure Design: Open Dripproof
• Motor Frame Material: Steel
• Motor Mounting Position: All Angle
• Motor Mounting Type: Face
• Motor Shaft Design: Keyed
• Motor Shaft Rotation: Clockwise/Counter Clockwise
• Motor Sub Application: Water Circulator
• Motor Type: Three Phase
• Mounting Type: C Face, Footless
• Nameplate Rpm: 1725 RPM
• Nameplate Voltage: 208-230/460V AC
• Number Of Speeds: 1
• Overall Length: 9 1/4"
• Phase: 3
• Pump Type: In-Line Circulating Pump
• Replacement For: Mfr. No. H1042
• Service Factor: 1.5
• Shaft Dia.: 5/8"
• Shaft Length: 1 1/4"
• Standards: Csa, Ul Listed
• Thermal Protection: None
• Usable @ 200v: No
• Usable @ 208v: Yes
• Voltage: 208-240/460V AC
• Motor Thermal Protection: None
