Ao Smith GF2024 Century 1/4HP 1725 RPM Motor

Product Description

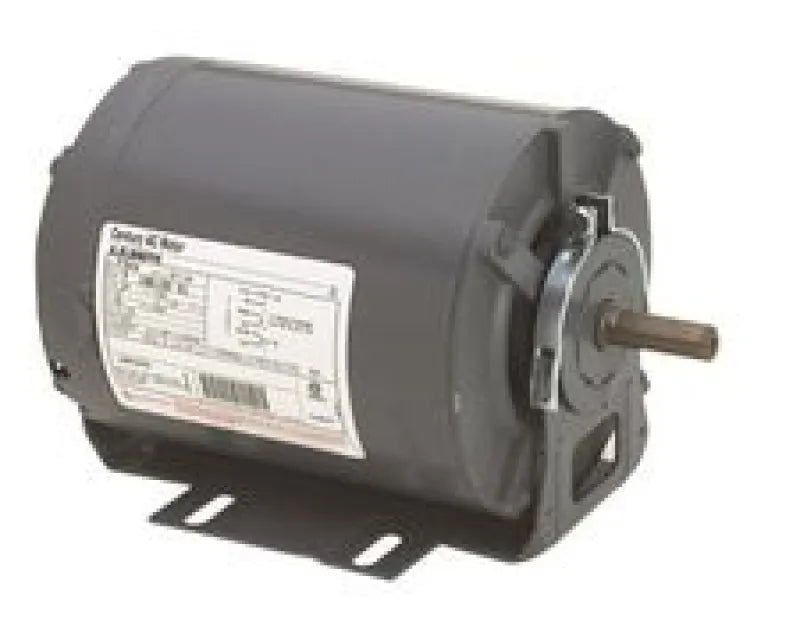

The AO SMITH GF2024 is a 1/4HP, 115V, 60Hz, 1725 RPM motor with PH:1. This single-speed, thermally protected, air-over motor features a sleeve-bearing system and reversible rotation. It is designed for continuous duty in centrifugal pumps, blowers, and fans. It has class B insulation and is CSA certified.

• Replaces AO Smith/Century GF2024, Century 325P581, Baldor RSP1441A, Emerson 8000, GE BF-4701, Packard 45014, & UNIVERSAL 802.
• Designed with a sleeve-bearing system and a reversible rotation capability.
• Suitable for centrifugal pumps, blowers and fans.

Product Highlights

The AO Smith GF2024 motor is a reliable replacement motor for various HVAC applications.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: GF2024
• Country of Origin: US

Technical Specifications

• Speed: 1725 RPM
• Voltage: 115 Volts
• Horsepower: 0.25 Horsepower
• Material Type: Copper
• Brand: A.O. Smith (Regal Beloit EPC)
• Amperage Rating: 5Amp
• Bearing Type: Sleeve
• Country of Origin: US
• Enclosure Type: Open
• Frame: 48
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Manufacturer Name: Regal Beloit
• Mounting Type: Resilient Base
• Number of Speeds: 1
• Phase: 1 ph
• Rotation: Reversible
• Service Factor: 1.35
• Temperature Rating: 40 deg C
• Type: Split Phase
• Amps: 5.4
• Nema Frame Size: 48
• Enclosure: Open Drip Proof
• Bearing: Sleeve Bearing
• Base: Resilient Base
• Motor Type: Split Phase
