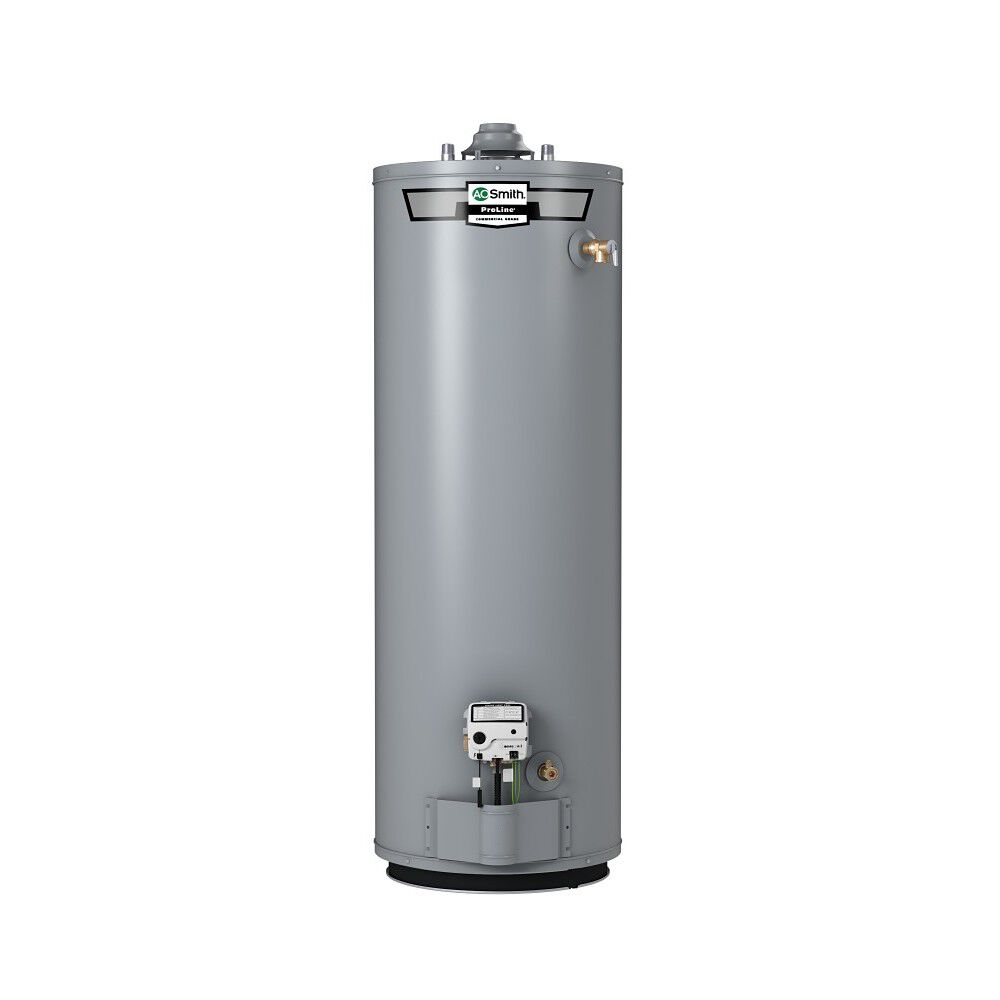

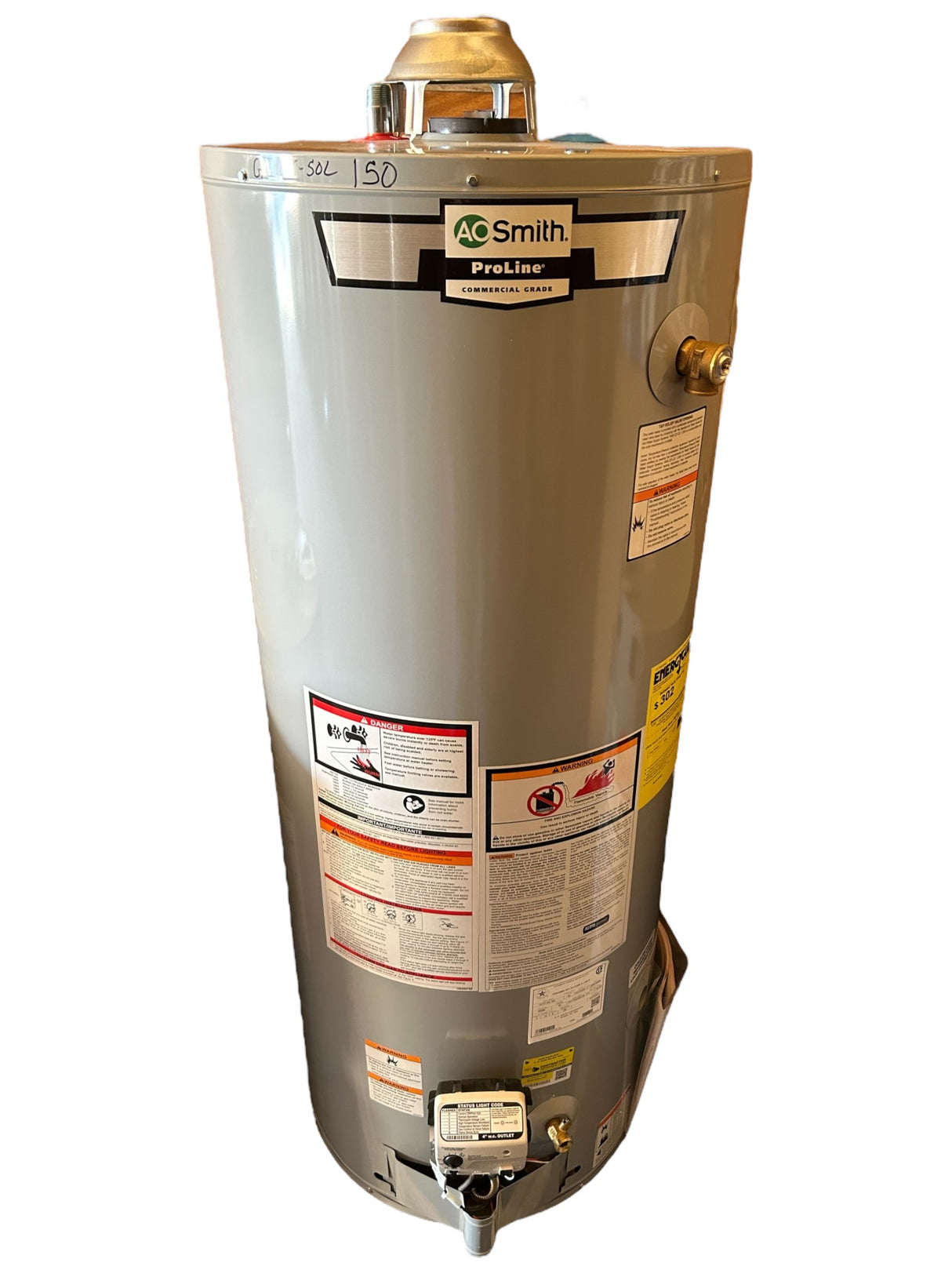

Ao Smith GCRT-50L ProLine SL Standard Vent Gas Water Heater 50 Gallon 50000 BTU

Product Description

The AO SMITH GCRT-50L ProLine gas water heater is designed for economical performance and long-lasting value. Featuring a 50-gallon tank and a 50,000 BTU gas burner, it delivers a first hour rating of 92 gallons and a recovery rate of 58 gallons per hour. It meets Low NOx emission requirements and carries a 6-year limited tank warranty.

• Features intelligent control logic with enhanced operating parameters.
• Equipped with a Green Choice gas burner that reduces NOx emissions.
• Includes a DynaClean diffuser dip tube to reduce lime and sediment buildup.

Product Highlights

This 50-gallon water heater offers efficient heating and corrosion resistance for residential use.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: GCRT-50L
• Country of Origin: US

Technical Specifications

• R-Value: 8
• BTU Input: 50000
• Fuel Type: Natural Gas
• Vent Size: 4"
• Vent Type: Atmospheric
• Energy Factor: 0.60
• Depth (Inches): 22"
• Gas Connection: 1/2"
• Height (Inches): 60.75"
• Water Connection: 3/4"
• Diameter (Inches): 22"
• Energy Star Rated: No
• Capacity (Gallons): 50
• Intended Household: 2-3 Person
• Recovery 90°F Rise: 58 GPH
• 1st Hour Delivery (Gallons): 92
• Max Pressure (PSI): 150
• ASME: No
• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.61
• Maximum BTUs: 50,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Blanket Included: No
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 50.50
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Product Tier: ProLine®
• Side Loop: Yes
• Height: 60.75"
• Series: GCRT-50L
• Heating Capacity: 50,000 Btu/hr
• Recovery Rate: 54 gph at 90 deg F
• Tall or Short: Tall
• Tank Capacity: 50 gal
• Ultra Low NOx: No
• Pressure Rating: 150 psi
• Height to Gas Valve: 12.25"
• Manufacturer: A.O. Smith
• Manufacturer #: 100218008
