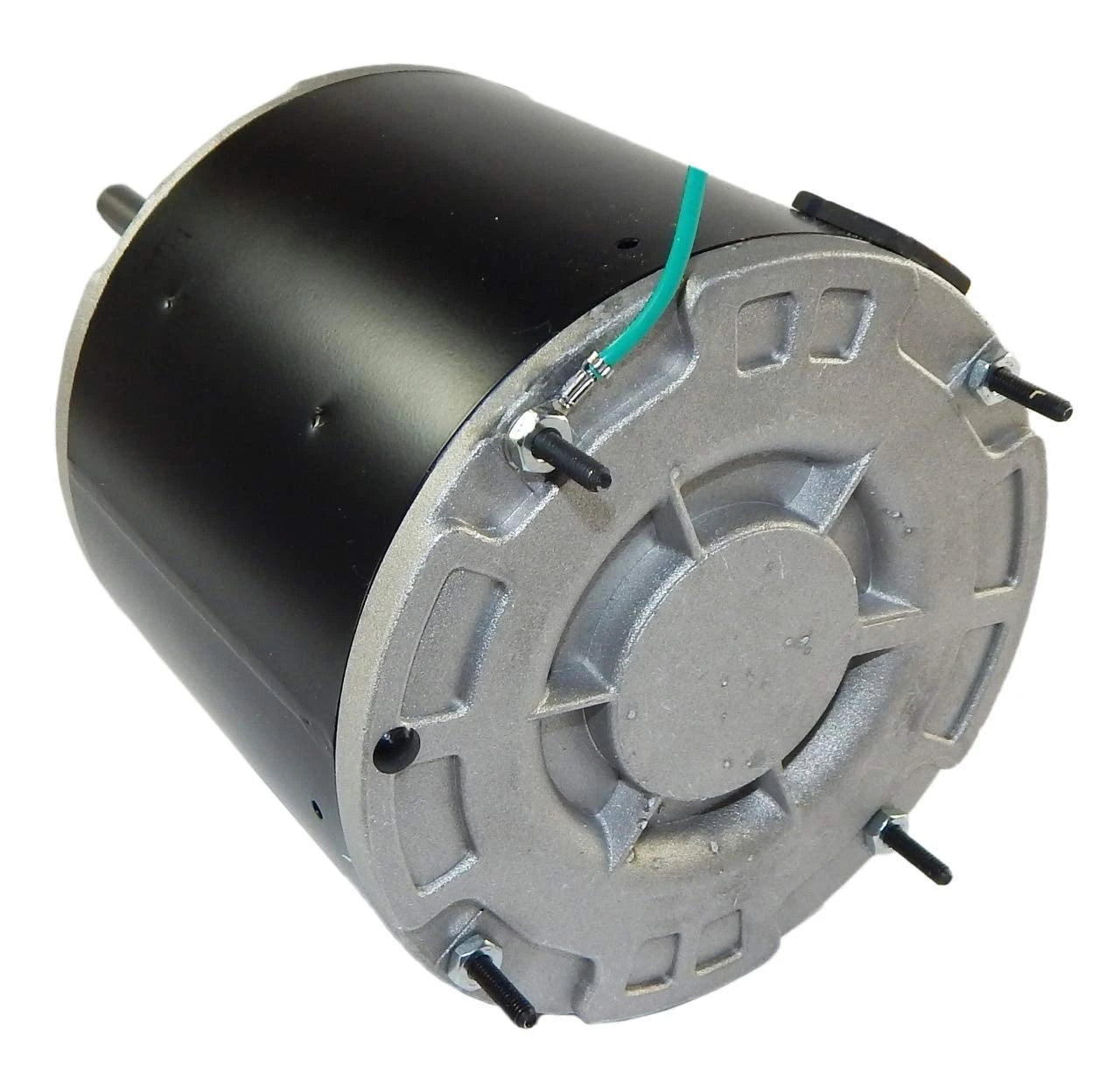

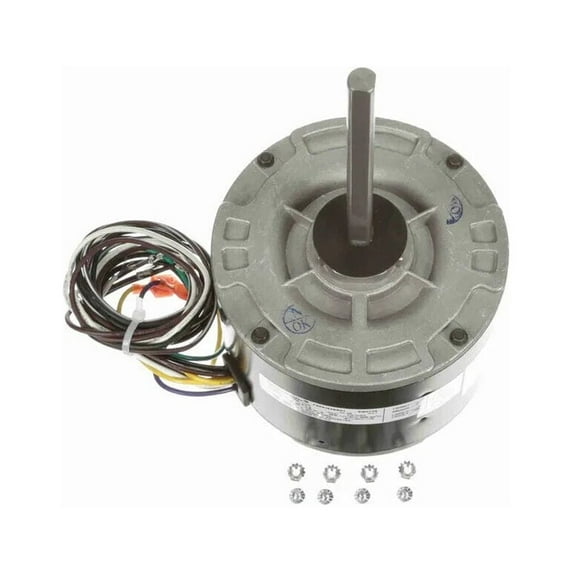

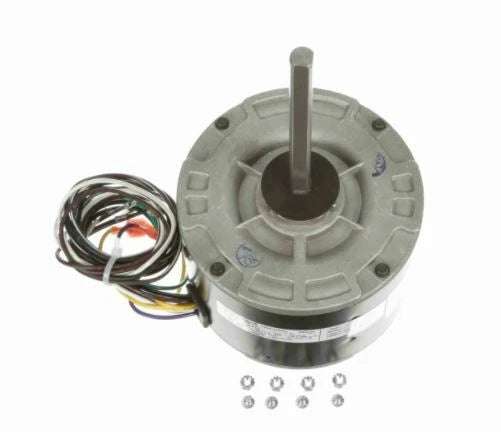

Ao Smith em3728f Motor 1/4 hp replacement mpn

Product Description

The AO SMITH EM3728F motor is a 1/4 HP motor designed for various applications. It operates on 208-230V and features a totally enclosed design with ball bearings. This single-speed motor runs at 1075 RPM and includes a reversing plug for added flexibility. It is suitable for air conditioning units, ensuring effective heat dissipation for optimal cooling system efficiency.

• Operates at 1075 RPM for efficient heat dissipation.
• Designed for 208-230V electrical systems.
• Features a rolled steel frame for durability.

Product Highlights

The AO SMITH EM3728F motor ensures reliable performance for air conditioning units with its efficient design and durable construction.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: EM3728F

Technical Specifications

• HP: 1/4
• Voltage: 208-230
• Frame: 48Y
• Hertz: 60HZ
• Amps: 2
• Service Factor: 1.0
• Capacitor Required: 5MFD - NOT INCLUDED
• Enclosure: Totally Enclosed
• Bearing: Ball
• Speed: Single Speed
• Type: PSC
• RPM: 1075
• Rotation: Reversing Plug
• Shaft: 1/2" x 6"
• Features: Extended thru-bolts opposite shaft end
• Manufacturer part number: EM3728F
• Material: Rolled Steel
• Brand: PRO-E SERIES CENTURY
