Ao Smith em3587 motor 1/2 hp 1075 rpm 3-speed

Product Description

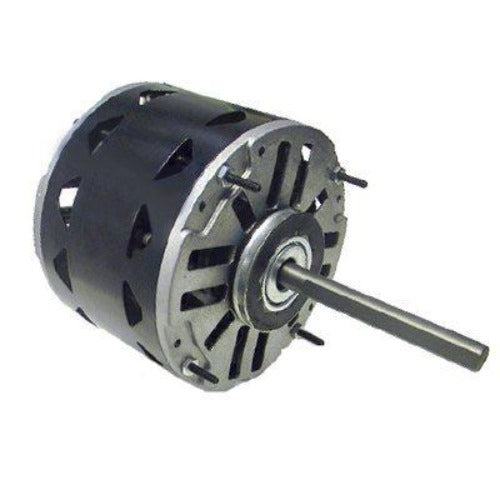

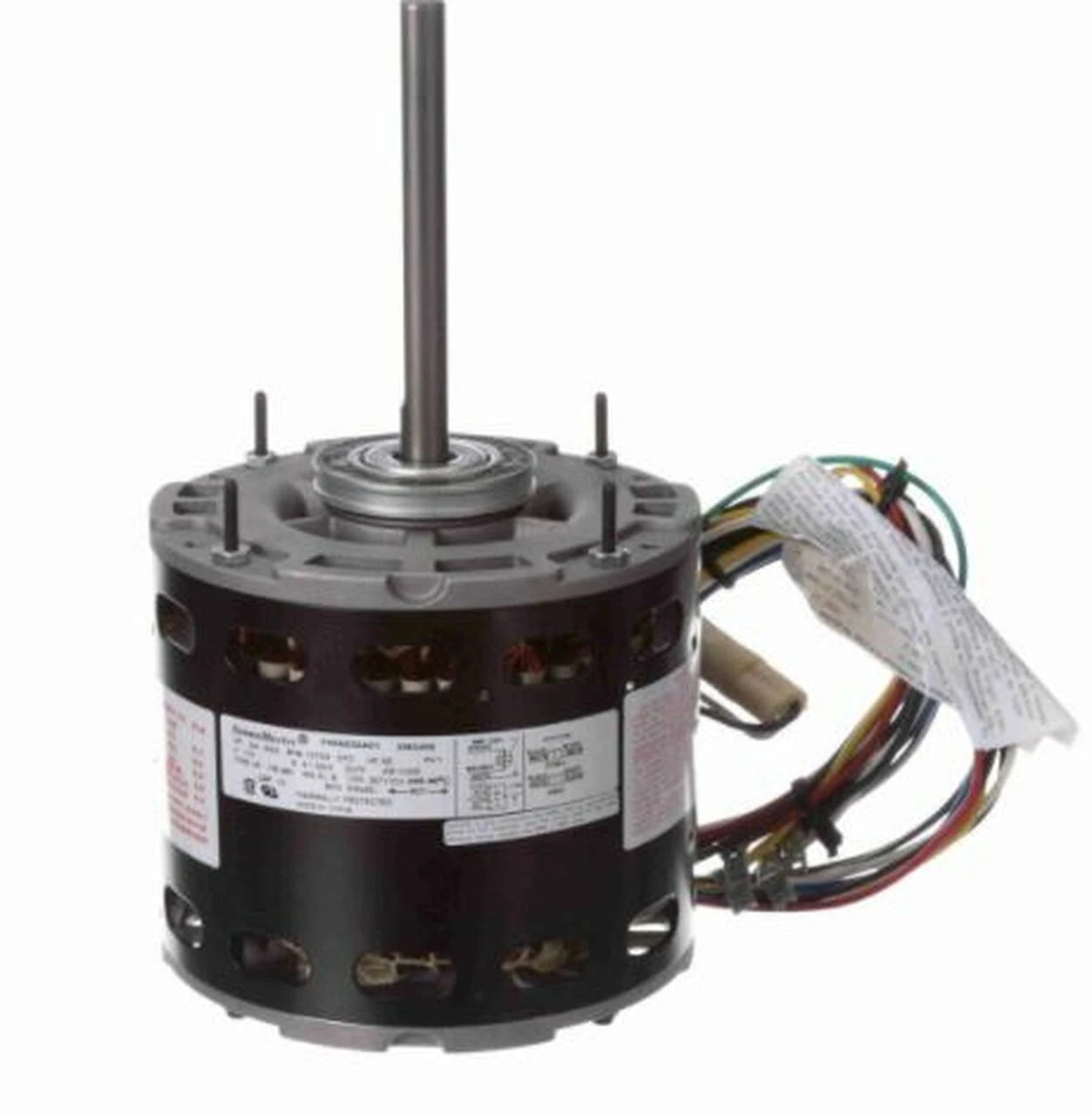

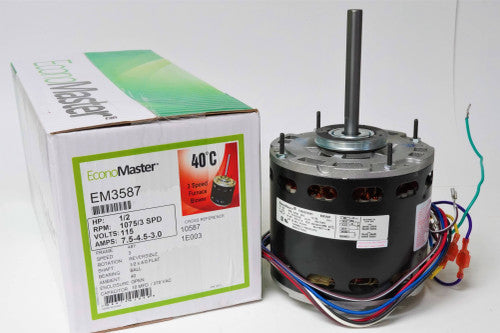

The AO SMITH EM3587 motor is a 1/2 HP, 115V, 3-speed direct drive furnace motor. It features a permanent split capacitor and is designed for furnace blowers, exhaust fans, and whole house fan applications. The motor has a reversible rotation and thermally protected for safety.

• 1/2 HP, 1075 RPM, 7.5 Amps, 115V, 3-Speed
• Open enclosure with resilient rings for mounting
• Reversible rotation with a reversing plug

Product Highlights

This motor is ideal for HVAC blower motor replacement, offering reliable performance in a compact design.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: EM3587

Technical Specifications

• Horsepower: 1/2
• Voltage: 115 Volts
• Amps: 7.50
• RPM: 1075
• Frequency: 60 Hz
• Length: 4-7/8"
• Enclosure: Open
• Shaft Dim.: 1/2\"
• Type: Permanent Split Capacitor
• Speeds: 3
• Diameter: 5-5/8"
• Frame: 48
• Bearings: Sleeve
• Rotation: Reversible
• Protector: Thermally Protected
• Phase: 1
• Ambient Temp.: 40 C
• Capacitor Rating: 10MFD-370V
• HZ: 60
• Service Factor: 1.0
• Capacitor Required: 10 MFD
• Reversing Plug: Yes
• Shaft: 1/2" x 4.5"
• Mounts: Resilient Rings
