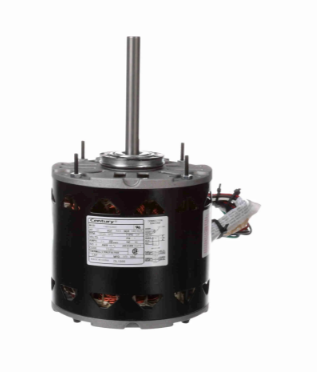

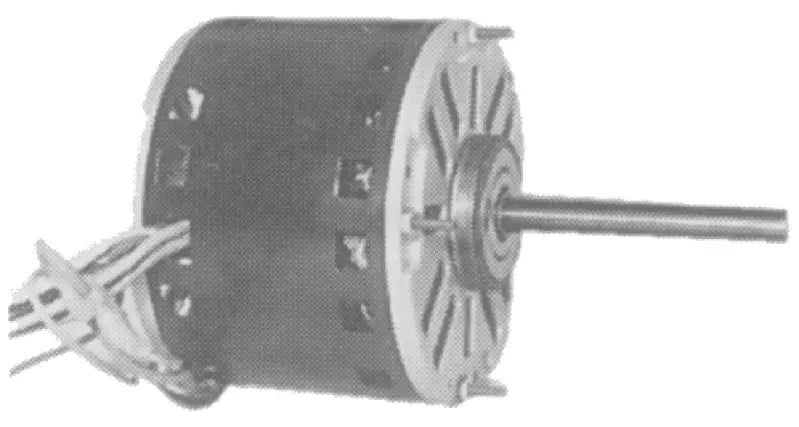

Ao Smith DL1056 1/2 HP, 1075 RPM, 3 Speed, 115 Volts, 48 Frame Direct Drive Blower Motor

Product Description

The AO SMITH DL1056 is a direct drive fan and blower motor with reversible rotation. This 1/2 HP motor operates at 1075 RPM with 115 Volts and 6.5 rated Amps. It features open construction and auto protector, and is designed for use with furnaces, air handlers, and blowers.

• 1/2 HP power
• Operates at 1075 RPM
• Requires 115 Volts

Product Highlights

This motor features sleeve bearing, continuous air over, and includes 2-1/4" rings with 2-1/2" adaptors and 26" leads.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: DL1056
• Country of Origin: China

Technical Specifications

• Speed: 1075 RPM
• Voltage: 115 Volts
• Horsepower: 0.5 Horsepower
• Item model number: DL1056
• HP: 1/2
• Frame: 48
• Rated Amps: 6.5
• Max Amps: 9.0
• Reversible: Reversible
• Air Over: Open Air Over
• Shaft: 1/2" x 4.5" with Flat
• Capacitor: 10MFD-370V (NOT INCLUDED)
