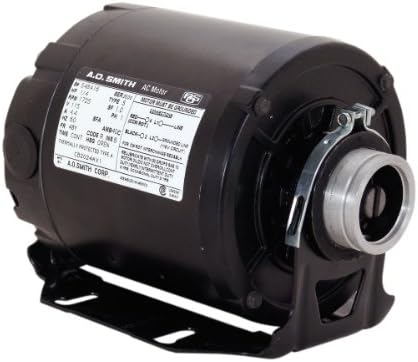

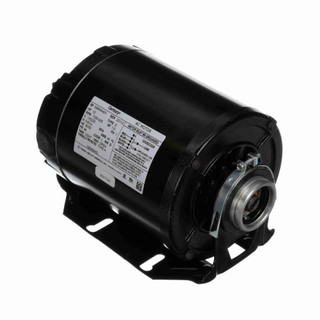

Ao Smith CB2054AD Carbonator Pump Motor 1/2 Hp 1725 RPM

Product Description

The AO SMITH CB2054AD carbonator pump motor is a split phase motor operating at 115/230 volts and 1725 RPM. It features auto protector and reversible rotation. This motor is designed for carbonator pump applications. It has a 48Y frame and sleeve bearings.

• 1/2 Hp
• 1725 RPM
• 115/230 volts

Product Highlights

This carbonator pump motor features a split phase, auto protector, and reversible rotation for versatile use.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: CB2054AD

Technical Specifications

• Manufacturer: Century Electric/AO Smith Motors Co
• Part Number: CB2054AD
• Item model number: CB2054AD
• Power Source: Ac/dc
• Voltage: 115/230
• Horsepower: 0.5 Horsepower
• Item Package Quantity: 1
• Speed: 1725 RPM
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: Open Enclosed
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: Special
• Frequency: 60Hz
• Diameter: 5.5 in
• Length: 5.44 in
• Bearings: Sleeve
• Full Load Amps: 6.8/3.4
• Mount: 48Y
• Class B Insulation: Class B Insulation
