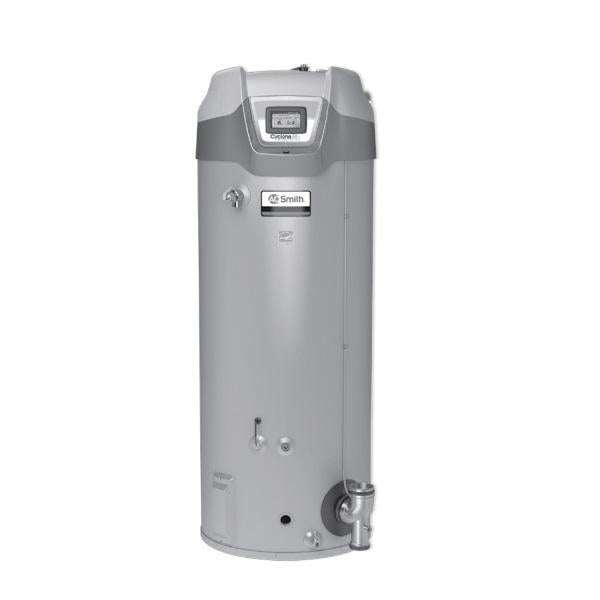

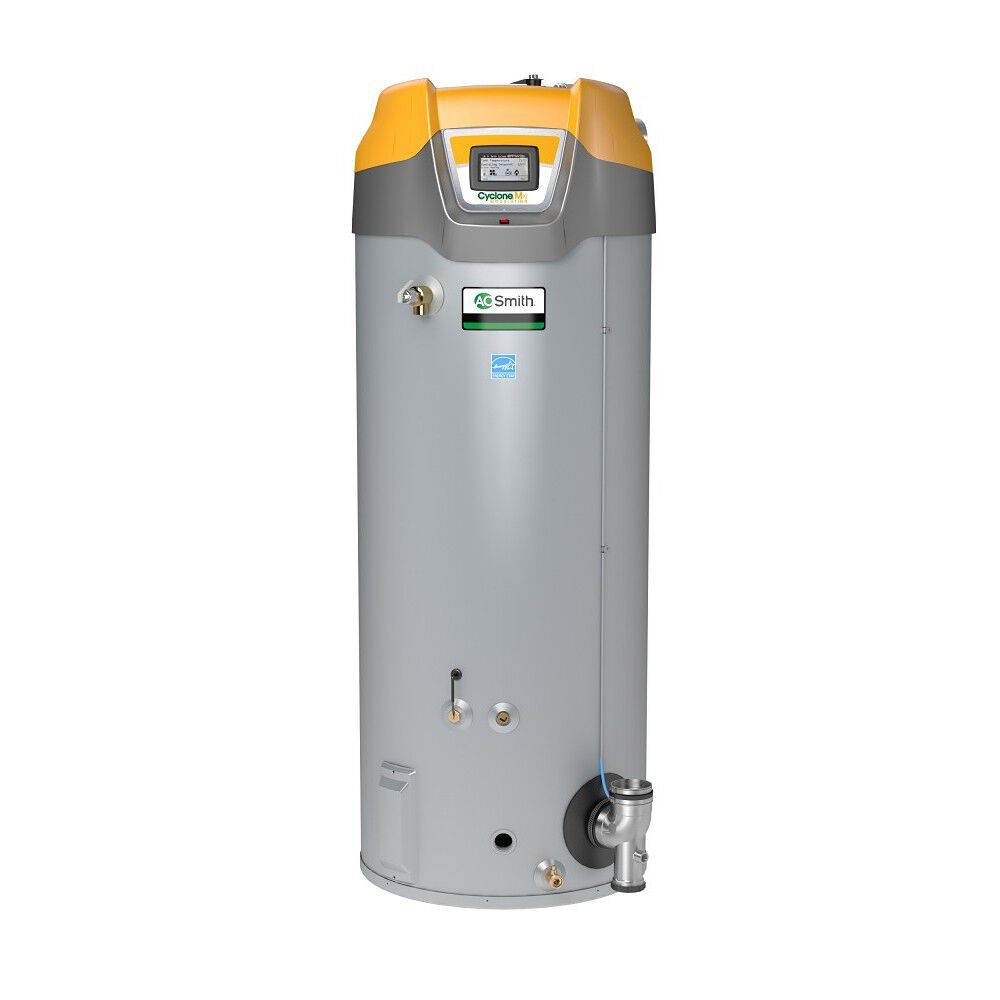

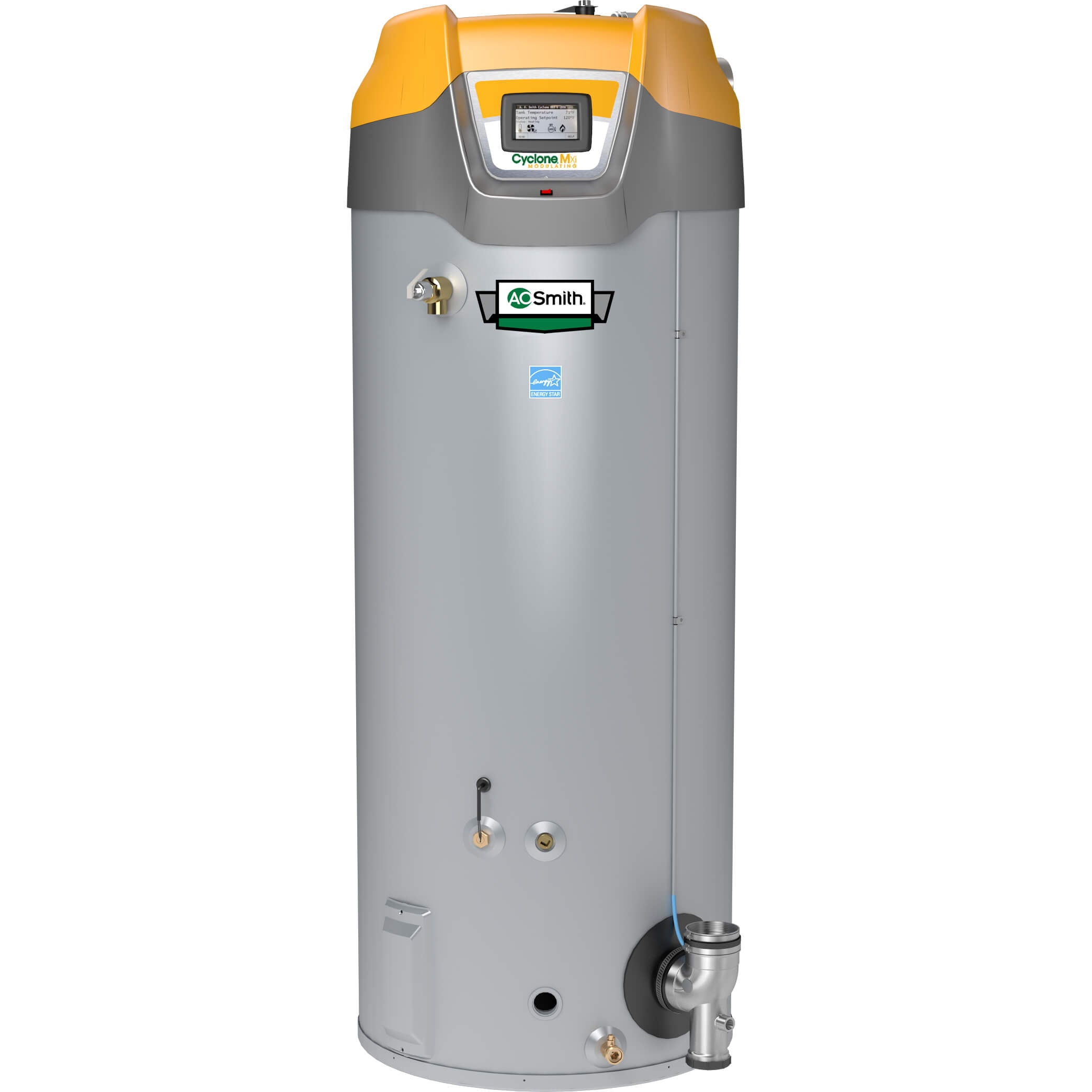

Ao Smith BTH-120A Cyclone tank water heater 120,000 BTU (60 gallon)

Product Description

The AO Smith BTH-120A is a Cyclone tank-type commercial natural gas water heater with 120,000 BTU input and a 60 gallon capacity. It features an intelligent control system with an LCD display, a submerged combustion chamber with a helical heat exchanger coil, powered anodes and PERMAGLAS ultra coat glass lining for corrosion protection. The unit uses a 3-inch vent and is ASME certified, with high thermal efficiency and high recovery rates for commercial plumbing applications.

• 120,000 BTU input, 60 gallon tank with submerged helical heat exchanger coil for efficient heat transfer
• Intelligent control system with LCD display, built-in diagnostics and remote monitoring compatibility
• Powered anodes, PERMAGLAS ultra coat glass lining, ASME construction and 3 in vent

Product Highlights

Commercial natural gas water heater; 120,000 BTU; 60 Gal; 95% efficiency; 3 in vent; ASME certified.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: BTH-120A
• Country of Origin: USA

Technical Specifications

• Brand: AO Smith
• MPN: BTH-120A
• Model: BTH-120A
• Product Type: Commercial tank water heater
• Capacity: 60 Gal
• Heating Capacity / Input BTU: 120,000 BTU/hr
• Fuel Type: Natural Gas
• Efficiency: 95%
• ASME Certified: Yes
• Vent Size: 3 in
• Vent Type: ABS, PVC, CPVC compatible
• Heat Exchanger: Submerged combustion chamber with helical heat exchanger coil
• Burner Type: Modulating down-fired pre-mix burner
• Ignition Type: Electronic ignition
• Recovery 40°F Rise: 345 GPH
• Recovery 90°F Rise: 154 GPH
• Recovery 140°F Rise: 99 GPH
• Water Connection: 1-1/2 in NPT
• Gas Connection: 1/2 in
• Maximum Pressure: 160 psi
• Voltage: 120 V
• Frequency: 60 Hz
• Dimensions: 27-3/4 in diameter x 55-1/2 in height
• Weight: 490 lbs
• Tank Lining: PERMAGLAS ultra coat glass lining
• Powered Anodes: Yes
• Remote Monitoring: iCOMM remote monitoring (network ready)
• Temperature Range: 90 to 180 deg F
• T&P Relief Valve: Yes
