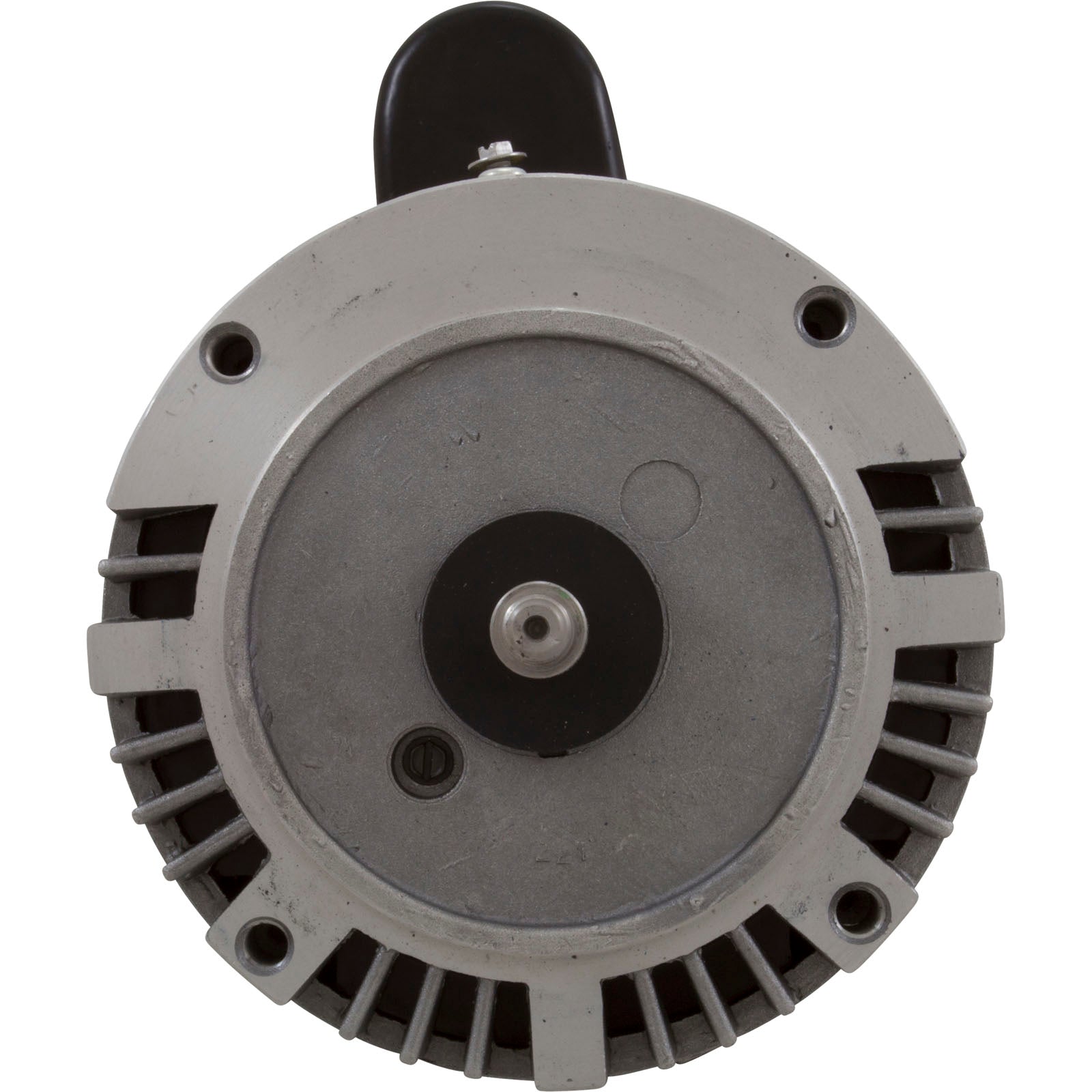

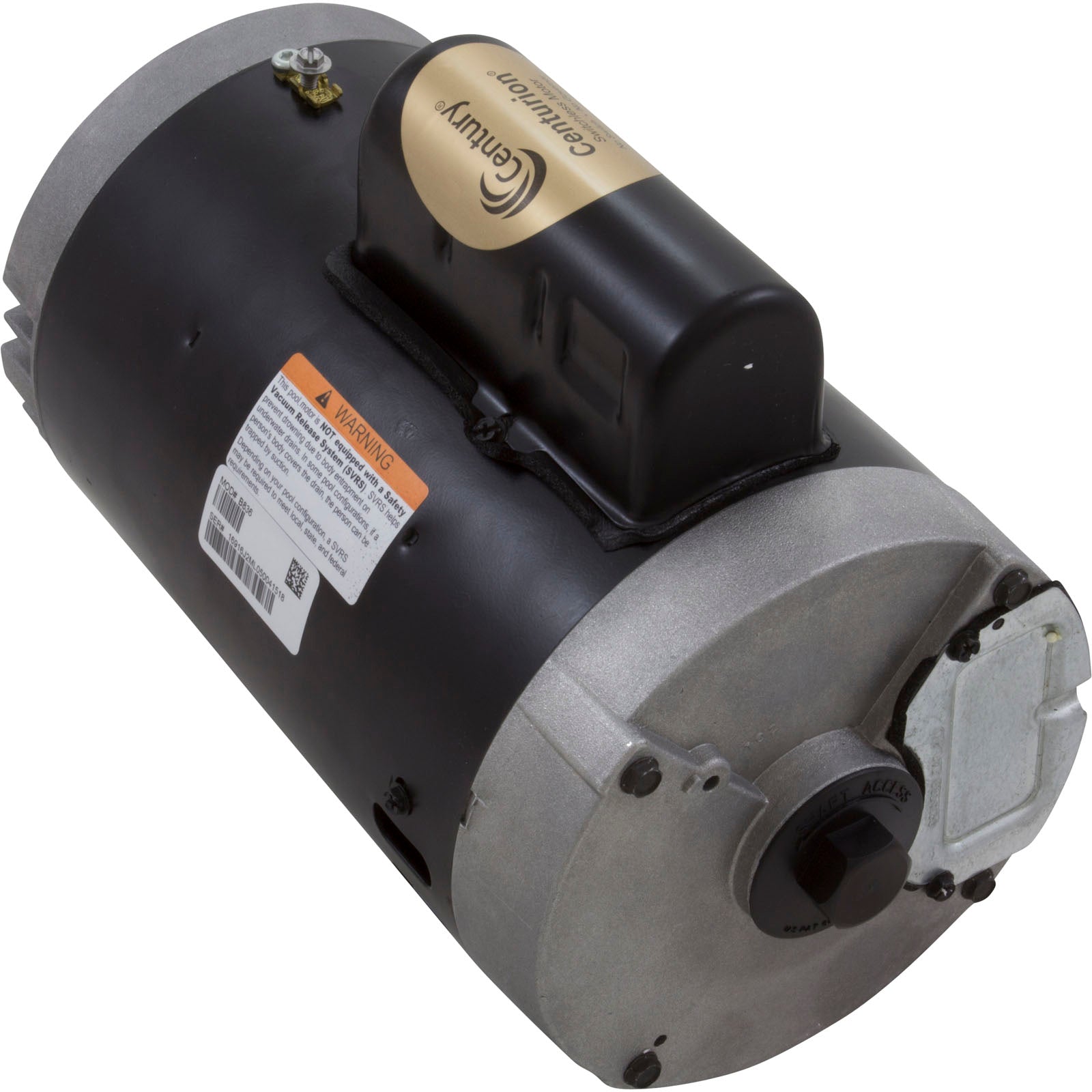

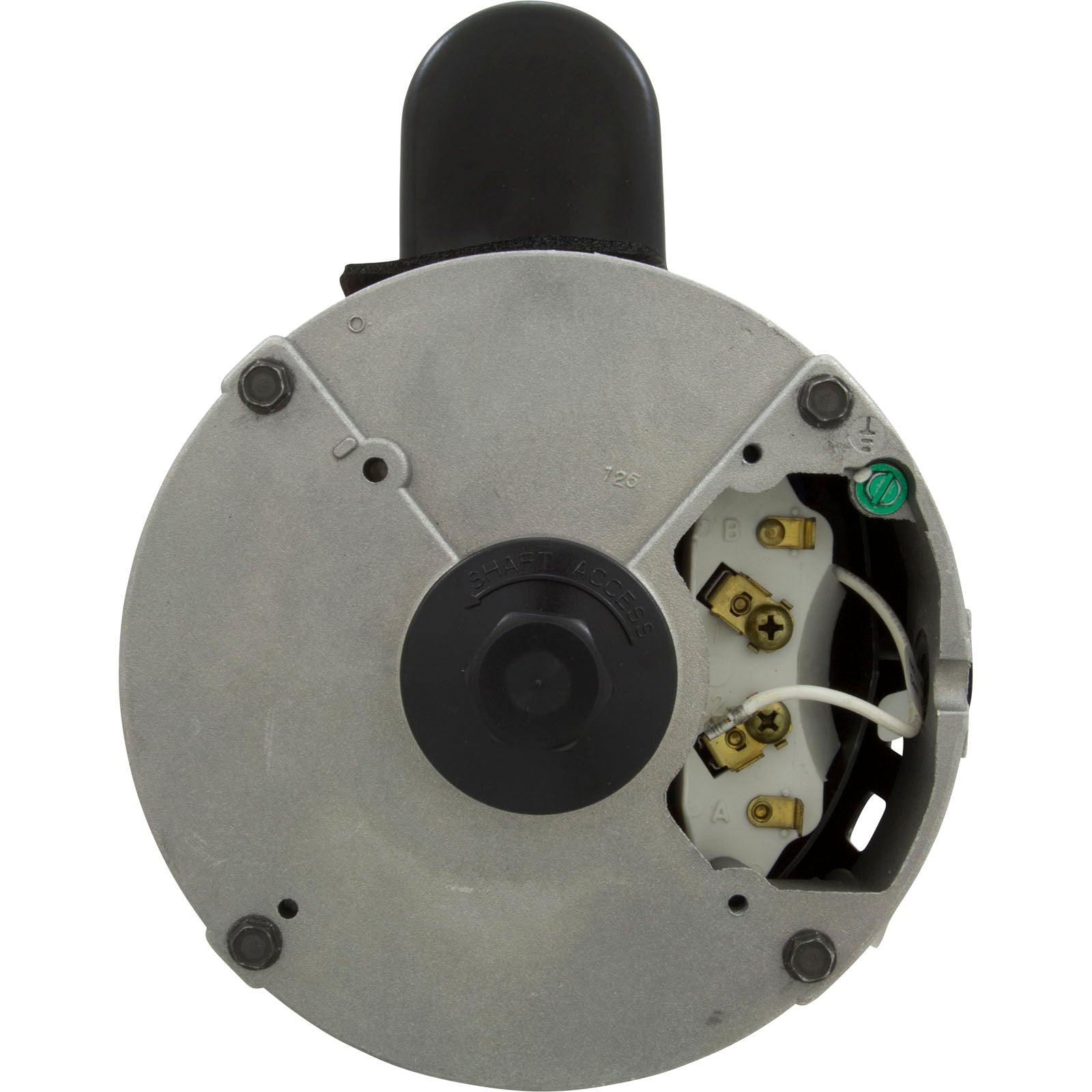

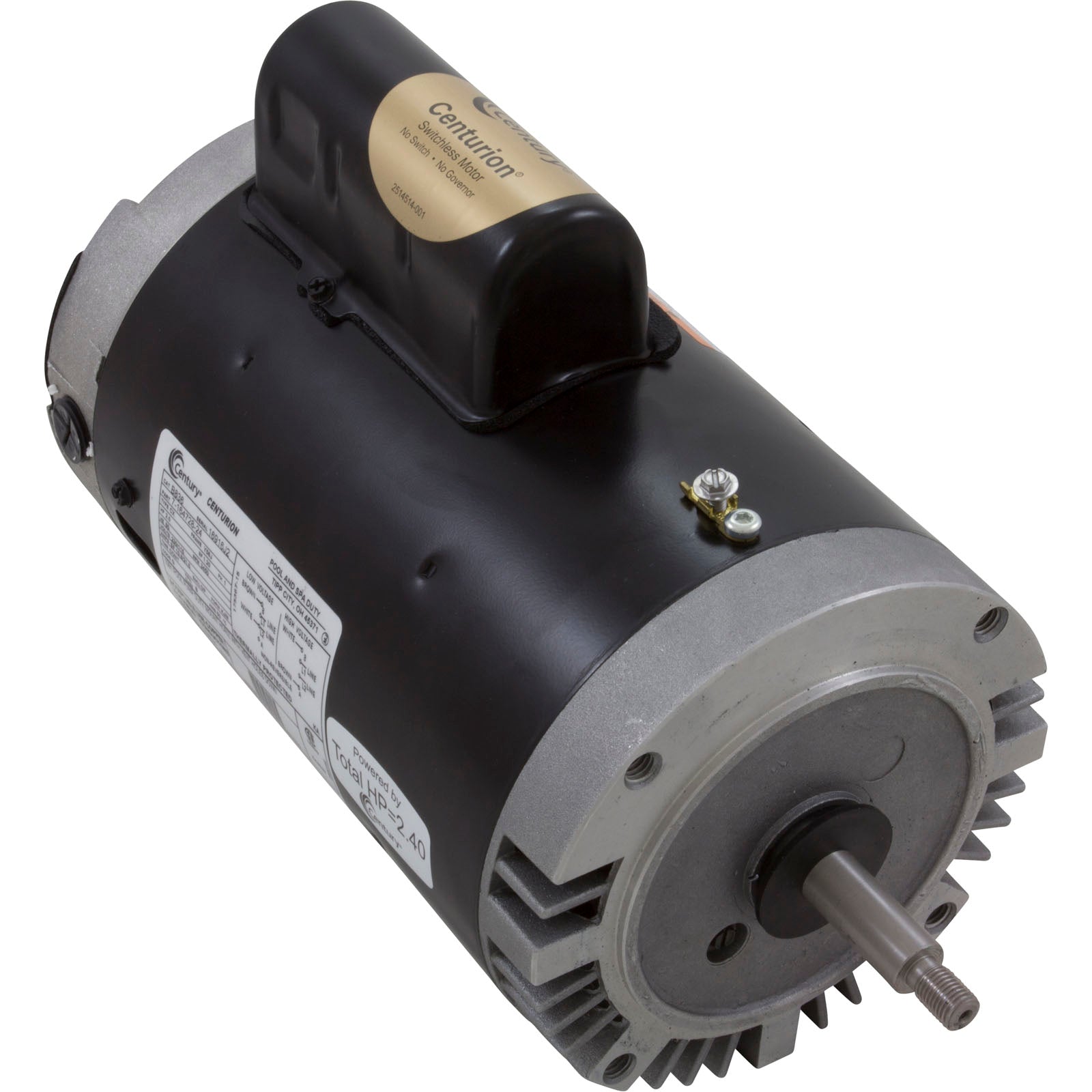

Century B836 Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56J Frame, 3,450 Nameplate RPM

Product Description

The Century B836 Pool Pump Motor is a reliable solution for pool pump applications. It has a power rating of two horsepower and operates on both one hundred fifteen volt and two hundred thirty volt systems. This single speed motor is designed with a 56J frame and operates at a nominal speed of three thousand four hundred fifty RPM.

• Continuous duty cycle for prolonged use.
• Built with thermal protection to enhance safety.
• Compatible with various pool pump configurations.

Product Highlights

This engine is suitable for various types of pumps, offering robust performance and efficiency in pool and spa systems.

Product Information

Standard Information

• HP: 2
• Volts: 115/230V AC
• Phase: Single
• RPM: 3450
• Insulation Class: B
• Max Ambient Temperature: 50 degrees C

Technical Specifications

• Body Diameter: 6.6 in
• Height: 11 in
• Weight: 37 lb
• Motor Design: Permanent Split Capacitor
• Shaft Diameter: 5/8 in
• Duty Cycle: Continuous
• Conduit Box Position: F3
• Motor Frame Material: Steel
