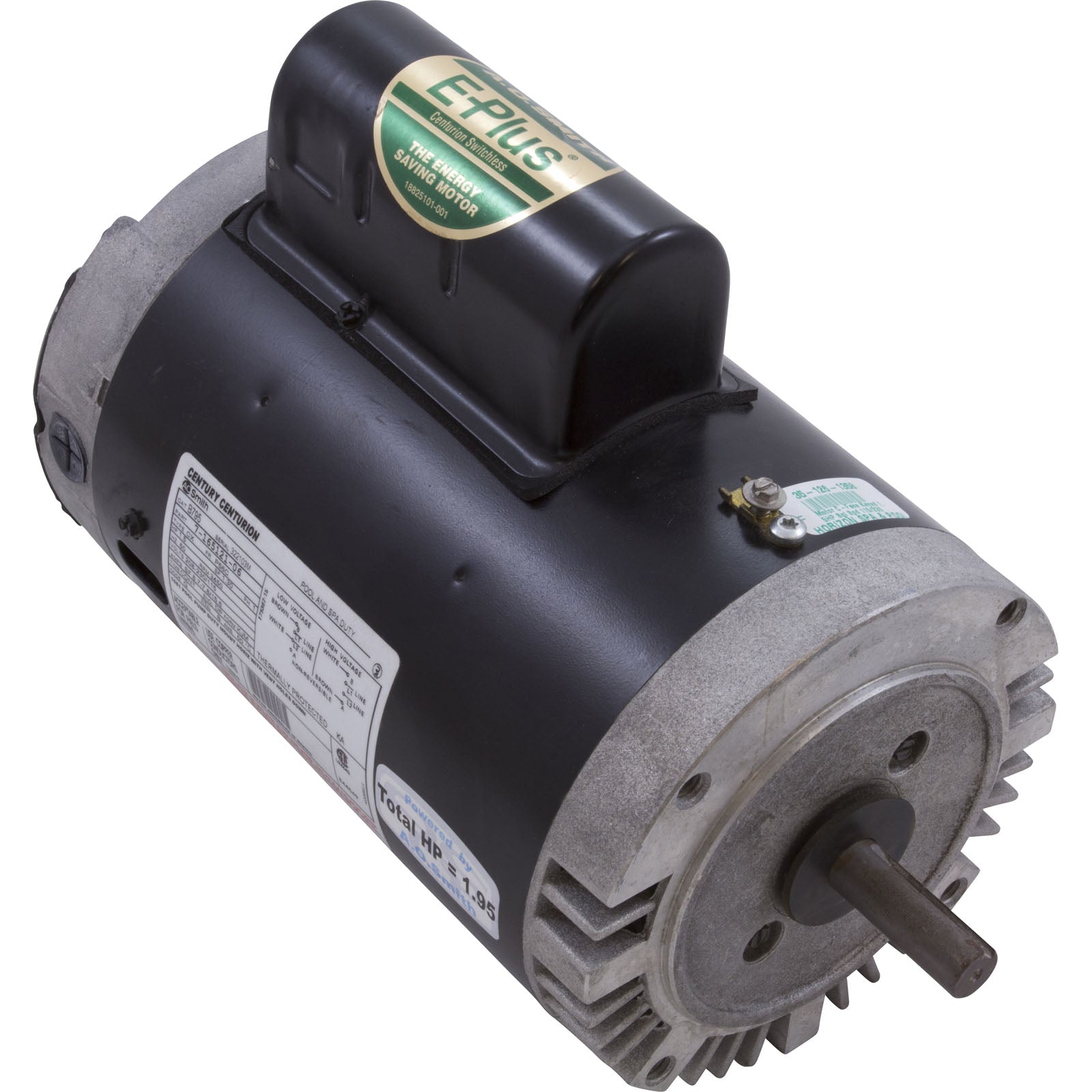

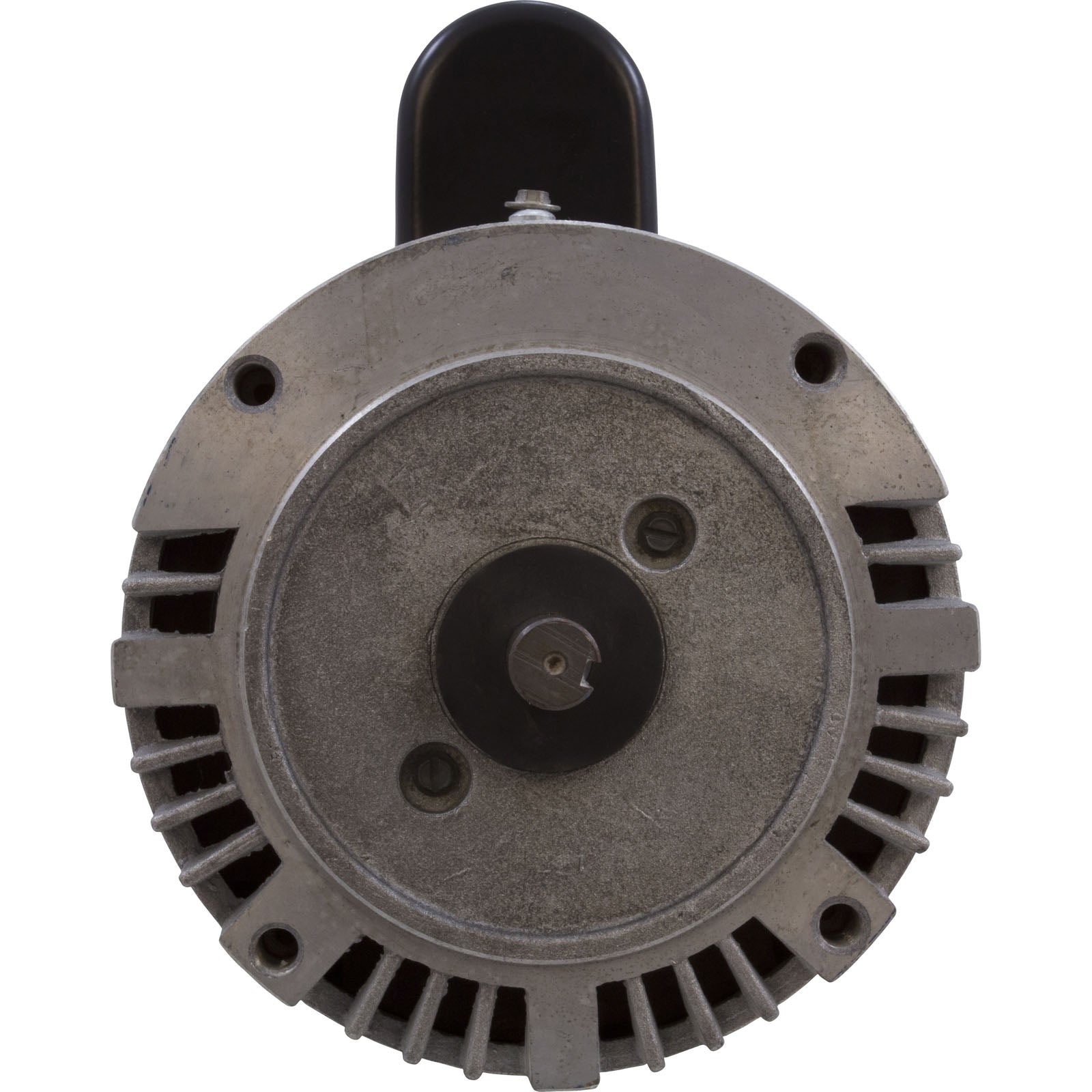

Century B795 Pool Pump Motor, Permanent Split Capacitor, 1 1/2 HP, 56C Frame, 3,450 Nameplate RPM

Product Description

The Century B795 is a reliable pool pump motor with a power output of one and one-half horsepower. Operating on a voltage of one hundred fifteen volts or two hundred eight to two hundred thirty volts, it features a single speed and a 56C frame size. This motor operates effectively at a speed of three thousand four hundred fifty RPM.

• Energy efficient design with a service factor of 1.3.
• Durable construction for long-lasting performance.
• Meets CSA and UL standards for safety.

Product Highlights

This motor is designed for continuous duty applications. It is open dripproof and includes thermal protection.

Product Information

Standard Information

• Brand: Century
• MPN: B795

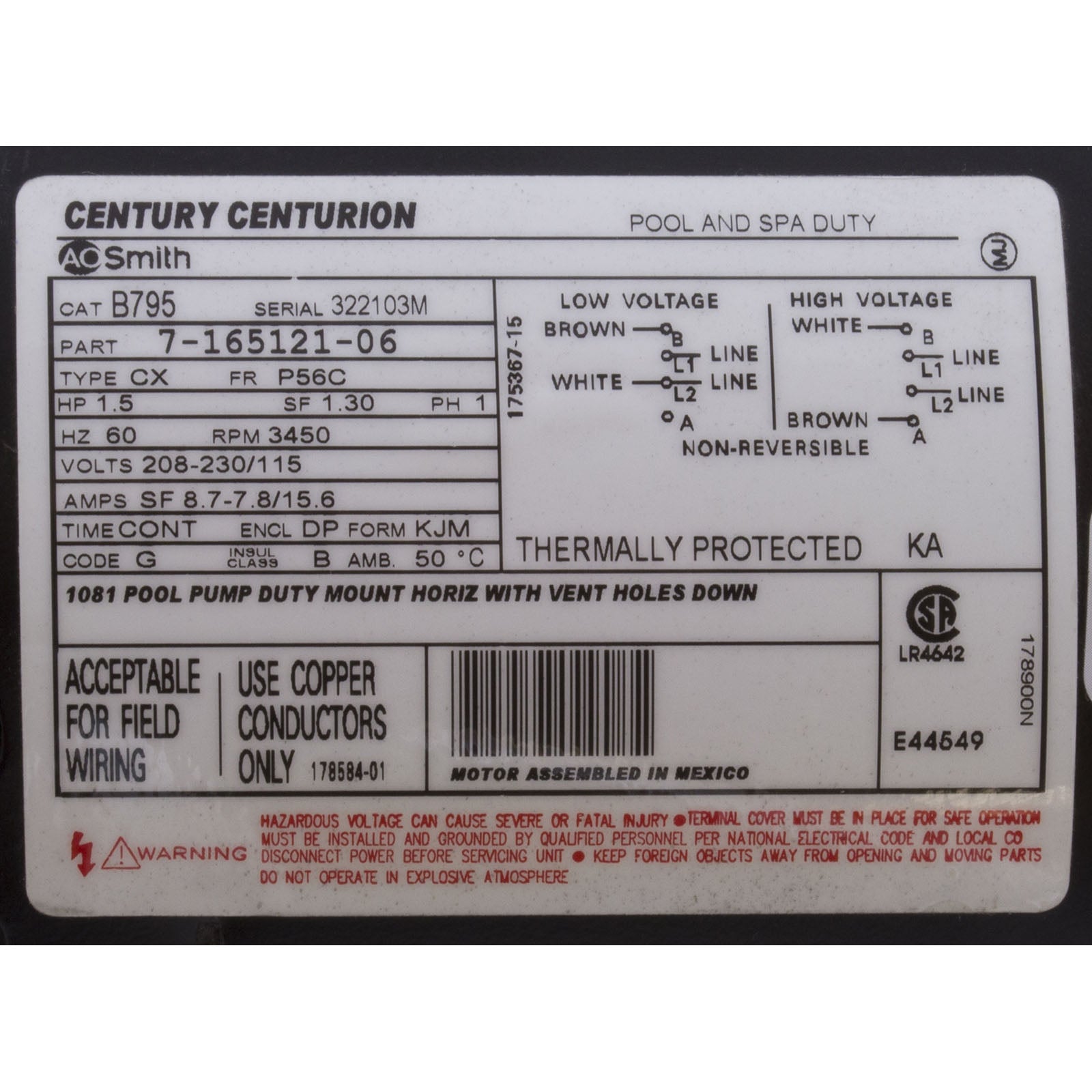

Technical Specifications

• Power: 1 1/2 HP
• Voltage: 115/208-230V AC
• Frame Size: 56C
• RPM: 3,450
• Full Load Amps: 8.7-7.8/15.6
• Insulation Class: B
• Max. Ambient Temperature: 50 Degrees C
• Body Diameter: 6.5 in
