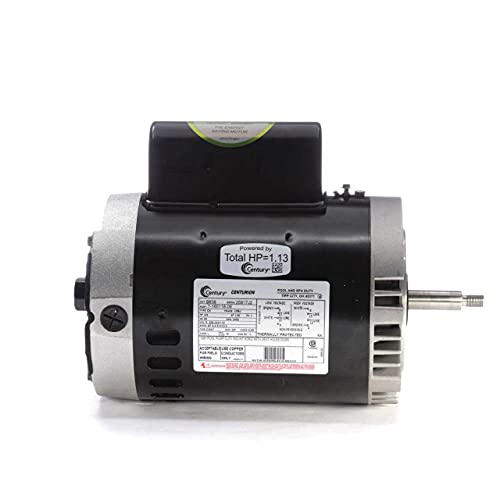

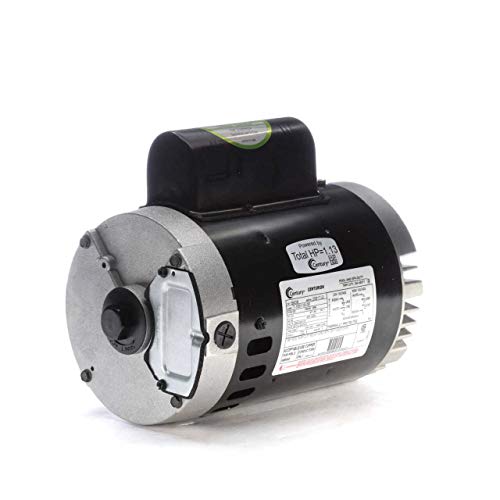

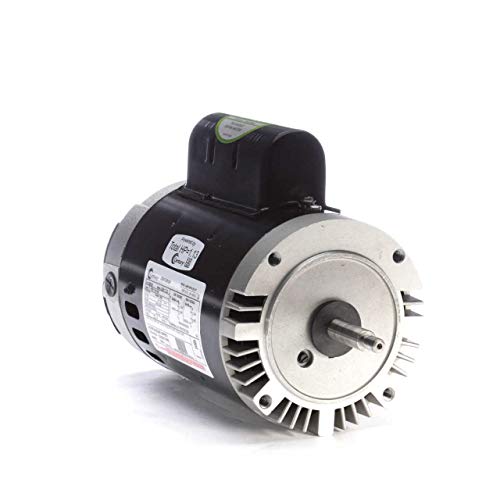

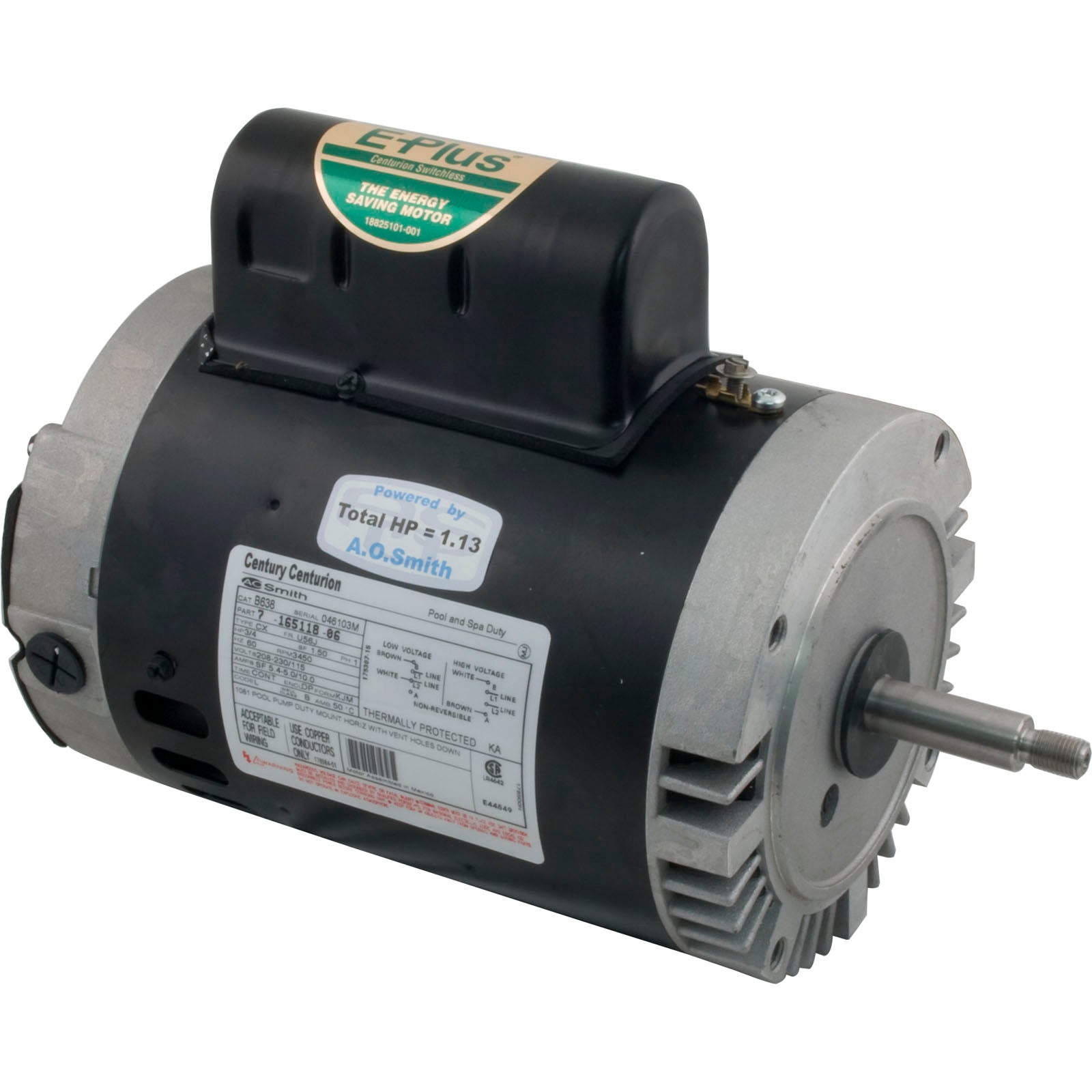

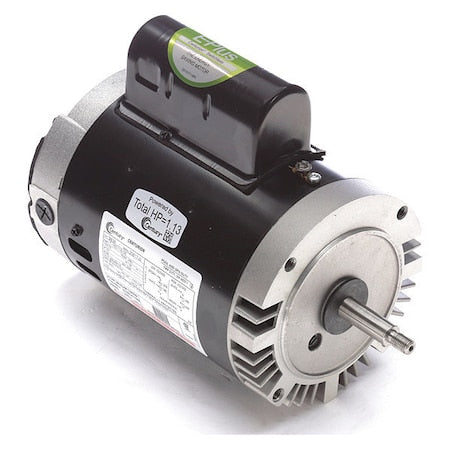

Century B638 Pool Pump Motor 0.75 HP 115/230V 56J Frame

Product Description

The Century B638 Pool Pump Motor is a sturdy and reliable choice designed to provide efficient performance for pool systems. Manufactured by the well-recognized Century brand, this motor ensures prolonged durability and excellent functionality.

• Features a power output of 0.75 horsepower suitable for various pool sizes.
• Operates on both 115 and 230 volts, making it versatile for different electrical setups.
• Designed with a 56J frame and a continuous duty cycle for enduring operation.

Product Highlights

This motor is built to support a single-phase connection and achieves a high speed of 3,450 RPM, making it effective for pool water circulation. It offers a service factor of 1.5, which indicates increased motor life expectancy.

Product Information

Standard Information

• Frame: 56J
• Power: 0.75 HP
• Voltage: 115/230V

Technical Specifications

• Phase: Single
• RPM: 3,450
• Enclosure: Open Dripproof
• Shaft: Threaded 7/16-20 UNF-2A RH
• Amps: 5.4-5.0/10.0
• Temperature rating: 50 Degrees Celsius
• Insulation Class: B
• Service factor: 1.5
