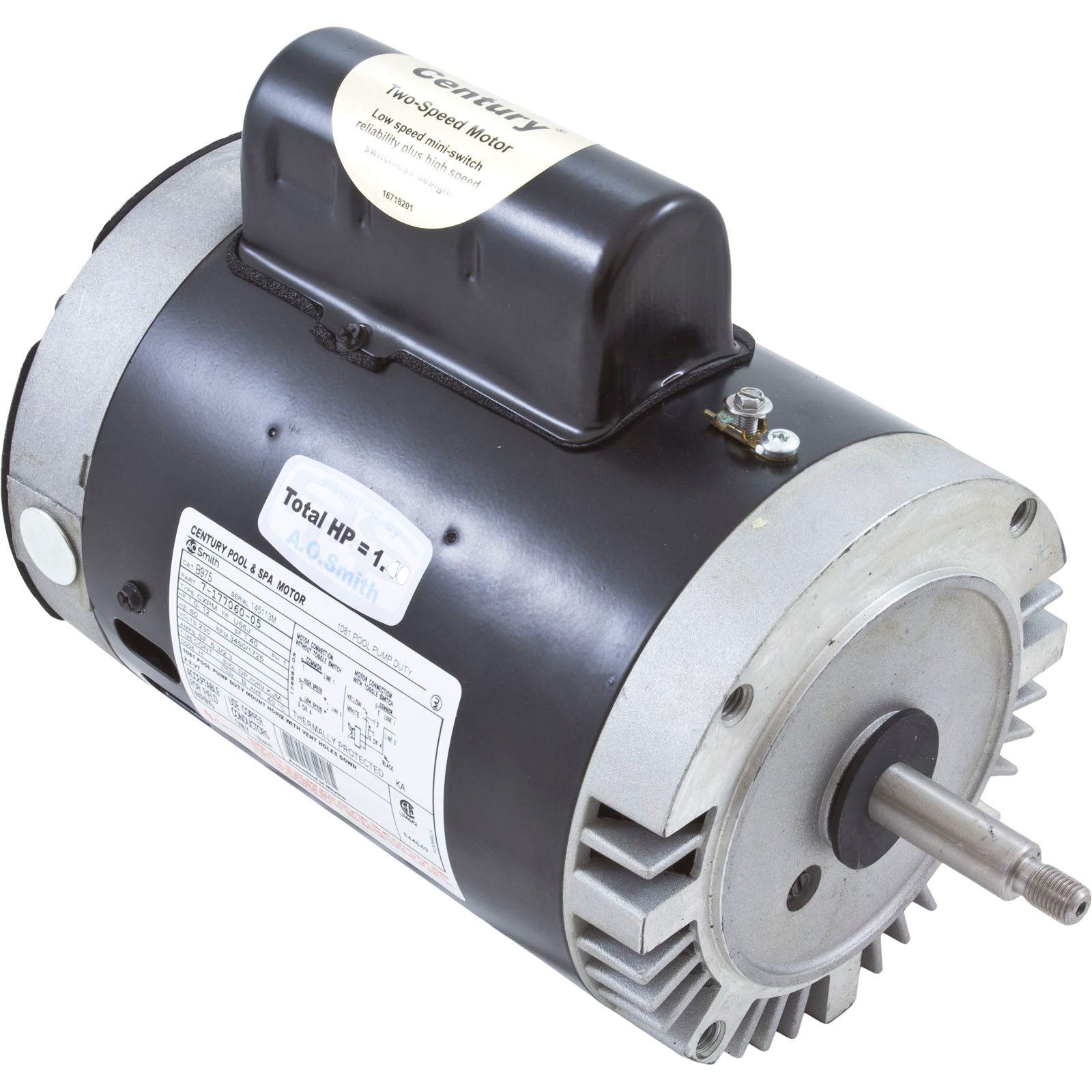

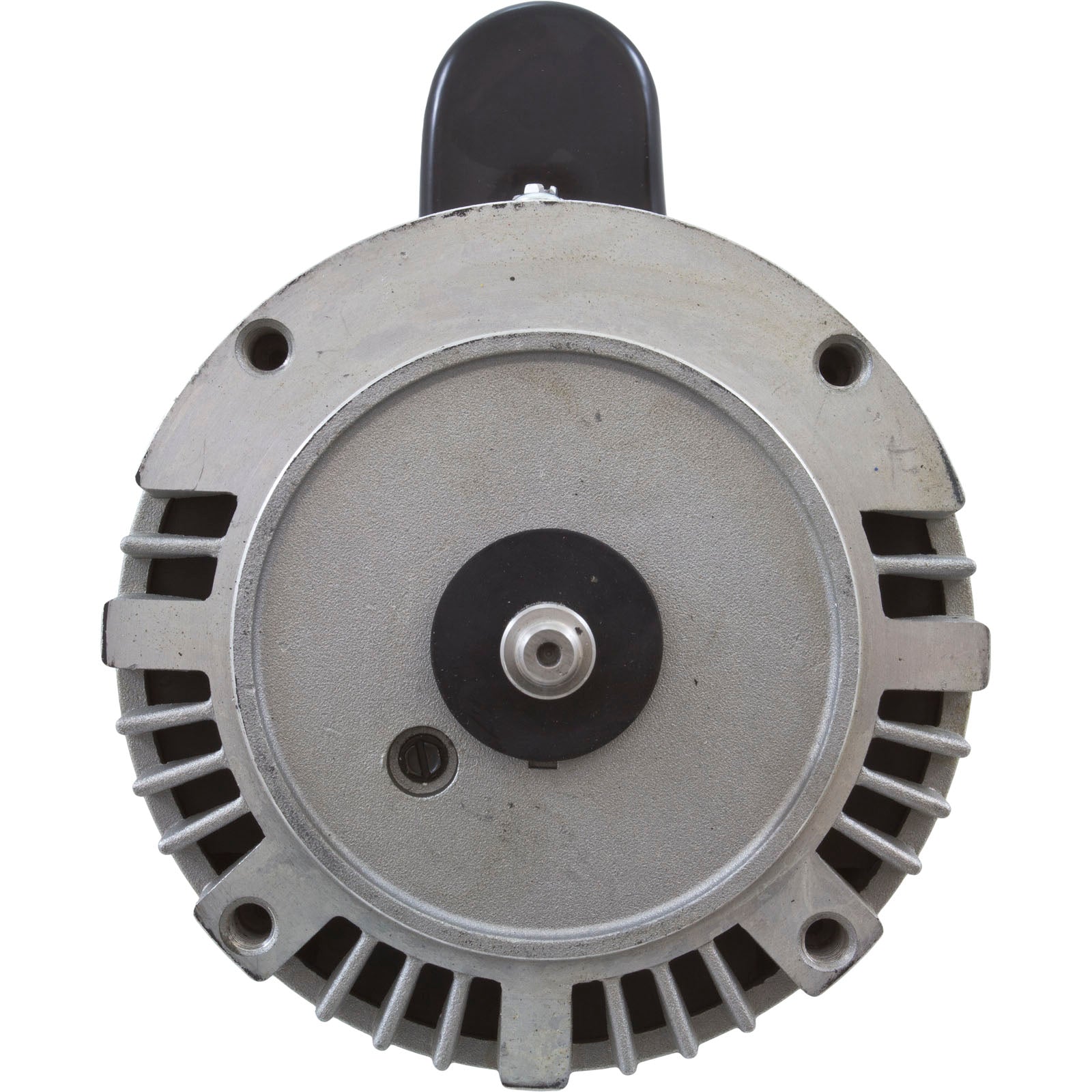

Century B2975 Pool Pump Motor 1 HP 2 Speed 3450/1725 RPM

Product Description

The Century B2975 is a pool pump motor designed for reliable performance. This motor operates at one horsepower with two speed settings. It runs at 3450 RPM for high speed and 1725 RPM for low speed. The motor is rated for 230 volts, making it suitable for various pool applications. The 56J frame ensures compatibility with standard mounting setups.

• One horsepower with two-speed operation
• Voltage rating of 230V AC
• Durable 56J frame design

Product Highlights

This motor features open drip-proof construction, making it suitable for outdoor environments. It incorporates ball bearings for smooth operation and has a threaded shaft for easy installation.

Product Information

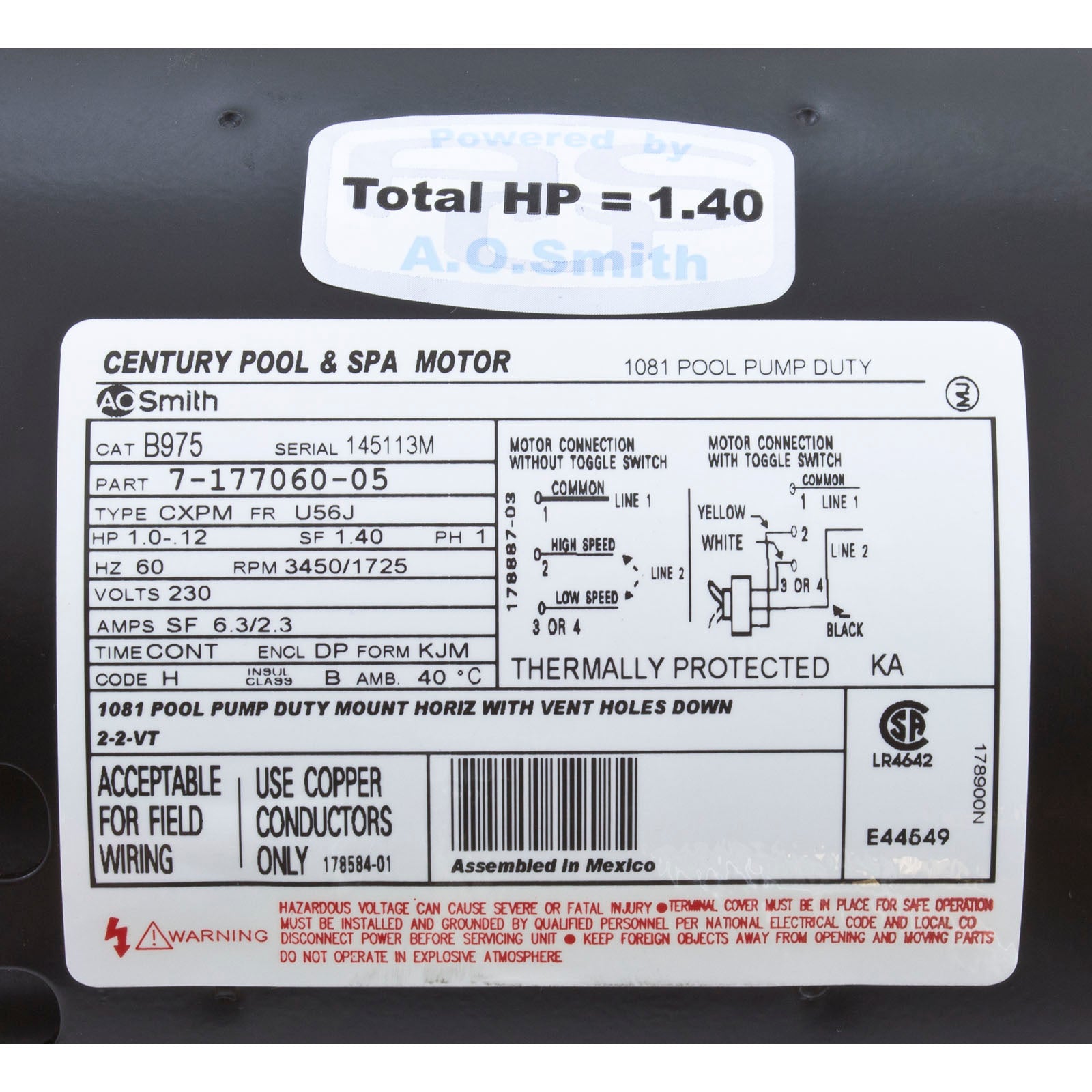

Standard Information

• Application: Pool/Spa Motor
• Duty Cycle: Continuous

Technical Specifications

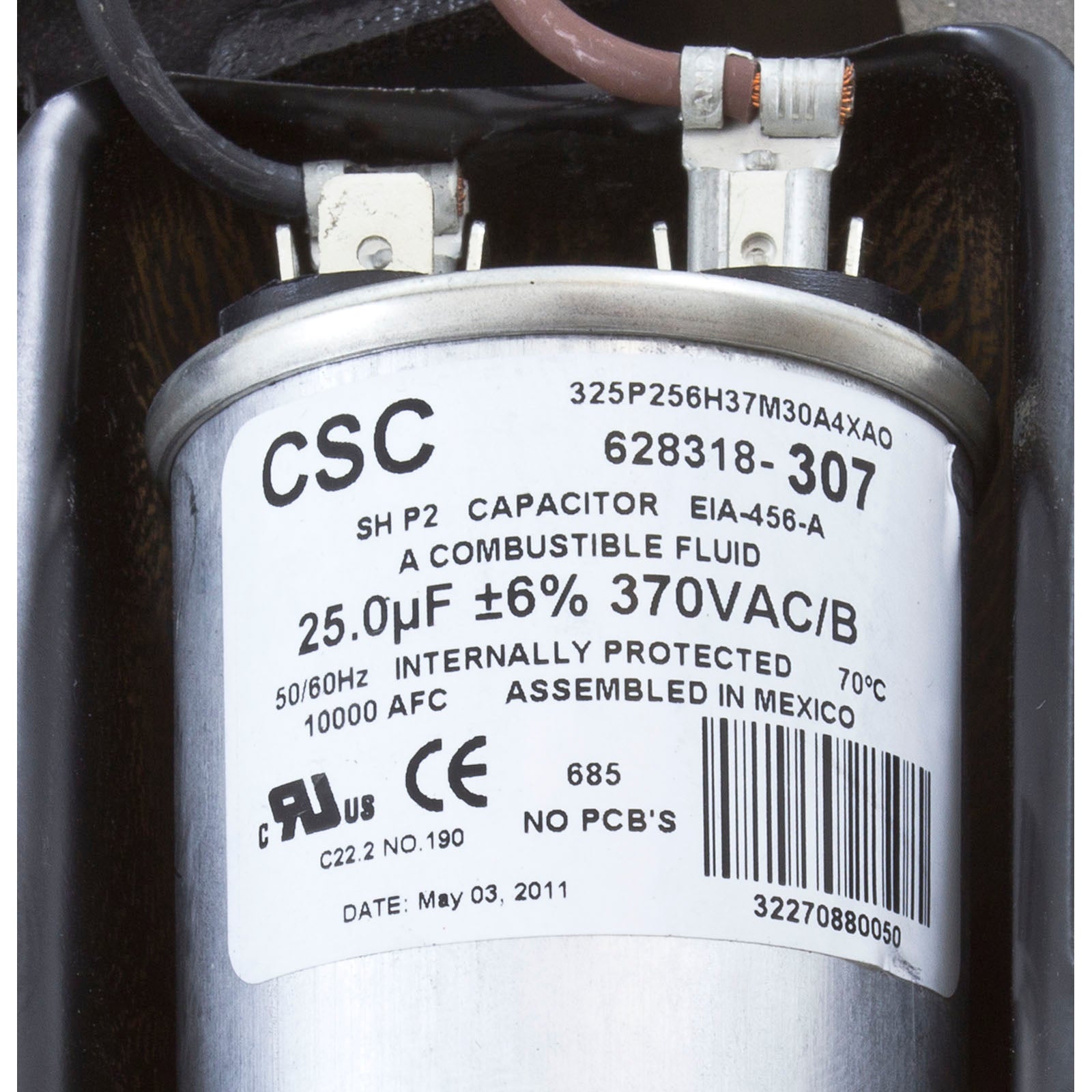

• Motor Design: Permanent Split Capacitor
• Insulation Class: F
• Full Load Amps: 6.6/1.25
• Shaft Diameter: 5/8 inch
• Shaft Length: 2 5/8 inch
• Weight: 32 pounds
• Voltage: 230V AC
• Nameplate RPM: 3450/1725
