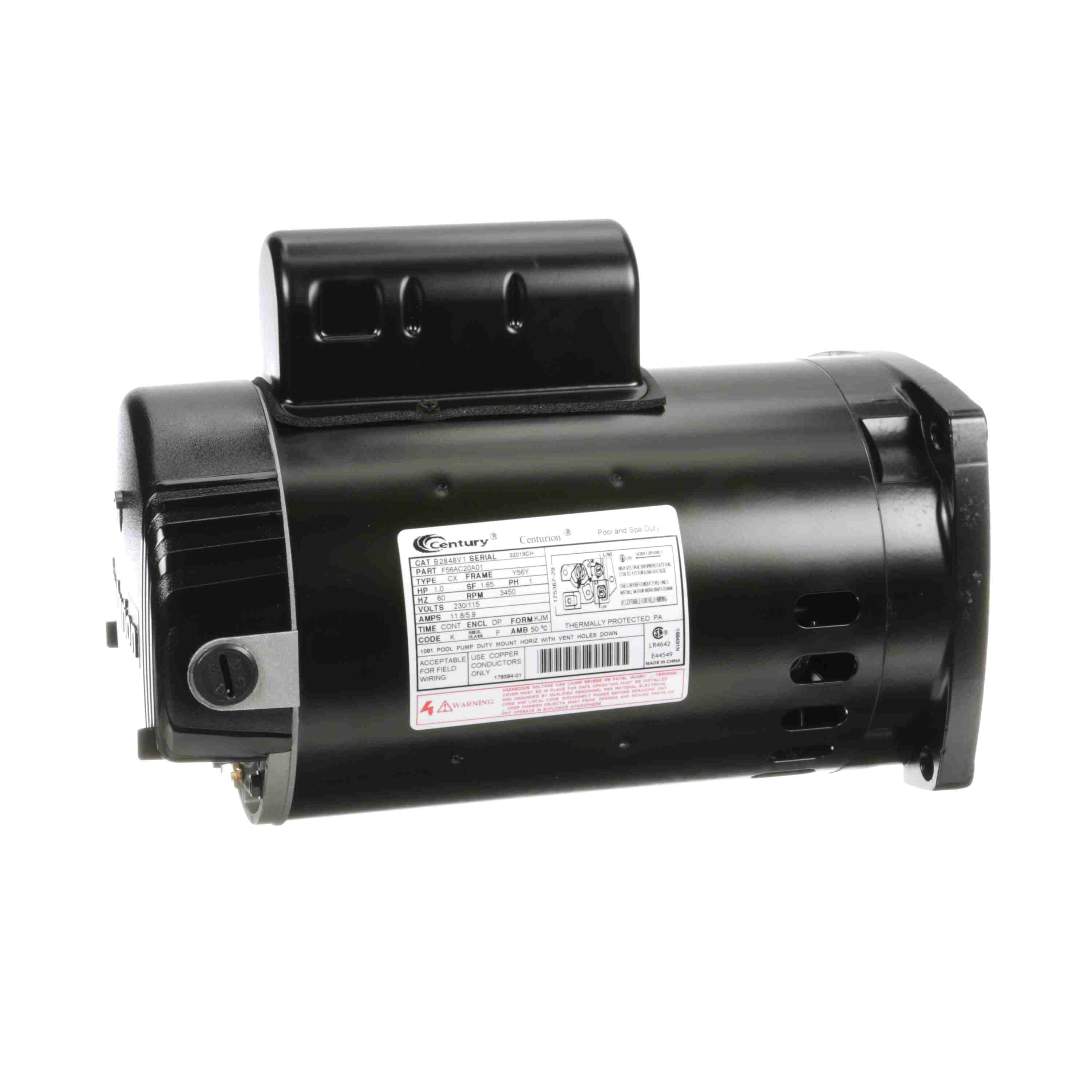

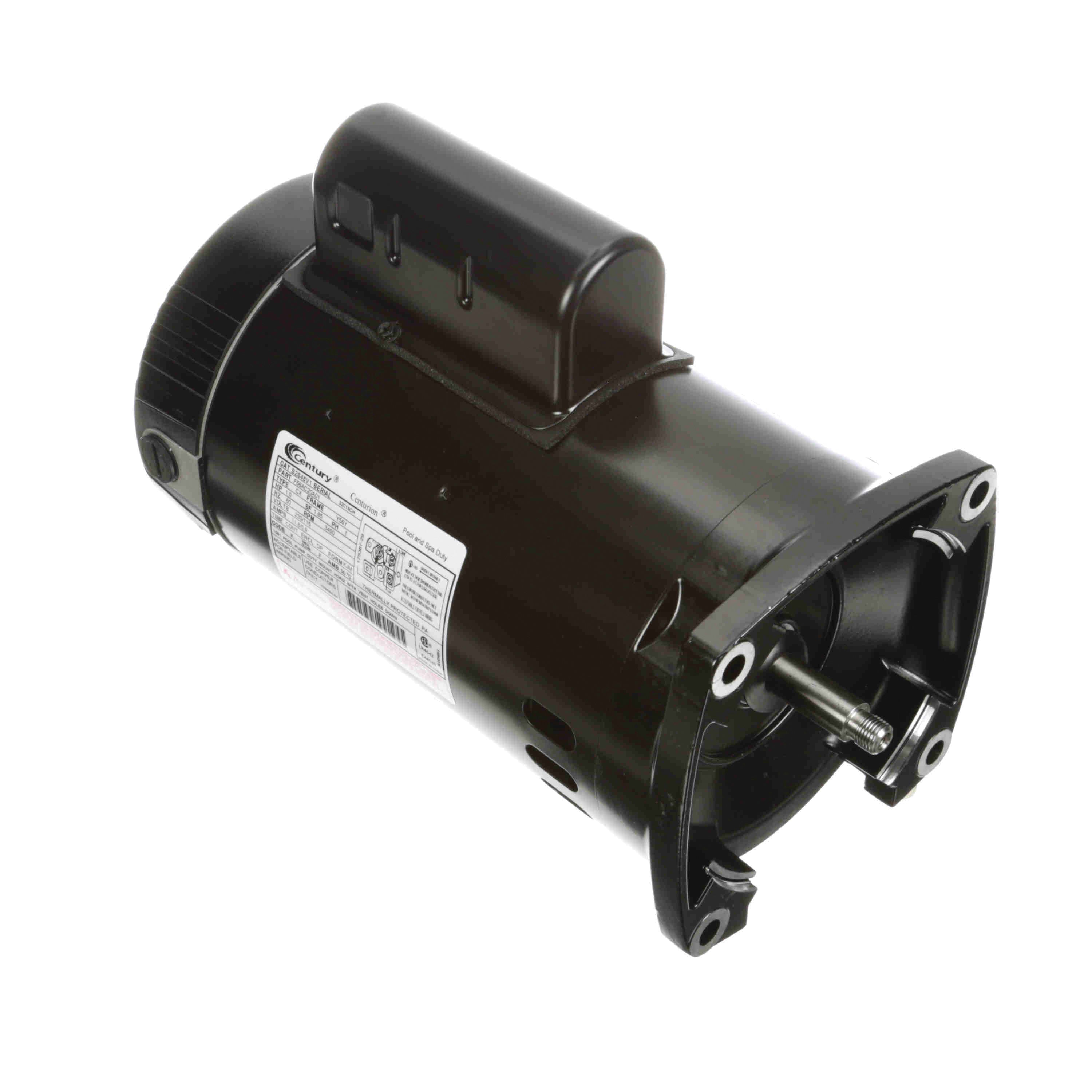

Century B2848V1 Pool Pump Motor 1HP 115/230V 56Y Frame

Product Description

The Century B2848V1 Pool Pump Motor is a 1HP single-speed motor with a 56Y frame. Designed by Century, this motor is ideal for in-ground swimming pool pumps, providing reliable performance and durability.

• Sealed ball bearings
• 50°C ambient
• Stainless steel shaft

Product Highlights

This motor features sealed ball bearings for reduced maintenance and a longer lifespan. It is designed to operate efficiently in ambient temperatures up to 50°C. The stainless steel shaft ensures strength and resistance to corrosion.

Product Information

Standard Information

• Brand: Century
• Voltage: 115/230V

Technical Specifications

• MPN: B2848V1
• Horsepower: 1 HP
• Phase: Single
• Frame: 56Y
• RPM: 3,450
• Full Load Amps: 16.0/8.0
• Shaft Diameter: 5/8 in
• Max Ambient Temp: 50°C
• Motor Bearings: Ball
• Motor Design: Permanent Split Capacitor
• Motor Service Factor: 1.65
• Motor Enclosure Design: Open Drip-proof
• Motor Shaft Rotation: CCWSE
• Motor Application: Pool
• Ins. Class: F
• Standards: UL
• Includes: 30 MFD 370VAC 50/60Hz Capacitor
• Shaft Length: 7/16 in
