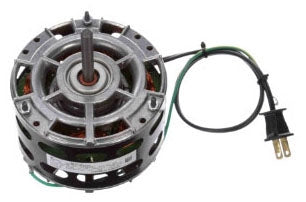

AO Smith 975 Fan and Blower Motor 1/20 HP 5 X 5.25

Product Description

The AO Smith model 975 is a fan and blower motor designed for HVAC applications. It features a power rating of 1/20 horsepower with a voltage rating of 115 volts AC and operates at a frequency of 60 hertz. This model is suitable for various roles, including as a furnace blower, attic ventilator, and air handler motor.

• Open air-over enclosure type
• Low power consumption at 2.3 amps
• Single speed rating at 1045 RPM

Product Highlights

This motor is built with a 6-pole design, NEMA frame size of 42Y, and utilizes Class B insulation for reliable operation. It is equipped with a round belly band mount and a flat shaft for easy installation.

Product Information

Standard Information

• Manufacturer: AO Smith
• UPC: 66300130882

Technical Specifications

• Power Rating: 1/20 HP
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 2.3 Amp
• Speed Rating: 1045 RPM
• Service Factor: 1
• Frame Material: Rolled Steel
• Weight: 6 Pounds
