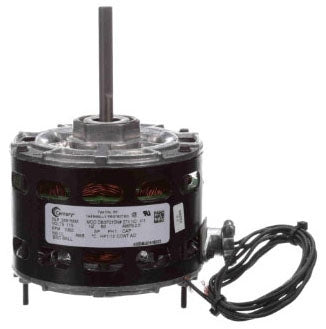

AO Smith 415 Blower Motor 1/12 HP 115 VAC Single-Speed

Product Description

The AO Smith 415 fan and blower motor is engineered for reliability in open air-over environments, providing efficient functionality with a single-speed operation. Optimally used for furnace blowers, attic ventilators, air handlers, and fan coil motors, this unit features a 115 VAC, 60 Hz, and 1-phase power configuration.

• Wide application suitability including air handlers and attic ventilators.
• Efficient 1050 RPM speed with a service factor of 1.
• Robust rolled steel frame and Class A insulation for durable use.

Product Highlights

Equipped with a flat shaft and ball bearings on both drive and opposite drive ends, it ensures a continuous and stable operation. Its shaded pole and induction run design guarantee a power-efficient performance.

Product Information

Technical Specifications

• Power Rating: 1/12 HP
• Voltage: 115 VAC
• Motor FLA: 2.5 Amp
• Speed: 1050 RPM
• Frame Size: NEMA 42
• Mounting: Extended stud, Resilient ring
• Bearings: Ball (Drive End/Opposite Drive End)
• Insulation: Class A
