Ao Smith 100223775 Pvc Common Vent Kit Cyclone 300 400 500

Product Description

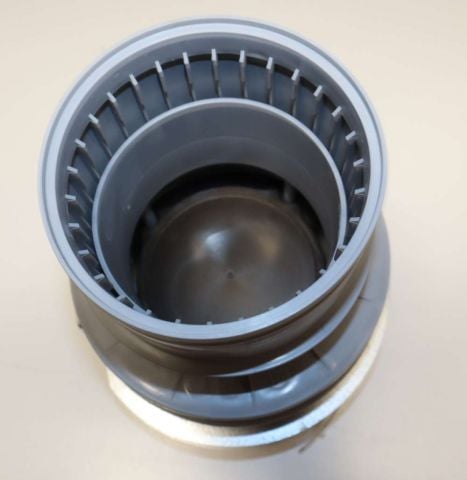

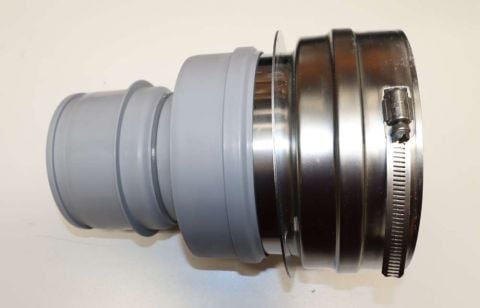

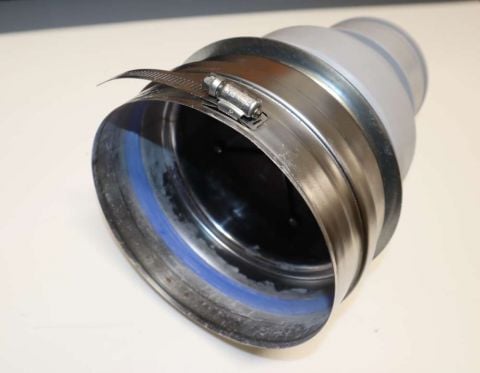

The AO SMITH 100223775 is a PVC common vent kit designed for use with Cyclone MXi condensing water heaters. Supplied by DuraVent, this kit enables two Cyclone MXi units to share a single direct vent system through a side wall horizontal termination. The kit includes a backflow preventer along with intake and exhaust adapters. Piping and wall termination components are field supplied. Each wall penetration requires a 7-inch hole through the structure. The kit is UL listed and supports a maximum equivalent vent run of 50 feet of straight pipe including elbows.

This common vent kit is intended for residential and light commercial installations where two Cyclone MXi water heaters are installed in close proximity and a shared horizontal venting configuration is preferred. The kit is approved for side wall horizontal vent applications only and is limited to direct vent configurations. One kit is required per water heater. Installers must select the appropriate material, PVC or polypropylene, based on model input size requirements.

Key Features

• UL listed for safe, code-compliant common vent installations
• Includes backflow preventer, intake adapter, and exhaust adapter
• Supports up to 50 feet maximum equivalent length of common vent pipe and elbows
• Approved for side wall horizontal vent terminations only
• Supports a maximum of two water heaters on a single common vent system
• Requires a 7-inch wall penetration at each vent termination point
• Direct vent configuration only; piping and termination are field supplied

Compatibility

Approved for use with AO SMITH Cyclone MXi 300, 400, and 500 series condensing water heaters in a direct vent, side wall horizontal configuration only.

Installation Notes

Installation should be performed by a licensed plumber or qualified water heater technician familiar with direct vent system requirements. Shut off the water heater and disconnect power or gas supply before beginning any venting work. Each wall penetration requires a 7-inch hole; verify structural clearances and local mechanical code requirements before cutting. Piping, fittings, and wall termination hardware are not included and must be sourced separately per the job design.

Technical Specifications

• Vent Configuration: Direct vent, side wall horizontal only
• Maximum Equivalent Vent Length: 50 feet (straight pipe and elbows combined)
• Wall Penetration Diameter Required: 7 inches per penetration
• Maximum Water Heaters Per Common Vent: 2
• Kits Required: One per water heater
• Kit Contents: Backflow preventer, intake adapter, exhaust adapter
• Listing: UL listed
• Compatible Models: Cyclone MXi 300, 400, 500

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: 100223775
