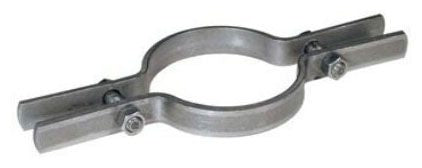

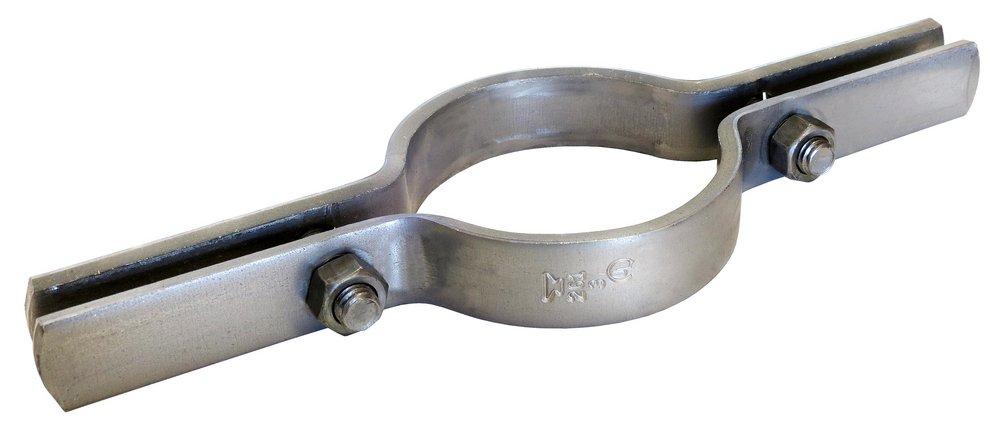

AnvilStrut 0500361126 Fig 261 6 in. Carbon Steel Riser Clamp in Black

Product Description

The AnvilStrut 0500361126 Fig 261 is a six-inch carbon steel riser clamp designed to support stationary steel pipe risers, cast iron pipe, or conduits. This clamp features a maximum temperature rating of six hundred fifty degrees Fahrenheit for plain and four hundred fifty degrees Fahrenheit for galvanized and epoxy finishes. It is essential to consider the outside diameter of the standard steel pipe when sizing the riser for different types of piping. This product complies with several standards, including Federal Specification A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69, and MSS SP-58 (Type 8). The size range for UL and ULC listings is from one and a half inches to eight inches.

• Maximum temperature rating of six hundred fifty degrees Fahrenheit
• Complies with multiple federal and industry specifications
• Supports up to one thousand six hundred pounds

Product Highlights

This riser clamp is ideal for HVAC and plumbing applications where secure support for pipes is necessary.

Product Information

Standard Information

• Manufacturer: Anvil
• Part Number: 0500361126

Technical Specifications

• Pipe Size: 6 inches
• Overall Length: fourteen and three-fourth inches
• Clamp Material: Carbon Steel
• Width: one and one-half inches
• Screw/Bolt Size: one-half inches
• Number of Screws/Bolts: 2
• Finish: Hot Dip Galvanized
• Load Rating: 1600 pounds
• Temperature Rating: 450 degrees Fahrenheit
