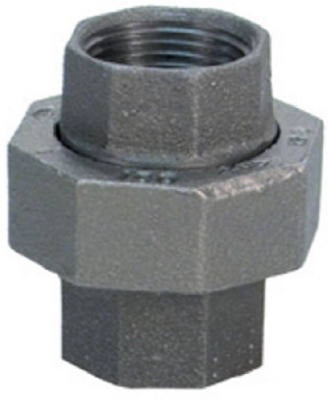

Anvil International Inc 8700163150 Black Iron Union 1-1/2 in

Product Description

The ANVIL INTERNATIONAL INC 8700163150 is a 1-1/2 inch black malleable iron ground joint union with an inserted brass seat. It is designed for threaded pipe assemblies where a secure, removable connection is required in steam, water, oil, or gas piping systems. The ground joint design provides a metal-to-metal seal at the union face, and the brass seat insert ensures a reliable seating surface over repeated make-and-break cycles. Rated for working pressures up to 150 LB steam and 300 LB cold water, oil, or gas service. Licensed plumbers and pipefitters install this fitting in commercial and industrial mechanical rooms, boiler rooms, and process piping applications.

This union is suited for black iron pipe installations in both residential and commercial settings. Common applications include steam heating distribution lines, hydronic systems, natural gas branch piping, oil supply lines, and cold water service runs. The 1-1/2 inch size fits standard Schedule 40 black iron pipe of the same nominal diameter. It is sold in packages of 15 units, making it practical for contractors stocking multiple fittings for a project.

Key Features

• Ground joint design provides a metal-to-metal seal at the union face
• Inserted brass seat ensures consistent seating performance over repeated connections
• Rated to 150 LB working pressure for steam service
• Rated to 300 LB working pressure for cold water, oil, or gas service
• Black galvanized malleable iron construction for durability in mechanical piping environments
• 1-1/2 inch nominal size fits standard threaded black iron pipe

Compatibility

Designed as an OEM-style replacement or new-install fitting for 1-1/2 inch threaded black iron pipe systems rated for steam, cold water, oil, or gas service.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the affected pipe system completely before disassembling or installing any union fitting. Apply an appropriate thread sealant or PTFE tape to all male threads per local plumbing and mechanical code requirements. For steam systems, verify that the installed pressure rating of all fittings in the line meets or exceeds system operating pressure before returning the system to service.

Technical Specifications

• Nominal Pipe Size: 1-1/2 inches
• Material: Black Galvanized Malleable Iron with Inserted Brass Seat
• Maximum Working Pressure (Steam): 150 LB
• Maximum Working Pressure (Cold Water, Oil, Gas): 300 LB
• Package Quantity: 15 EA
• Weight: 24.45 pounds

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700163150
