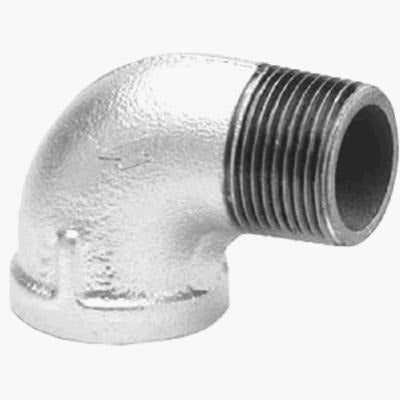

Anvil International Inc 8700127908 Galvanized Street Elbow

Product Description

The ANVIL INTERNATIONAL INC 8700127908 is a 1-1/4 inch galvanized 90-degree street elbow used to change pipe direction in threaded piping systems. One end features a male (spigot) thread and the other a female (socket) thread, allowing it to connect directly to a fitting without a separate nipple. The galvanized finish provides corrosion resistance for use in wet or exposed environments. This fitting is a standard component in residential and commercial plumbing and mechanical piping installations handled by licensed plumbers and pipefitters.

This street elbow is suited for threaded iron pipe systems in water supply, gas distribution, and general mechanical piping applications. The 90-degree turn makes it well-suited for tight spaces where a standard elbow-plus-nipple combination would not fit. It is commonly used in both new construction and retrofit work where a directional change is needed within close fitting-to-fitting clearance.

Key Features

• 90-degree turn with male spigot on one end and female socket on the other for direct fitting-to-fitting connection
• 1-1/4 inch nominal pipe size
• Galvanized finish for corrosion resistance in wet or exposed service environments
• Standard threaded ends compatible with NPT threaded pipe and fittings
• Sold in a package of 10 units per UoM

Compatibility

Designed as an OEM-style replacement and standard-stock fitting for 1-1/4 inch NPT threaded iron pipe systems in plumbing and mechanical applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters using pipe wrenches and appropriate thread sealant or PTFE tape on all male threads. Shut off and depressurize the affected pipe section before removing or installing any threaded fitting. Follow local plumbing codes and IFGC requirements for gas service applications. Do not overtighten, as this can crack the fitting or damage threads.

Technical Specifications

• Nominal Pipe Size: 1-1/4 inches
• Angle: 90 degrees
• Finish: Galvanized
• End Type: Street (male spigot x female socket)
• Package Quantity: 10 per unit of measure
• Weight: 12 pounds

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700127908
