Anvil International Inc 8700127650 Galvanized Street Elbow

Product Description

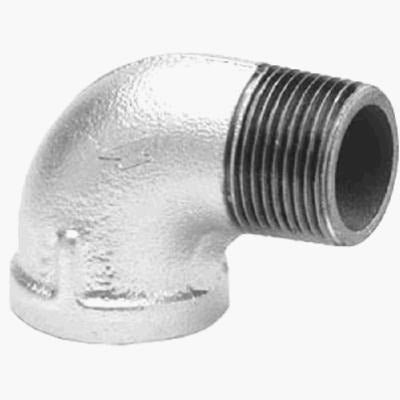

The ANVIL INTERNATIONAL INC 8700127650 is a 1/4-inch galvanized 90-degree street elbow designed for use in threaded pipe systems. A street elbow differs from a standard elbow in that one end is male-threaded and the other is female-threaded, allowing direct connection to a fitting without a nipple in between. The galvanized finish provides corrosion resistance suitable for water, air, and general plumbing service lines. This fitting is installed by licensed plumbers and pipefitters in both residential and light commercial applications where a 90-degree directional change is required in a 1/4-inch threaded line.

This street elbow is suited for threaded pipe assemblies in water supply, compressed air, and general service piping systems. The 1/4-inch size makes it appropriate for smaller branch lines and instrument connections common in plumbing and mechanical systems. It is sold in packages of 30 units, making it practical for service contractors and wholesale supply houses stocking frequently used fittings.

Key Features

• 90-degree street elbow configuration with one male and one female threaded end
• 1/4-inch nominal pipe size fits standard NPT threaded pipe and fittings
• Galvanized finish for corrosion resistance in water and air service applications
• Eliminates the need for an additional nipple at directional change points
• Packaged in quantities of 30 for efficient jobsite or shop stocking

Compatibility

Designed as an OEM-style replacement and standard fitting for 1/4-inch NPT threaded pipe systems in residential and light commercial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable IPC and local plumbing code requirements. Shut off and depressurize the line before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male threads before assembly. Do not over-torque the fitting, as this can crack galvanized fittings or damage female-threaded connections.

Technical Specifications

• Nominal Pipe Size: 1/4 inch
• Angle: 90 degrees
• Finish: Galvanized
• End Type: Street (one male NPT, one female NPT)
• Package Quantity: 30 pieces
• Weight: 3 pounds

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700127650
