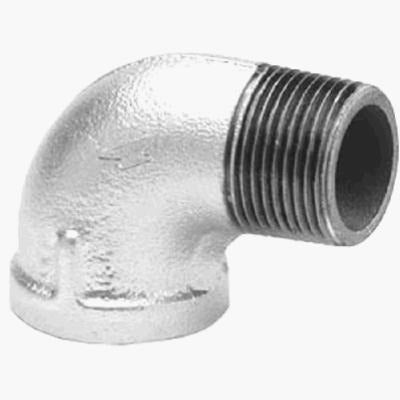

Anvil International Inc 8700127601 Galvanized Street Elbow

Product Description

The ANVIL INTERNATIONAL INC 8700127601 is a 1/8 inch galvanized 90-degree street elbow designed for threaded pipe systems. A street elbow has a male thread on one end and a female thread on the other, allowing a direct connection to a fitting or valve without a nipple in between. The galvanized steel finish provides corrosion resistance for use in water, air, and general-purpose piping applications. Plumbers and pipefitters install this fitting wherever a 90-degree directional change is needed in a small-diameter threaded line.

This fitting is suited for residential and light commercial plumbing, HVAC condensate lines, compressed air distribution, and general utility piping where 1/8 inch threaded connections are required. Its compact street configuration is particularly useful in tight spaces where a standard elbow and separate nipple would not fit. The galvanized coating makes it appropriate for exposed or semi-exposed installations where moisture is a factor.

Key Features

• 90-degree angle for directional changes in threaded pipe runs
• Street configuration with one male and one female NPT thread end
• Galvanized steel construction for corrosion resistance
• 1/8 inch pipe size for small-diameter threaded systems
• Sold as individual unit with package quantity of 40

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/8 inch NPT threaded pipe systems in plumbing, HVAC, and general-purpose piping applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter following applicable IPC and local plumbing code requirements. Shut off the water or air supply and relieve system pressure before making any threaded connections. Apply thread sealant tape or pipe dope to the male threads before assembly and hand-tighten before using a pipe wrench. Do not over-tighten small-diameter fittings, as this can crack or distort the threads.

Technical Specifications

• Pipe Size: 1/8 inch
• Angle: 90 degrees
• Fitting Type: Street Elbow
• Material: Galvanized Steel
• Weight: 2.4 pounds
• Package Quantity: 40
• Unit of Measure: EA

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700127601
