Anvil International Inc 8700127452 Black Street Elbow

Product Description

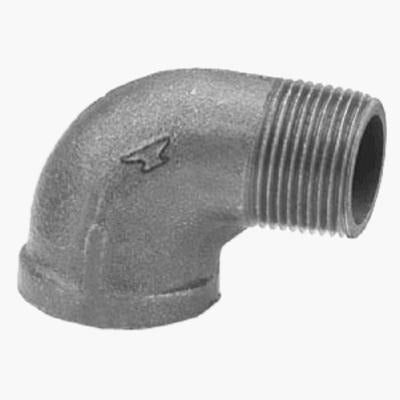

The ANVIL INTERNATIONAL INC 8700127452 is a 1-1/4 inch black malleable iron street elbow with a 90-degree turn. A street elbow differs from a standard elbow in that one end is a male thread and the other is a female thread, allowing it to thread directly into a fitting or valve without a nipple in between. This configuration saves space in tight piping runs and simplifies assembly. Licensed plumbers and pipefitters use this fitting in gas, water, and general-purpose black iron piping systems wherever a compact directional change is required.

This 1-1/4 inch street elbow is suited for residential and light commercial piping installations. Common applications include natural gas distribution lines, steam and condensate systems, and industrial process piping. The black iron finish is standard for gas service piping in accordance with typical code requirements. This package contains 10 fittings per unit of measure, making it practical for contractors stocking a truck or completing multi-outlet gas rough-ins.

Key Features

• 90-degree street elbow configuration with male and female threaded ends for direct fitting-to-fitting connections
• 1-1/4 inch nominal pipe size
• Black iron finish suitable for gas and general-purpose piping service
• Sold in a package of 10 fittings
• Compact design reduces the need for additional nipples in directional changes

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-1/4 inch NPT black iron piping systems used in gas, steam, and general-purpose plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, IFGC requirements for gas piping, and IPC provisions for water and mechanical systems. Shut off and depressurize the piping system fully before disassembling or threading new fittings. Apply an approved pipe thread sealant or PTFE tape rated for the intended service to all male threads before assembly. Do not overtighten threaded connections; hand-tight plus the appropriate number of turns with a pipe wrench is sufficient to achieve a leak-free joint.

Technical Specifications

• Nominal Pipe Size: 1-1/4 inches
• Angle: 90 degrees
• Finish: Black iron
• Package Quantity: 10 per package
• Package Weight: 11 pounds

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700127452
