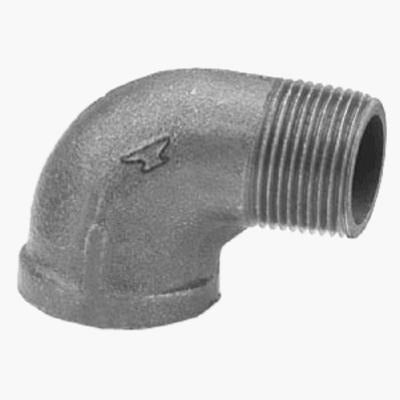

Anvil International Inc 8700127403 Black Street Elbow

Product Description

The ANVIL INTERNATIONAL INC 8700127403 is a 1-inch black malleable iron street elbow with a 90-degree bend. A street elbow differs from a standard elbow in that one end is male-threaded (MPT) and the other is female-threaded (FPT), allowing direct connection to a fitting without a nipple between them. This configuration reduces the number of fittings required in tight spaces. The part is suited for black iron gas piping systems as well as general plumbing and industrial piping applications where a directional change in the run is needed. Licensed plumbers and pipefitters are the primary installers.

This street elbow is used in residential and light commercial gas distribution piping, compressed air lines, and industrial fluid piping where a 90-degree directional change is required in a compact run. Its male-by-female thread configuration makes it particularly useful in confined spaces such as utility rooms, mechanical chases, and equipment pads where fitting-to-fitting connections save clearance. Plumbing and mechanical contractors routinely stock this fitting for service and repair work.

Key Features

• 90-degree bend for right-angle directional changes in threaded pipe runs
• Street configuration — one MPT end and one FPT end — eliminates the need for an intermediate nipple
• 1-inch nominal pipe size fits standard Schedule 40 black iron pipe threads
• Black finish is standard for gas piping applications per common mechanical codes
• Sold in packages of 15 units, suitable for stocking or job-lot purchasing

Compatibility

Designed as an OEM-style replacement and standard stock fitting for 1-inch NPT threaded black iron pipe systems in residential and commercial gas and mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with the International Fuel Gas Code (IFGC) or International Plumbing Code (IPC) as applicable. Shut off and depressurize the gas or fluid supply before disassembling any threaded connections. Apply an approved thread sealant or PTFE tape rated for the service medium to all male threads before assembly. Do not use this fitting to exceed the pressure or temperature ratings of the connected piping system.

Technical Specifications

• Pipe Size: 1 inch
• Bend Angle: 90 degrees
• Finish: Black
• Connection Type: Street (MPT x FPT)
• Package Quantity: 15 EA
• Weight: 9.75 pounds

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700127403
