Anvil International Inc 8700127353 Black Street Elbow

Product Description

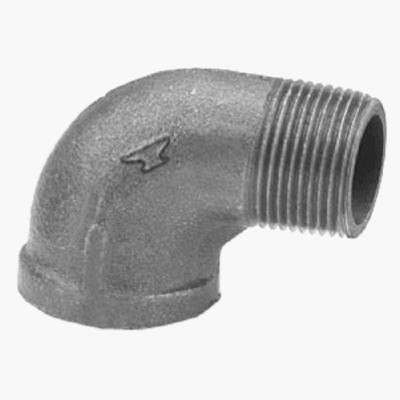

The ANVIL INTERNATIONAL INC 8700127353 is a 90-degree black street elbow in 3/4-inch size. A street elbow has one male end and one female end, allowing it to thread directly into a fitting without requiring a nipple in between. This configuration saves space in tight installations and reduces the number of fittings needed in a run. It is commonly used in gas piping, compressed air lines, and general industrial or mechanical piping systems. Licensed plumbers, pipefitters, and HVAC technicians install this type of fitting during new construction and retrofit work.

This street elbow is suited for residential and light commercial applications where a 90-degree directional change is needed in a threaded black iron piping system. Typical uses include gas supply lines to furnaces, boilers, unit heaters, and other gas-fired equipment. The black finish is standard for gas distribution piping and distinguishes it from galvanized fittings, which are not recommended for gas service in most jurisdictions.

Key Features

• 90-degree turn with one male and one female threaded end for direct fitting-to-fitting connection
• 3/4-inch size suits common residential and commercial gas and air piping runs
• Black finish appropriate for gas distribution piping per typical code requirements
• Street configuration eliminates the need for a separate close nipple in tight spaces
• Sold in a package quantity of 40 units, suitable for stocking or multi-point installations

Compatibility

Designed as an OEM-style replacement and standard-stock fitting for 3/4-inch threaded black iron piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with the International Fuel Gas Code (IFGC) or applicable local codes. Shut off and verify the absence of gas or compressed air pressure in the line before disassembling any fittings. Apply an appropriate pipe thread sealant or PTFE tape rated for the service medium to all threaded joints. Pressure-test the completed assembly before returning the system to service.

Technical Specifications

• Size: 3/4 inches
• Angle: 90 degrees
• Finish: Black
• End Type: Street (one male NPT, one female NPT)
• Package Quantity: 40 units
• Weight: 16.4 pounds (package)

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700127353
