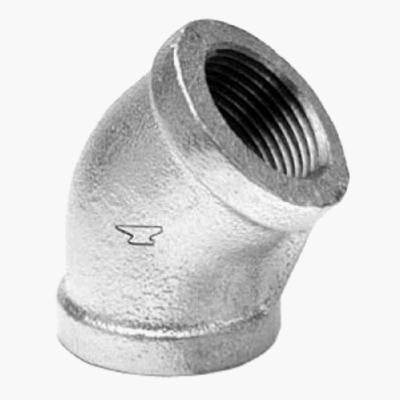

Anvil International Inc 8700126603 Galvanized 45 Degree Elbow

Product Description

The ANVIL INTERNATIONAL INC 8700126603 is a 1/2-inch galvanized malleable iron 45-degree elbow used to change pipe direction at a 45-degree angle in threaded piping systems. This fitting is commonly installed in water distribution, gas, and steam lines where a gradual directional change is required. The galvanized finish provides corrosion resistance suited to wet and exposed environments. Licensed plumbers and pipefitters install this type of fitting during new construction and retrofit work in both residential and light commercial applications.

This 45-degree elbow is appropriate for 1/2-inch threaded pipe runs in plumbing, HVAC hydronic systems, and gas distribution where a directional offset is needed. The 45-degree angle allows installers to route pipe around obstructions or transition between pipe runs without a sharp 90-degree turn, reducing pressure drop and improving flow characteristics in the line. It is sold in a package quantity of 75 units, making it well suited for contractors stocking fittings for multiple jobs or large installations.

Key Features

• 45-degree directional change for threaded 1/2-inch pipe systems
• Galvanized finish for corrosion resistance in wet and exposed environments
• Threaded connections compatible with standard NPT pipe
• Sold in a package quantity of 75 units for job-site stocking
• Suitable for water, gas, and steam line applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/2-inch NPT threaded piping systems in plumbing, HVAC, and gas distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IFGC requirements. Shut off and depressurize the pipe system completely before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to male threads before making up the joint. Do not overtighten threaded connections, as this can crack fittings or damage threads.

Technical Specifications

• Pipe Size: 1/2 inch
• Angle: 45 degrees
• Finish: Galvanized
• Package Quantity: 75 units
• Package Weight: 18 pounds
• Unit of Measure: EA

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700126603
