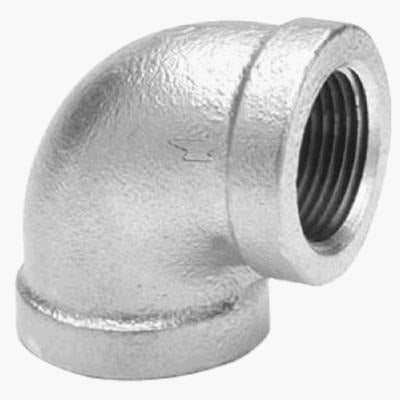

Anvil International Inc 8700124103 Galvanized 90 Degree Elbow

Product Description

The ANVIL INTERNATIONAL INC 8700124103 is a 3/8 inch galvanized 90 degree elbow designed to redirect pipe runs in plumbing, HVAC, and general piping systems. This malleable iron-style fitting changes flow direction at a right angle and is finished with a galvanized coating to resist corrosion in exposed or damp environments. Licensed plumbers and pipefitters install this fitting during rough-in and repair work wherever a 90 degree directional change is needed on a 3/8 inch line. It suits both residential and light commercial applications.

This elbow is used in residential and commercial piping installations where a 3/8 inch threaded connection must turn 90 degrees. Common applications include water supply lines, gas distribution piping, and HVAC refrigerant or condensate-adjacent plumbing. The galvanized finish makes it appropriate for installations in unconditioned spaces such as crawl spaces, mechanical rooms, and exterior utility areas where moisture exposure is a concern.

Key Features

• 90 degree turn for right-angle directional changes on 3/8 inch pipe runs
• Galvanized finish provides corrosion resistance in damp or exposed environments
• 3/8 inch nominal size fits standard threaded pipe connections
• Sold in a package quantity of 20 units per package

Compatibility

Designed as an OEM-style threaded fitting replacement for 3/8 inch pipe systems in plumbing and HVAC applications.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters using standard pipe wrenches and thread sealant or PTFE tape on all threaded connections. Shut off and depressurize the affected line before removing any existing fittings. Follow applicable codes such as the IPC or IFGC for thread engagement, sealant type, and pressure testing requirements. Do not overtighten threaded galvanized fittings, as cracking the fitting or stripping threads will compromise the joint seal.

Technical Specifications

• Size: 3/8 inches
• Angle: 90 degrees
• Finish: Galvanized
• Package Quantity: 20 units
• Weight: 3.4 pounds
• Unit of Measure: EA

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700124103
