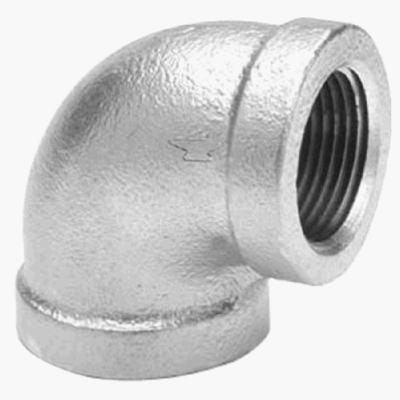

Anvil International Inc 8700124053 Galvanized 90 Degree Elbow

Product Description

The ANVIL INTERNATIONAL INC 8700124053 is a galvanized malleable iron 90 degree elbow in a 0.25 inch nominal pipe size. It is used to change the direction of a piping run at a right angle, redirecting flow cleanly within a threaded pipe system. The galvanized finish provides corrosion resistance suited to water, gas, and general-purpose piping applications. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers of this type of fitting.

This 90 degree elbow is appropriate for residential and light commercial piping installations where threaded galvanized pipe is specified. Common applications include potable water distribution, natural gas and propane supply lines, compressed air systems, and general mechanical piping. The 0.25 inch size fits small-diameter branch lines and service connections typical in both new construction and retrofit projects.

Key Features

• 90 degree elbow configuration for right-angle directional changes in threaded pipe runs
• 0.25 inch nominal pipe size suits small-diameter branch and service line applications
• Galvanized finish provides corrosion resistance for water, gas, and air service
• Threaded end connections compatible with standard NPT pipe and fittings
• Sold in a package quantity of 25 units per order unit

Compatibility

Designed as an OEM-style replacement and standard-stock fitting for threaded galvanized pipe systems using 0.25 inch nominal pipe size connections.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters working with threaded galvanized pipe systems. Shut off the water, gas, or air supply and relieve system pressure before disassembling any portion of the piping. Apply an appropriate thread sealant or PTFE tape to all male threads before assembly, and tighten fittings with pipe wrenches to a secure, leak-free connection without over-torquing. Work must comply with applicable local plumbing and mechanical codes, including the International Plumbing Code where adopted.

Technical Specifications

• Nominal Pipe Size: 0.25 inch
• Angle: 90 degrees
• Finish: Galvanized
• Package Quantity: 25 units
• Weight: 3.25 pounds

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700124053
