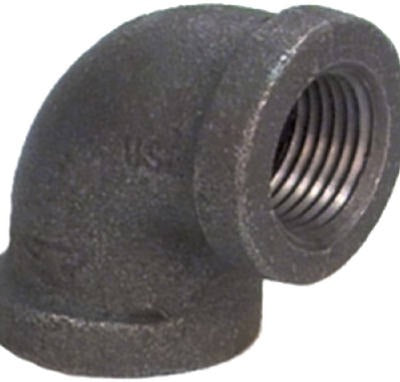

Anvil International Inc 8700123857 Black 90 Degree Elbow

Product Description

The ANVIL INTERNATIONAL INC 8700123857 is a 1-1/4 inch black 90 degree pipe elbow used to change flow direction in threaded piping systems. This fitting is a standard malleable iron or black steel elbow suited for gas distribution, steam, and water piping runs in commercial and residential applications. It ships in a package quantity of 12 units. Plumbers, pipefitters, and mechanical contractors install this fitting as part of threaded black iron pipe assemblies where a right-angle directional change is required.

This 90 degree elbow is used in gas piping, low-pressure steam, and general industrial piping systems. It is appropriate for both new construction and retrofit applications where a 1-1/4 inch threaded fitting is needed to redirect pipe runs at a right angle. Package quantity of 12 makes it practical for stocking on service vehicles or job sites requiring multiple fittings.

Key Features

• 90 degree elbow configuration for right-angle pipe direction changes
• 1-1/4 inch nominal pipe size with standard threaded connections
• Black finish suitable for gas and steam piping systems
• Sold in package quantities of 12 units per package
• Compatible with standard NPT threaded black iron pipe assemblies

Compatibility

Designed as an OEM-style fitting for use with 1-1/4 inch nominal threaded black iron pipe systems in gas, steam, and general mechanical piping installations.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters in accordance with applicable codes such as the IFGC for gas applications or the IPC for water and steam systems. Shut off gas supply or drain and depressurize the piping system before beginning any fitting work. Apply appropriate thread sealant rated for the service type before threading fittings together. Do not overtighten threaded connections, as this can crack fittings or damage threads.

Technical Specifications

• Nominal Pipe Size: 1-1/4 inches
• Fitting Angle: 90 degrees
• Finish: Black
• Package Quantity: 12 units
• Package Weight: 12.6 pounds
• Unit of Measure: EA

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700123857
