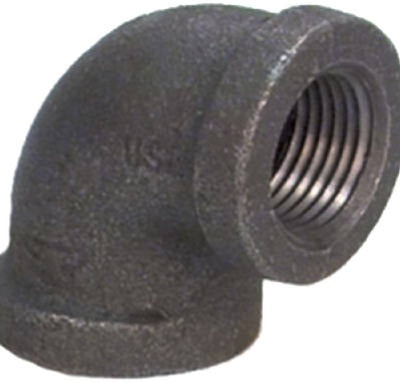

Anvil International Inc 8700123808 90 Degree Elbow 1 Inch

Product Description

The ANVIL INTERNATIONAL INC 8700123808 is a 1-inch black malleable iron 90 degree elbow fitting used to change pipe direction in threaded piping systems. This elbow creates a perpendicular turn in black iron pipe runs, making it a standard component in gas distribution, steam, and hydronic heating systems. The fitting uses threaded connections on both ends and is sized at 1 inch nominal pipe size. Plumbers, pipefitters, and mechanical contractors install this type of elbow where a right-angle direction change is required in a piping layout.

This 90 degree elbow is suited for residential and light commercial applications including natural gas and propane supply lines, steam piping, and compressed air distribution. It is a common stock fitting on service vehicles and in mechanical rooms where black iron pipe systems are maintained or extended. The fitting ships in packages of 20 units, making it practical for contractors stocking jobsite material.

Key Features

• 90 degree turn for perpendicular direction changes in threaded pipe runs
• 1 inch nominal pipe size with standard threaded end connections
• Black iron finish suitable for gas, steam, and air service
• Malleable iron construction provides strength and resistance to impact in threaded assembly
• Sold in a package quantity of 20 units for jobsite and shop stocking

Compatibility

Designed as a standard threaded fitting for use with 1 inch nominal black iron pipe in gas, steam, hydronic, and compressed air piping systems following NPT thread standards.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter in accordance with applicable mechanical and fuel gas codes, including IFGC and local amendments. Shut off and depressurize the pipe system completely before disassembling any threaded connections. Apply an appropriate thread sealant or tape rated for the intended service medium before making up the joint. Do not over-tighten threaded fittings, as malleable iron threads can be damaged by excessive force.

Technical Specifications

• Pipe Size: 1 inch nominal
• Fitting Angle: 90 degrees
• Finish: Black
• Connection Type: Threaded (NPT)
• Package Quantity: 20 units
• Package Weight: 14.6 pounds
• Unit of Measure: EA

Standard Information

• Brand: ANVIL INTERNATIONAL INC
• Manufacturer Part Number: 8700123808
