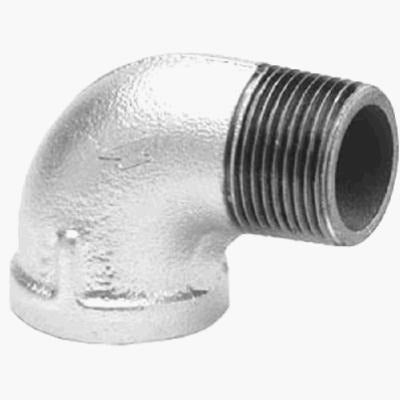

Anvil International 8700127759 Galvanized Street Elbow

Product Description

The Anvil International 8700127759 is a 1/2-inch galvanized 90-degree street elbow used to change flow direction in threaded pipe assemblies. One end accepts a male-threaded pipe or fitting, while the opposite end provides a female thread, allowing a direct connection without an additional nipple. Galvanized steel construction resists corrosion in moderate-moisture environments. Plumbers, pipefitters, and mechanical contractors use this type of fitting in water distribution, gas service, and general industrial piping where a compact directional change is required.

This street elbow is suited for residential and light commercial pipe systems where a 90-degree turn in a 1/2-inch threaded line is needed. Typical applications include branch connections in potable water supply, hydronic heating distribution, and compressed-air lines. The galvanized finish makes it appropriate for installations subject to ambient humidity or incidental moisture exposure. It is sold individually and is also available in a package quantity of 75 units, making it practical for contractor bulk purchases.

Key Features

• 90-degree street elbow configuration eliminates the need for an extra nipple at direction changes
• 1/2-inch nominal pipe size fits standard NPT threaded pipe and fittings
• Galvanized steel finish provides corrosion resistance in moisture-prone environments
• Male-inlet and female-outlet design for direct in-line installation
• Available in bulk packaging of 75 units per package for high-volume jobs

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 1/2-inch NPT threaded pipe systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and IFGC code requirements for the service type. Shut off and depressurize the line before removing or installing any threaded fitting. Apply an approved thread sealant or PTFE tape to male threads before assembly and hand-tighten before bringing to final torque with pipe wrenches. Do not over-tighten galvanized fittings, as excess force can crack the fitting body.

Technical Specifications

• Nominal Pipe Size: 0.5 inches
• Angle: 90 degrees
• Fitting Type: Street Elbow
• Material: Galvanized Steel
• Weight: 7.5 pounds (per package of 75)
• Package Quantity: 75 each

Standard Information

• Brand: Anvil International
• Manufacturer Part Number: 8700127759
