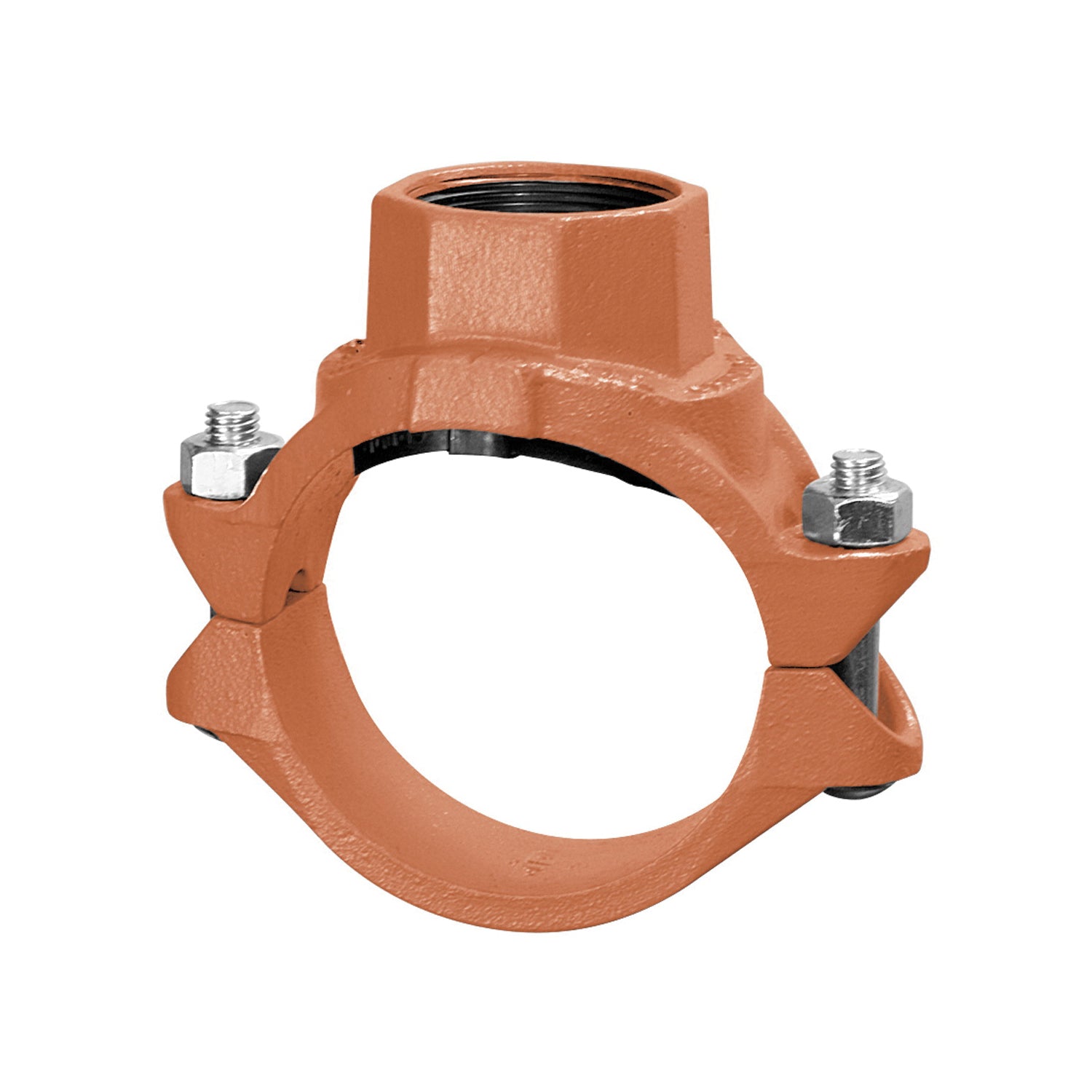

Gruvlok 0390171163 Clamp-T Branch Outlet 3 x 1-1/2 in FNPT Connection

Product Description

The Gruvlok Clamp-T Branch Outlet, model number 0390171163, is a reliable solution designed for quick branch connections in piping systems. This product, made by Gruvlok, features a nominal size of three inches by one and a half inches and FNPT connection. The clamp is constructed from ductile iron with a rust inhibiting paint finish, ensuring durability and longevity in various applications.

• Suitable for water service and various chemical solutions
• Operating pressure rating of 500 psi and temperature range of -40 to 230 degrees Fahrenheit
• Includes Grade E EPDM gasket for a secure seal

Product Highlights

Ideal for installation in fire protection systems, this Clamp-T branch outlet allows for easy access for maintenance and adjustments.

Product Information

Standard Information

• Manufacturer: Gruvlok
• Part Number: 0390171163

Technical Specifications

• Material: Ductile Iron
• Connection Type: FNPT
• Dimensions: Six and seven-eighths inches width by three and three-quarter inches thick
• Pressure Rating: 500 psi
• Temperature Rating: -40 to 230 degrees Fahrenheit
• Gasket Material: Grade E EPDM
• Finish: Rust Inhibiting Painted
• Approval Standards: cULus Listed, FM Approved, NSF/ANSI 61
