ANVIL FIG.1018 Blind Flange Cast Iron 3 in

Product Description

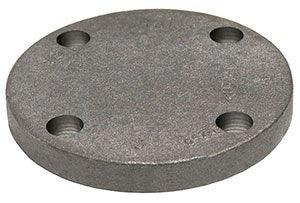

The ANVIL FIG.1018 is a Class 125 blind flange designed to meet American National Standard ASME B16.1. This fitting features a connection size of three inches and is made from durable cast iron. It has a diameter of seven and one-half inches and a flange thickness of three-quarters of an inch, making it suitable for various applications.

• Manufactured to ASME B16.1 specifications
• Constructed from strong cast iron
• Ideal for multiple industrial applications

Product Highlights

Product Information

Standard Information

• Connection Size: 3 in
• Pressure Class: 125 lb

Technical Specifications

• Dimension Standards: ASME B16.1
• Dimensions: 7-1/2 in Dia x 3/4 in THK
• Fitting Type: Flange
• Flange Thickness: 3/4 in
• Material Construction: Cast Iron
• Material: Iron
• Pressure Rating: 200 psi
• Series: FIG 1018 Series
• Temperature Rating: -20 to 450 deg F
