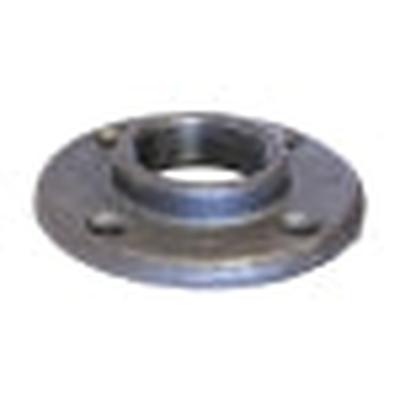

ANVIL D.NMFF Floor Flange 1/2 in

Product Description

The ANVIL D.NMFF Floor Flange is a reliable and durable fitting designed for various plumbing applications. This floor flange provides a strong connection for pipes with a nominal size of one half inch. It is made from malleable iron and is galvanized to resist corrosion.

• Nominal Size: 1/2 inch
• Pressure Rating: 300 PSI
• Temperature Range: -20 to 350 degrees Fahrenheit

Product Highlights

This product is ideal for connecting pipes in both domestic and commercial plumbing systems. Its sturdy design allows for stability and integrity in various environments.

Product Information

Standard Information

• Material: Malleable Iron
• Finish: Galvanized

Technical Specifications

• Nominal Size: 1/2 inch
• Bolt Circle Diameter: 2-1/2 inches
• Bolt Hole Size: 1/4 inch
• Number of Bolt Holes: 4
• Outside Diameter: 3-1/2 inches
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 350 degrees Fahrenheit
