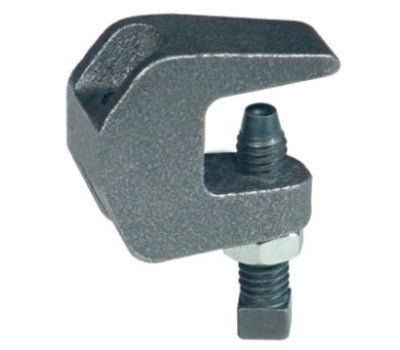

ANVIL 560009078 1/2 in. Ductile Iron Universal C-Type Beam Clamp

Product Description

The ANVIL brand presents the MPN 560009078, a 1/2 inch ductile iron universal C-type beam clamp. This clamp is suitable for various applications, particularly under roof installations with bar-joist construction. It features a cup-point set screw and locknut for secure attachment.

• Constructed from durable ductile iron.
• Compatible with both top and bottom beam positions.
• Adjustable for varied installation needs.

Product Highlights

This beam clamp is designed for reliable installation in structural settings.

Product Information

Standard Information

• Brand: ANVIL - ASC ENGINEERED SOLUTIONS
• Minimum Order Quantity: 1 Each

Technical Specifications

• Material: Ductile iron
• Set Screw Type: 1/2 inch, hardened steel cup point
• Recommended Set Screw Torque: Per MSS-SP-69
• Compatibility: Bar-joist-type construction
• Adjustment Feature: Through tapping of body casting
• Seismic Application: Can use Fig 89X retaining clip
