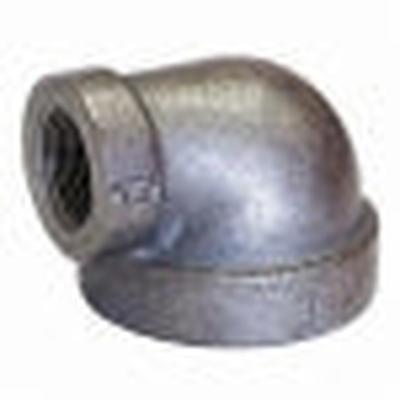

Anvil 4X2.BCL 4 x 2 in Nominal 90 Degree Reducing Elbow

Product Description

The Anvil 4X2.BCL is a cast iron pipe reducing elbow designed for plumbing applications. This elbow features a nominal size of four inches by two inches and a FNPT end style, suitable for various angles. It is a part of the FIG 352 series and is built to handle a pressure class of one hundred twenty-five pounds.

• Pipe reducing elbow with a nominal size of four inches by two inches
• Constructed from durable cast iron with a black oxide finish
• Temperature rated between negative twenty to one hundred fifty degrees Fahrenheit

Product Highlights

This elbow fitting is ideal for connecting pipes at a 90-degree angle, offering reliability in domestic plumbing systems.

Product Information

Standard Information

• Brand: Anvil
• Material: Cast Iron

Technical Specifications

• End Style: FNPT
• Pressure Class: 125 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 deg F
• Fitting/Connector Type: 90 deg Elbow
• Series: FIG 352
• Length: 5.8 inches
• Width: 5.8 inches
• Height: 4 inches
