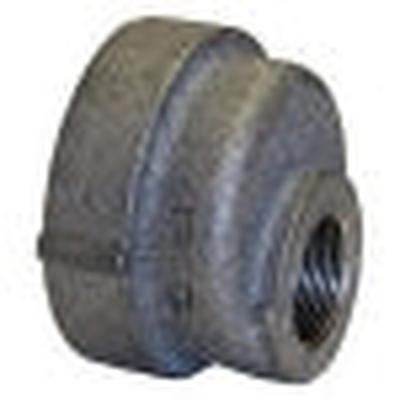

ANVIL 4X1B.BER Eccentric Reducer 4 x 1-1/4 in Nominal 125 lb

Product Description

The ANVIL 4X1B.BER is a reliable eccentric reducer designed for various piping applications. This fitting is made from high-quality cast iron and is capable of handling pressures up to 175 psi, making it suitable for residential and commercial use. With a nominal size of four inches by one and one-quarter inches, it fits seamlessly into pipe systems.

• Nominal size: 4 x 1-1/4 inches
• Pressure class: 125 lb
• Operating temperature: -20 to 150 degrees Fahrenheit

Product Highlights

This eccentric reducer is part of the FIG 368 series and features FNPT end styles. It is ideal for applications requiring a change in pipe diameter without compromising flow.

Product Information

Standard Information

• Brand: ANVIL
• Material: Cast Iron

Technical Specifications

• End Style: FNPT
• Length: 2-3/4 inches
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Series: FIG 368
• Finish: Black Oxide
